Summary of Contents for NAMCO BONGO MONKEY

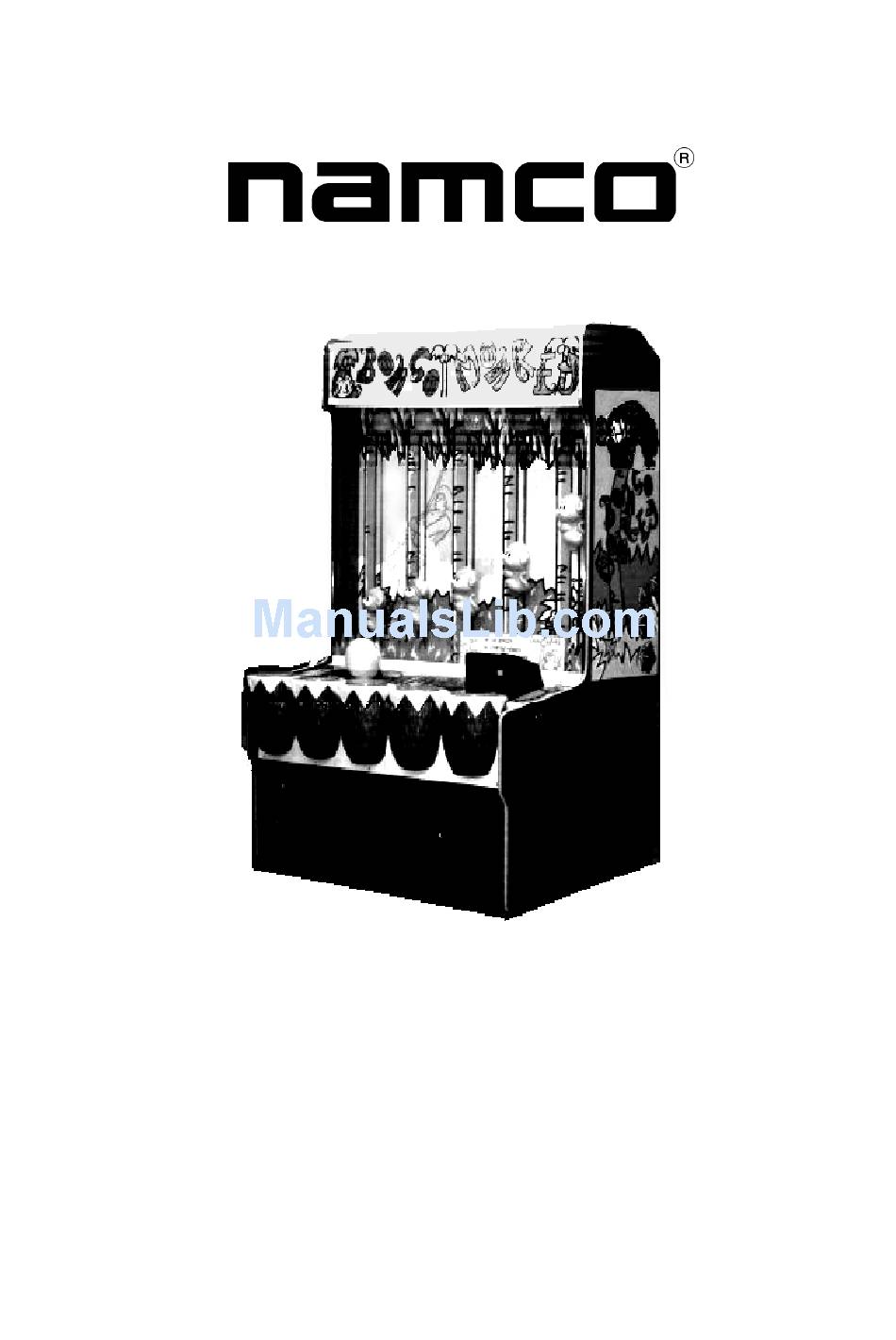

- Page 1 ™ BONGO MONKEY Operators Manual...
-
Page 2: Specifications
1. SPECIFICATIONS POWER SUPPLY :- 220/240volts AC TICKET DISPENSER :- Coin Controls type C2000 DIMENSIONS :- 1205(w) x 895(d) x 1900(h) WEIGHT :- 160kg. ACCESSORIES :- Keys: (Cash Door) .........2 (Coin Assy) .........2 (Dispenser Door) ........2 (Back Door) .........2ea Operators Manual ..........1 IEC mains Lead .............1 Page... - Page 3 2. PRECAUTIONS 2-1 Cautions When Installing. This game is designed for indoor use only. The game must not be installed outdoors or under the following conditions:- In areas directly exposed to sunlight, high humidity, direct water contact, dust, high heat or extreme cold. In locations that would present an obstacle in the case of an emergency, ie.
-
Page 4: Major Components
3. MAJOR COMPONENTS Coconut assy Monkey Assy Coin Assy Credit Display Score Displays Bongo Assy Cash Box Ticket Speakers Dispenser Monkey Drive Assy Power Supply PCB Assy Mains In Page... -
Page 5: How To Play
4. HOW TO PLAY. • Insert coins to establish credit then press the credit dispense button once to start the game. • Use the mallet to hit the bongo drum, in front of the monkey that moves, to stop the monkey climbing the tree. Hitting the bongo once will stop the monkey climbing, hitting the bongo repeatedly will cause the monkey to fall part of the way back down the tree. - Page 6 5-1 Price of Play The price of play is adjusted with the switches on the Credit Dispense Board. SWITCH BANK 1 (8 way) 100p BONUS STANDARD PRICE OF PLAY SW8 SW7 SW6 Bonus Credits Price per Credit 100p 105p 110p 115p 120p 125p...
-
Page 7: Option Switches
5-2 Option Switches FUNCTION DESCRIPTION SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 GAME EASY DIFFICULTY HARD ATTRACT MODE TEST TEST OFF MODE TEST ON TICKET ON 1 TICKET CREDIT NO TICKET 2 TICKETS AT 25 POINTS 2 TICKETS AT 30 POINTS 3 TICKETS AT 35 POINTS 3 TICKETS AT 40 POINTS 4 TICKETS AT 50 POINTS... - Page 8 Test 1 All score/high score display segments are flashing. Test 2 All controlled lamps will be illuminated. Test 3 The monkey lift motors will travel to the top and then to the bottom in sequence. Test 4 All the monkey swing motors will operate. Test 5 Each time bongo five is operated the next sound will be activated.
- Page 9 6. PARTS CABINET DESCRIPTION PART No Fluorescent Lamp Diffuser 45000003 Fluorescent Tube 33" 64500024 Top Flash Perspex 30000013 Front Perspex 39000016 Coconut Lamp Cover 45000004 Coconut Lamp 12v 3w Wedge 64000034 Play Panel Perspex 33000008 Speaker Grille 45000009 Loudspeaker 4 1/2" 20 watt 62000006 Credit Dispense Board 81000111...
- Page 10 DRUM ASSY DESCRIPTION PART No Bongo Top Vac-Form 45000020 Black Sponge - 80 x 80 x 20 45000021 Black Sponge - Round 45000022 Black Sponge - 50 x 30 x 25 45000024 Rubber Washer M8 45000025 Coil Spring 45000028 Micro Switch 45000030 MONKEY DRIVE &...
- Page 11 7. SCHEMATIC Page...
- Page 12 Page...
