Logitech SMARTDOCK FLEX User Manual page 13

19
English

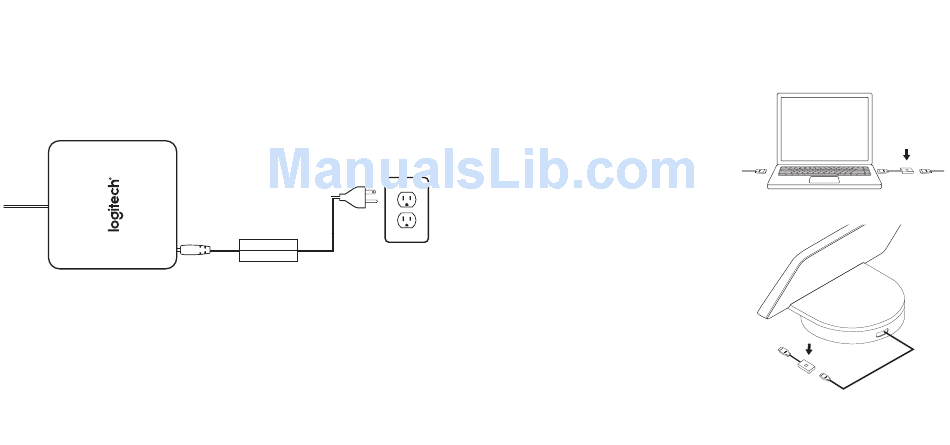

Connect power to the SmartDock Flex
Extender Box.
24
20
English
Connect AV Pass Through adapter to
HDMI cable end (optional)
Normal content sharing with Skype
Rooom System: Connect the HDMI
cable with AV Passthrough adaptor to
the display output of your laptop.
Using AV Pass Through:
- Connect the HDMI Cable with AV
PassThrough adaptor to the display
output of your laptop.
- Connect the USB cable to your laptop.
- Press the button on the AV Passthrough
Adaptor.
- Launch your meeting on your laptop,
and use the Audio, Video and Display
resources of the room.
- When done, simply disconnect the
USB and HDMI from your laptop, and all
of the devices revert back to the Skype
Room System, ready for the next person.
