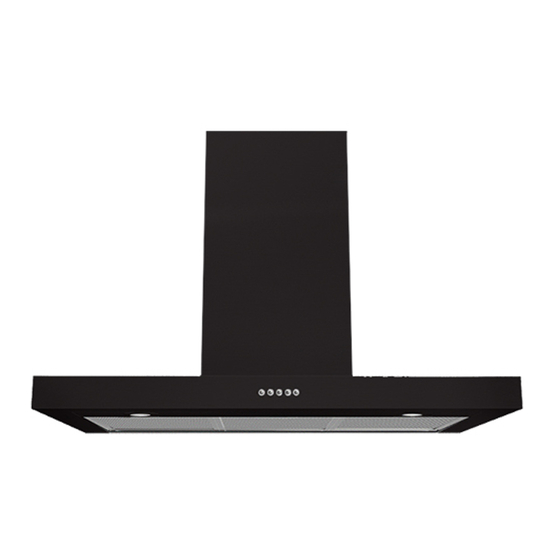

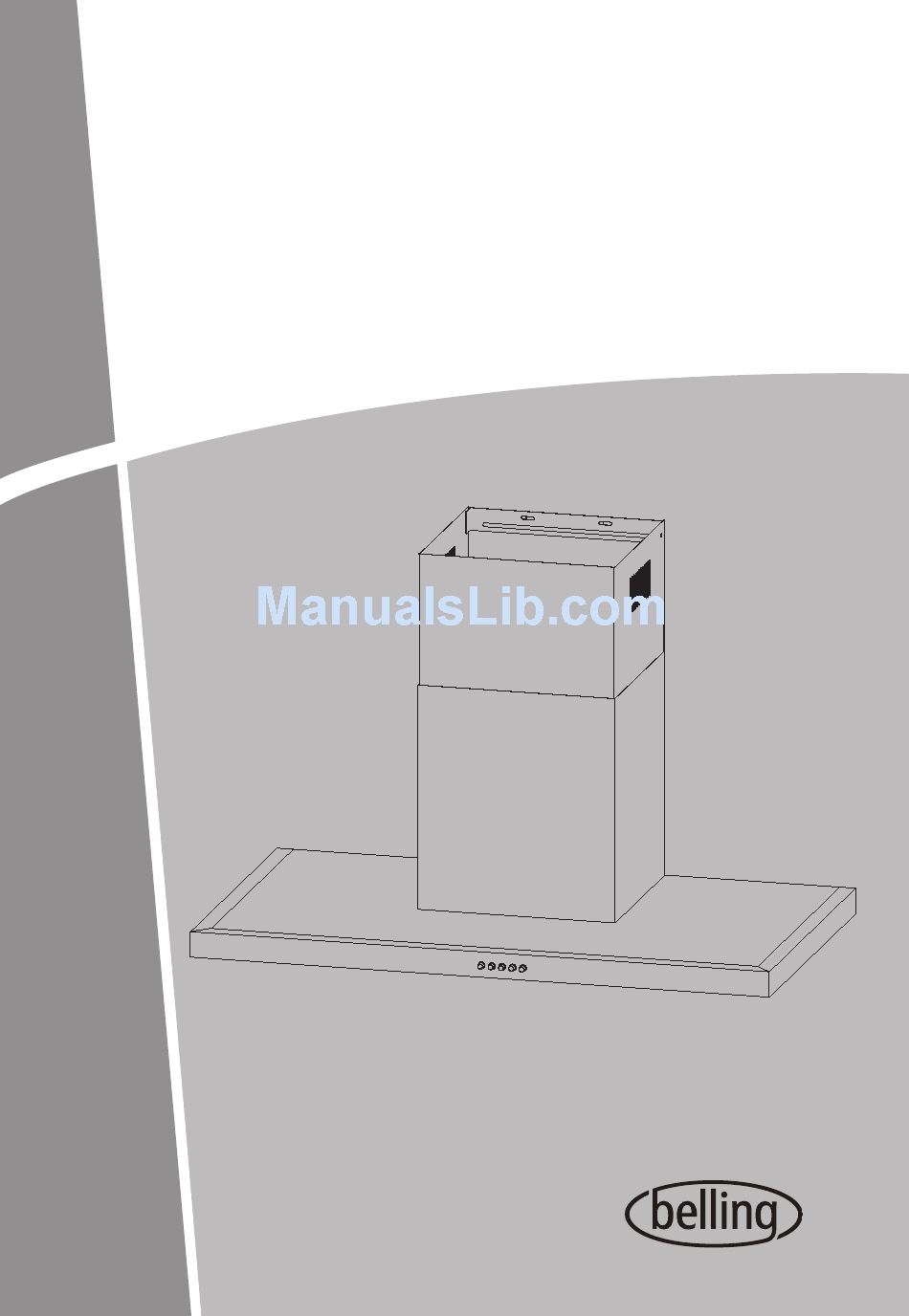

- Page 1 Flat Canopy Rangehood INSTRUCT ON MANUAL Read this manual carefully before operation Pictures in this manual are for reference only. For Models: BL90B / BL90S...
-
Page 2: Table Of Contents
Contents Contents Contents..............Warnings..............Safety Warning............Installation.............. Use..............Maintenance............Trouble Shooting..........Specifications............Disposal.............. -
Page 3: Contents
Contents Warnings This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Safety Warning
Safety Warning The appliance is not intended for use by young children or infirm persons without supervisions. Young children should be supervised to ensure they do not play with the appliance. Plug the power cord to socket outlet with earthing continuity terminal. ... - Page 5 Notice of Installation It can not share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. There will be hazard of underpressure, combustion impaired and harmful gases drawn back. The bending of ventilation tube should be ≥120°,parallel or above the start point/should be connected to the external wall.
- Page 6 Fig.2 1 x Installation plate 7 x Plastic expansion pipes 2 x Chimney installation plates 7 x Screws(ST5*50) 6 x Screws(ST4.2*9.5) Fig.3...
-
Page 7: Installation
Installation Accessories. See Fig.3. (Type and quantity of accessories is subject to actual demand.) Fix installation plate and extension chim ney installation plate, install the plastic expansion pipes of chimney installation plate on wall. See Fig.4. Fix the exhaust pipe and chimney on the main body, connect chimney installation plate and chimney. -
Page 8: Use
Fig.6 Fig.7 Stop High Light Fig.8 Fig.9.1 Speed adjustment. See Fig.9.1. (For some models) Press Stop button, the motor will stop running. Press the Low (speed) button, the motor runs at low speed. Press the Mid (speed) button, the motor runs at mid speed. ... -
Page 9: Maintenance
Maintenance Contents Cleaning of the filters Removing the filters according to Fig.10. Put into a dishwasher with detergent, set the temperature below 60 degrees. Please do not use abrasive detergent for it will damage the hood. Make sure that the hood is shut off before cleaning. Fig.10 Fig.11 Replacement of the carbon filters (... -
Page 10: Trouble Shooting
Trouble Shooting Fault The blades are blocked. The capacitor is damaged. Replace capacitor. Light on, but motor The motor is damaged. Replace motor. does not work. The internal wiring of motor is cut off / disconnected. An unpleaseant smell Replace motor. may be produced. -
Page 11: Disposal
Main Parameters 220-240V~50Hz Voltage Rated Power 333W Lighting Power 2 X 1.5W 330W Motor Power 150mm Diameter of air tube 800m /h Airflow ≤ 74dB Noise The air flow parameter is tested under conditions of 230V 50Hz when the voltage is 220-240V 50Hz and without carbon filters. Max Power Voltage Picture... - Page 12 Glen Dimplex Australia Pty Ltd 1340 Fertree Gully Road Scoresby Vic 3179 Customer Care 1 800 444 357 Web: www.belling.com.au Glen Dimplex New Zealand 38 Harris Rd East Tamaki Auckland 2013 Customer Care 09 274 8265 Web: www.belling.co.nz No.6 YongAn Road, Beijiao, Shunde, Foshan, Guangdong, China...
