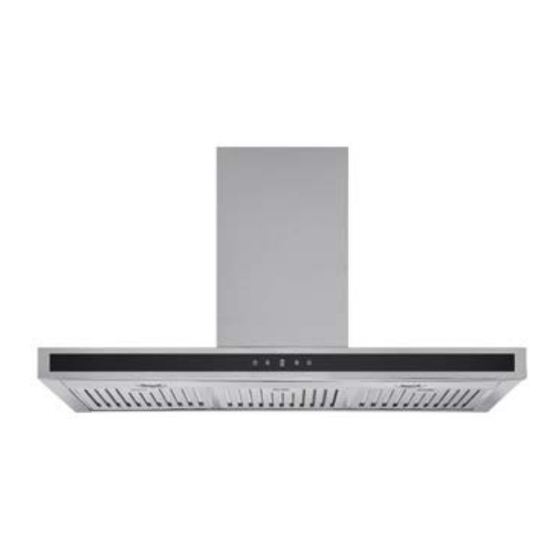

- Page 1 Cooker Hood Instruction Manual BRHCF9BLS BRHCF9BLB BRHCF6BLB...
-
Page 2: Table Of Contents
Content Safety instructions Installation Start using your cooker hood Troubleshooting Maintenance and cleaning Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. These instructions shall also be available in an alternative format, e.g. - Page 4 ● arning: Before obtaining access to terminals, all supply circuits must be Always to do: disconnected. ● aution: The appliance and its accessible Always to do: parts can become hot during operation. ● lways put lids on pots and pans when Be careful to avoid touching the heating cooking on a gas cooker.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.The images only show an example of how to mount the V-flap,the outlet may be various according to different models and configuration. - Page 6 1. Before installation, turn the unit off and unplug it from the outlet. 2. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect. 3. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.
- Page 7 5. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted freely. Afterwards, install the chimney on the cooker hood.See Pic4. 6. Put the cooker hood on the hook. See Pic 5. 5.
- Page 8 Note: The two safety vents are positioned on the back housing, with diameter of 6mm. HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: • Keep expansion pipe short and straight. • Do not reduce the size or restrict expansion pipe. •...
- Page 9 WARNING: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 10: Start Using Your Cooker Hood
Start Using Your Cooker Hood Touch control with LED display 1. Press the “Power” button, the button control the “on” & “off ” of the hood. 2. Keep pressing the button “Speed”, the motor runs as low / mid / high / low / mid…, and the LED display will indicate as 1-2-3-1-2…... -
Page 11: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor does Fan switch failed Contact service center. not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work, Refit cord to power outlet. -
Page 12: Maintenance And Cleaning
MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. • External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage. - Page 13 GREASE MESH FILTERS The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it .
- Page 14 NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lowered. LAMP REPLACEMENT 1. Switch the unit off and pull out the plug first. 2.
- Page 15 The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
-
Page 16: Environment Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste. It should be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.
