Sunrise Medical Quickie Q7ME Quick Start Manual

Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at +1 (800) 333-4000.
Parts required:
For Tilt
For Tilt/Lift
Combo
Decal 1
Black Qty-1
1A
1B
DEALER/TECHNICIAN WARNING
Attention dealers and qualified technicians, do not operate or service this device without first reading the owners manual. If you do not
understand the instructions and warnings in the owners manual please contact the Quickie Technical Service Department before
operating and/or servicing the Quickie device. Failure to do so may result in damage and/or injury.
Find more information and important warnings see the wheelchair owner's manual or at: www.Sunrisemedical.com.
Sunrise Medical 2842 N. Business Park Ave Fresno, CA 93727 USA
Decal 2 Decal 3 Yellow Qty-1
Black Qty-1

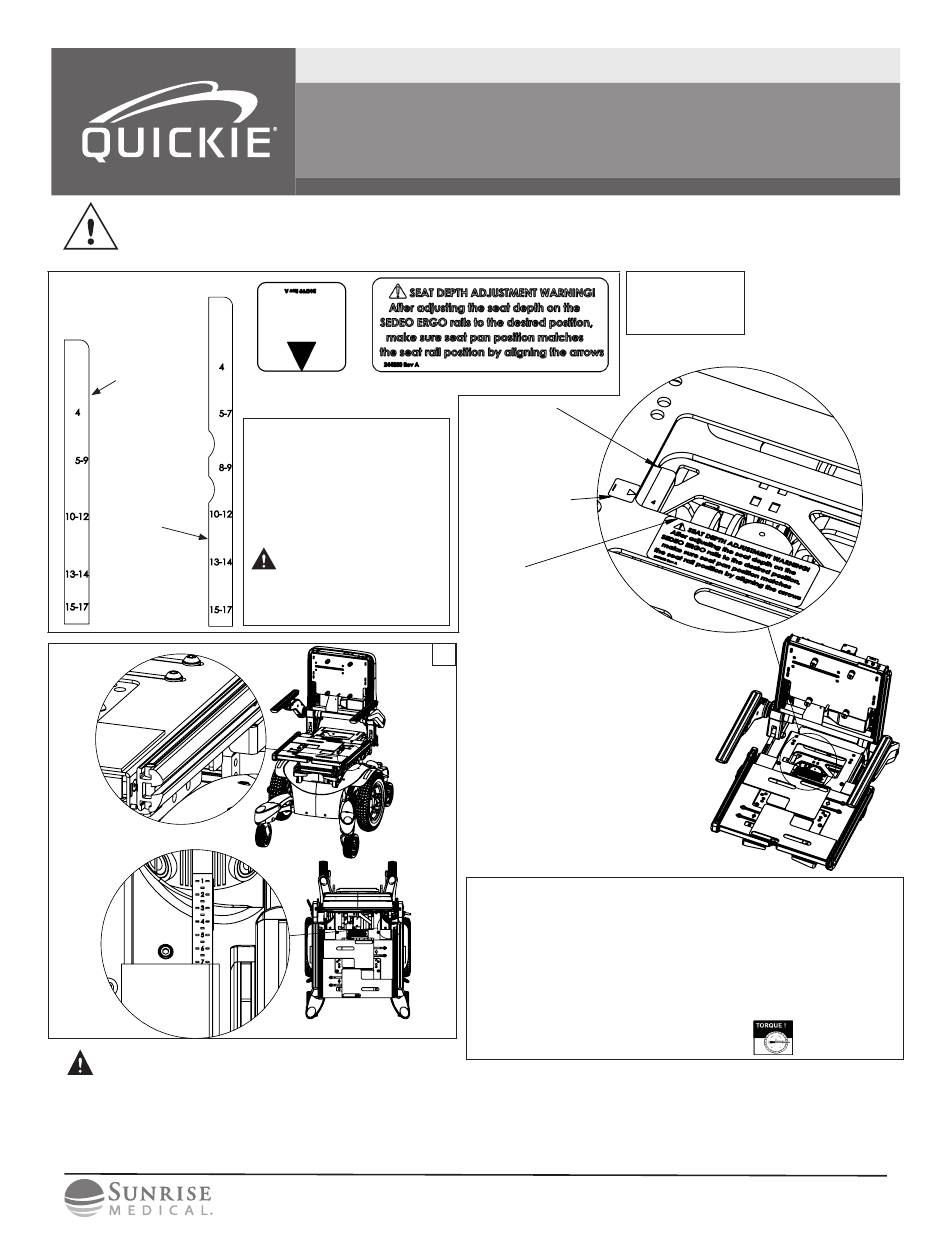

A. DECAL PLACEMENT

1. Attach decals in locations
shown on right:
a. If changing from a Tilt
to Lift/Tilt combo
decals can be
placed on top of any
existing decals.
WARNING
Correct placement of decals is
critical for correct seat depth
alignment. Exception-decal 3.
Customer service: +1 (800) 333-4000
or visit www.SunriseMedical.com
Decal 1
Line-up top
and right
edges to seat
adapter
Decal 2
Line-up
bottom and
right edges
Decal 3
Line-up
top edge
1

B. DEPTH ADJUSTMENT PREPARATION

1. Note current depth and determine which depth is desired.
2. For replacement of old adapter, make sure module to interface
is at position C for tilt, position E for tilt/lift combo and request a
new subset file. See page 2.

C. DEPTH ADJUSTMENT SEAT PAN 1

1. Using a 5mm hex key loosen the 4 bolts on the bottom sides of
the seat (Fig. 1A).
2. Slide seat to desired depth. Depth is indicated on rail (Fig 1B).
3. Torque bolts to 10-11 ft-lbs (13.6-14.9Nm).
Q7ME DEPTH ADJUSTMENT
TILT & LIFT-TILT COMBO
Tools required:
1. 5mm hex key
2. Torque wrench
Top of seat
In Canada (800) 263-3390
© 2020 Sunrise Medical (US) LLC
11/2020 P/N 248019 Rev. B
Pg 1 of 3
