3.

Operation

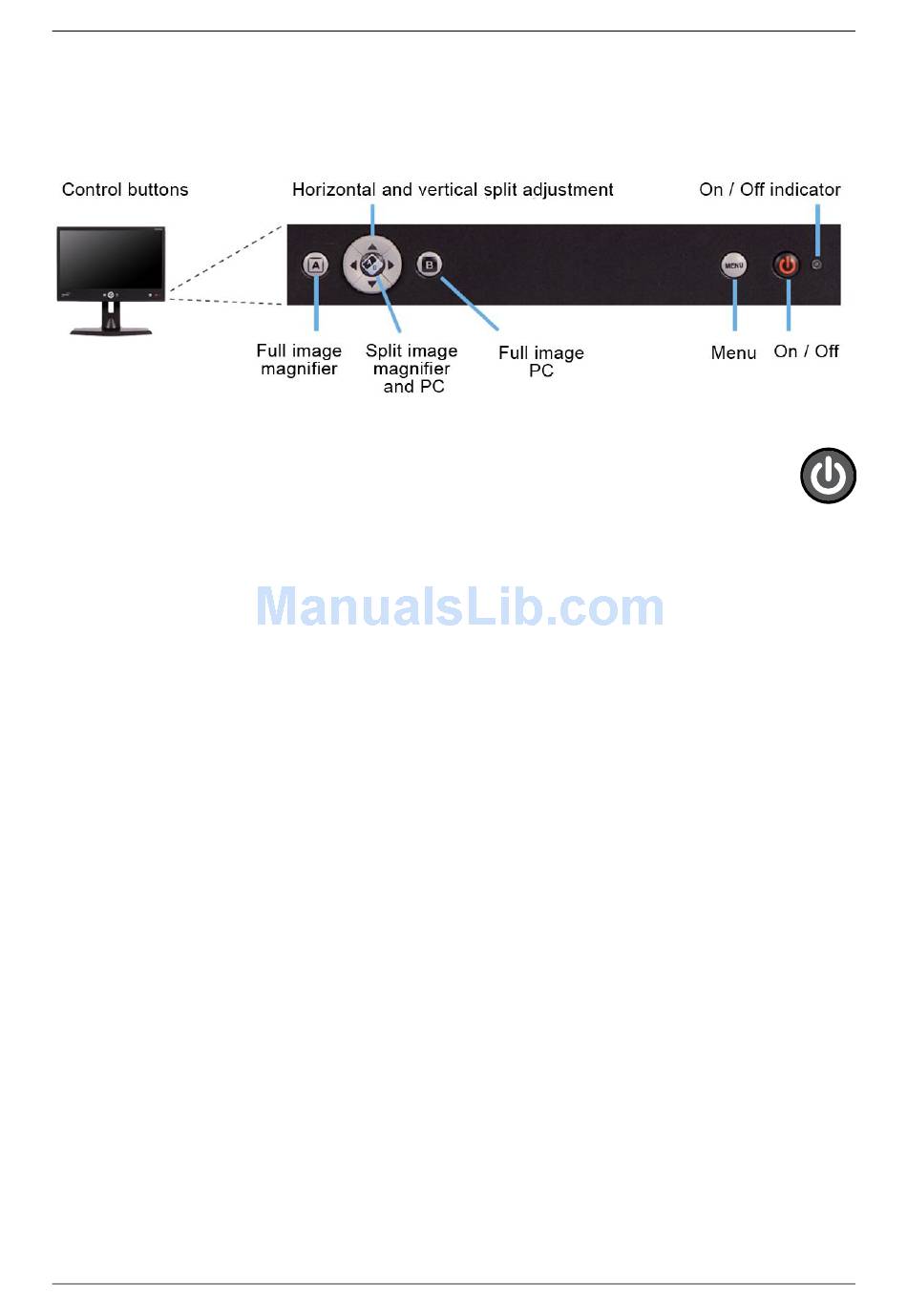

The control buttons of the TwinView are located on the front panel of the unit, below the
screen.
3.1. Switching on and off
To power the TwinView, press the On / Off button located at the bottom right of the
monitor. When no signal is detected, the TwinView will switch off automatically.
3.2. On / Off indicator
When the TwinView is switched on, the indicator will be lit green. When no input signal is
detected, the indicator will be lit orange. When the unit is switched off, the indicator will not
be lit.
3.3.

Switching between the computer and the ClearView C or another device

Press the button located at the left below the screen (labelled A) to display the full video
magnifier image. To display the full PC image, press the button labelled B (to the right of
the cursor cross). When no input signal is detected, the TwinView will automatically switch
channels after 5 seconds.
Please note: to display the PC image correctly on your TwinView monitor, make sure that
the resolution of your PC is set to 1920x1080.
3.4.

Activating the split screen functionality

Pressing the A/B button – the centre button of the cursor cross – enables the split screen,
displaying both the PC and the video magnifier images simultaneously.
3.5.

Switching between vertical and horizontal split screen

To switch between a vertical or horizontal split, press the left or right arrow for a vertical
split, or the up and down arrow for a horizontal split.
3.6.

Resizing split screen

When the vertical or horizontal split screen is activated, pressing the up or down arrow or
left or right arrow will move the split up, down, left or right respectively.
