CONFORMS TO:
EN 61000-6-2:2005
EN 61000-6-3:2007 + A1:2011
AS/NZS 60000-6-3:2012
FCC CFR 47 Part 15 Subpart B
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful
interference, and 2) This device must accept any
interference received, including interference that
may cause undesired operations.
THIS MANUAL INCLUDES IMPORTANT SAFETY INSTRUCTIONS FOR MODEL SB3000i
© Blue Sky Energy, Inc. 2017

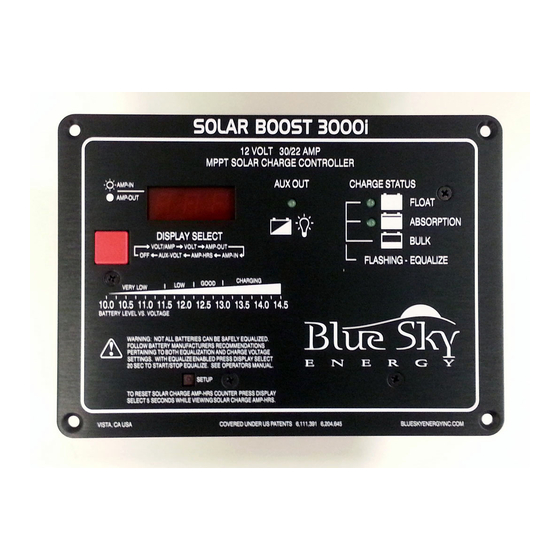

SB3000i
(SOLAR BOOST™ 3000i MPPT)
12 VOLT 30/22 AMP MAXIMUM POWER POINT TRACKING
PHOTOVOLTAIC CHARGE CONTROLLER
NSTALLATION AND OPERATION MANUAL
I
SAVE THESE INSTRUCTIONS.
COVERED UNDER ONE OR MORE OF THE FOLLOWING US PATENTS
6,111,391 • 6,204,645
430-0034 C
Advertisement
Table of Contents
Related Manuals for BLUE SKY SB3000i
Summary of Contents for BLUE SKY SB3000i
- Page 1 2) This device must accept any interference received, including interference that may cause undesired operations. THIS MANUAL INCLUDES IMPORTANT SAFETY INSTRUCTIONS FOR MODEL SB3000i SAVE THESE INSTRUCTIONS. COVERED UNDER ONE OR MORE OF THE FOLLOWING US PATENTS 6,111,391 • 6,204,645 ©...
-
Page 2: Table Of Contents
Blue Sky Energy – Solar Boost 3000i TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........................2 PRODUCT DESCRIPTION ............................2 Part Numbers and Options ........................3 OPERATION ............................... 3 Charge Status Indication ........................3 Digital Display ............................3 Solar Charge Amp-Hour Counter ......................3 Battery Level Graphic ........................... -
Page 3: Important Safety Instructions
Installation and Operation Manual IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions for Model SB3000i - SAVE THESE INSTRUCTIONS 1. Refer installation and servicing to qualified service personnel. Incorrect installation or use may result in risk of electric shock or fire. No user serviceable parts in this unit. -
Page 4: Product Description
RV. To allow easy system expandability the 3000i may also operate as an IPN Network Master controlling up to 7 Blue Sky Energy IPN compatible charge controllers such as the SB3024iL. Blue Sky Energy’s IPN Network allows multiple charge controllers to communicate with each other and coordinate their activities to charge the battery as a single coordinated charging machine. -
Page 5: Solar Charge Amp-Hour Counter
During Bulk it is a combination of battery size, state of charge and available charge current that determine battery voltage, not the 3000i. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 6: Absorption Charge
Blue Sky Energy – Solar Boost 3000i Absorption Charge Once the battery recovers sufficient charge for battery voltage to rise to the Absorption Charge Voltage setpoint (factory set to 14.4V), charge current is reduced as necessary to hold the battery at the Absorption Voltage. The 3000i will return to Bulk should battery voltage remain below the Absorption Voltage setpoint for more than 10 seconds. -
Page 7: Maximum Setpoint Voltage Limit
MULTIPLE CHARGE CONTROLLERS ON THE IPN NETWORK The 3000i may also operate as an IPN Network Master controlling up to 7 remote Blue Sky Energy IPN compatible charge controllers such as the SB3024iL or SB2512iX-HV. The IPN Network allows multiple charge controllers to communicate with each other and coordinate their activities to charge the battery as a single coordinated charging machine. -
Page 8: As Shipped Factory Default Settings
Blue Sky Energy – Solar Boost 3000i ➢ WARNING: If charge parameter settings are changed, confirm that the new settings comply with the battery manufacturers recommendations. DO NOT enable equalization for sealed lead-acid batteries such as GEL and AGM. As Shipped Factory Default Settings •... -
Page 9: Selecting Pv Modules
An optional black powder coated deluxe mounting box is available as BSE p/n 720-0011-01. The optional mounting box is the same X,Y dimension as the 3000i front panel and 2.75” (7cm) deep. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 10: Battery And Pv Wiring
Blue Sky Energy – Solar Boost 3000i DETAILED DIMENSIONAL DRAWING FIGURE 3 BATTERY AND PV WIRING A desirable installation will produce a total system wiring voltage drop of 3% or less. The lengths shown in Table 3 are one way from the PV modules to the battery with the 3000i located along the path. -
Page 11: Optional Battery Temperature Sensor
2 amps is diverted to the auxiliary battery at the same charge voltage. Auxiliary battery charge is disabled during Bulk or Equalization. Use 14 awg wire to minimize voltage drop and 25 amp maximum over current protection. Auxiliary battery negative must connect to primary battery negative. Blue Sky Energy | USA | www.blueskyenergyinc.com... -
Page 12: Load Controller
Blue Sky Energy – Solar Boost 3000i AUXILIARY OUTPUT WIRING DIAGRAM FIGURE 5 LOAD CONTROLLER – “out” setup selector set to “Lod” (load) The load controller can deliver up to 20 amps of output and operates as a high side switch to battery positive. Default settings are for Low Voltage Disconnect (LVD) with ON at V ≥12.6V, and OFF at V... -
Page 13: Battery & Pv Power Connect/Disconnect Order
INSTALLING A MULTI-CONTROLLER SYSTEM USING THE IPN NETWORK Comment: The 3000i may also serve as an IPN Network Master controlling up to 7 remote IPN Network compatible Slaves. Any Blue Sky Energy charge controller This EPS picture will print t o a capable of operating as an IPN Network Slave may be used, and as of this writing include;... -
Page 14: Troubleshooting Guide
Blue Sky Energy – Solar Boost 3000i TROUBLESHOOTING GUIDE ➢ If operational problems occur the single most important troubleshooting item is to be certain that battery voltage as measured on the battery terminals of the 3000i is the same as voltage measured on the batteries themselves within a few 10 of a volt at all times. - Page 15 Status screens to confirm communication with slaves. Bad battery or PV power to slave Check charge control related items on Slave. Consider temporarily removing Slave unit from network and setting unit to be standalone Master for troubleshooting. Blue Sky Energy | USA | www.blueskyenergyinc.com...
-
Page 16: Specifications
FIVE YEAR LIMITED WARRANTY Blue Sky Energy, Inc. (hereinafter BSE), hereby warrants to the original consumer purchaser, that the product or any part thereof shall be free from defects due to defective workmanship or materials for a period of five (5) years subject to the conditions set forth below.
