Fenix LD02 V2.0 User Manual

Technical Parameters

ANSI/PLATO FL1
Output
Alkaline
Battery
Runtime
Ni-MH
Battery
Distance
Intensity
Impact
Resistance
Waterproof
Note: The abovementioned parameters (lab-tested by Fenix using AAA alkaline and Ni-MH batteries)
may vary between flashlights, batteries and environments.
*The runtime of High output is the accumulated time when time-limited downshift activates.
 Cree XQ-E HI LED (90-CRI/ 3000K), with lifespan of 50,000 hours
 Fitted with 365nm UV LED
 Powered by one AAA battery
 Digitally regulated output maintains constant brightness
 Reverse polarity protection to protect from improper battery insertion

Tail switch for one-handed activation and output selection
 Made of durable high-strength and oxidation-resistance aluminum and stainless steel
 Premium type HAIII hard-anodized anti-abrasive finish
 Optimal quality optical lens

Operating Instruction

ON/OFF ①
Fully press the tail switch to turn on/off the light.
Output Selection
With the light switched on, tap the tail switch to cycle through Low→Med→High→UV.

Battery Specifications

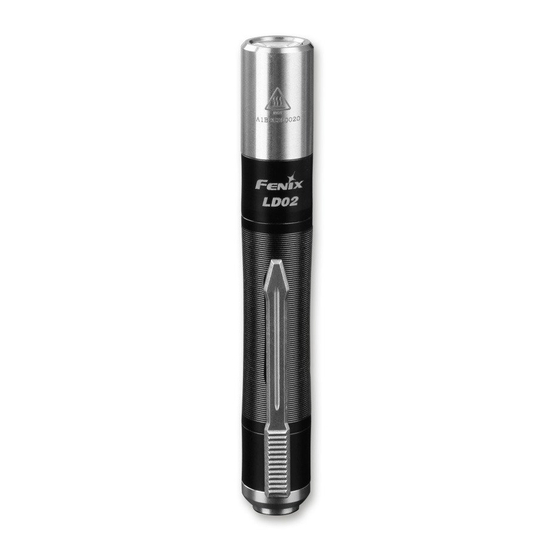

Fenix LD02 V2.0 Flashlight
High
70 Lumens 25 Lumens
40min* 2h 40min
45min* 2h 55min
48m
580cd
Med
1 Lumen
27m
185cd
1m
IP68, underwater 2m
Low
75h
45h
6m
10cd
UV Light
200mW
4h
3h
/
/
