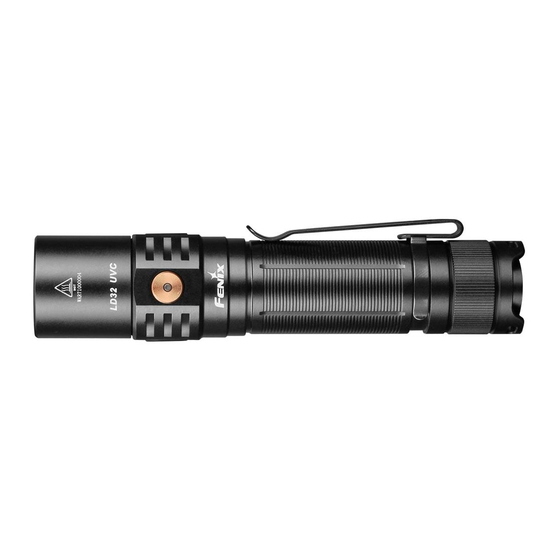

Fenix LD32 UVC User Manual

Download this manual

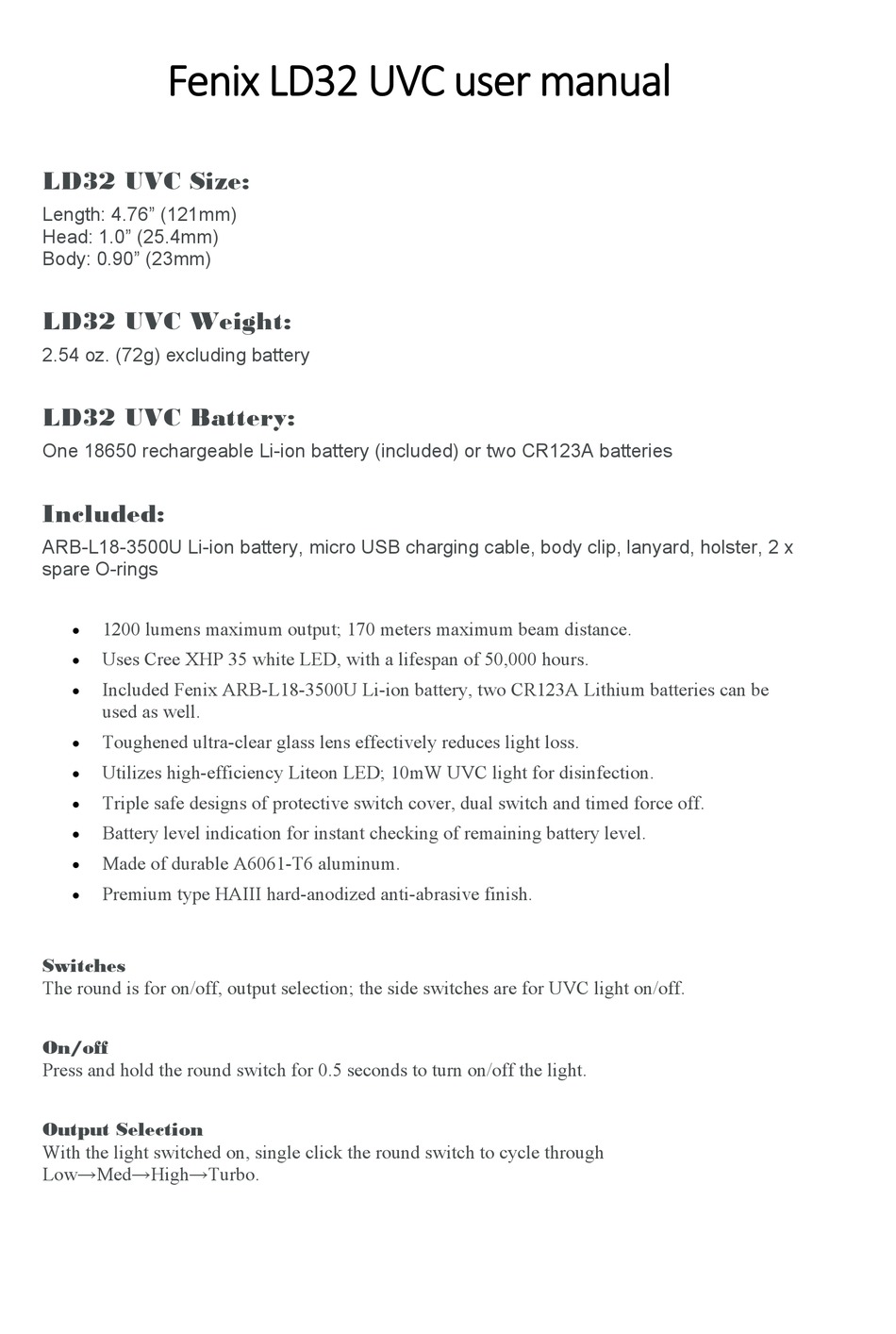

Fenix LD32 UVC user manual

LD32 UVC Size:

Length: 4.76" (121mm)

Head: 1.0" (25.4mm)

Body: 0.90" (23mm)

LD32 UVC Weight:

2.54 oz. (72g) excluding battery

LD32 UVC Battery:

One 18650 rechargeable Li-ion battery (included) or two CR123A batteries

Included:

ARB-L18-3500U Li-ion battery, micro USB charging cable, body clip, lanyard, holster, 2 x

spare O-rings

1200 lumens maximum output; 170 meters maximum beam distance.



Uses Cree XHP 35 white LED, with a lifespan of 50,000 hours.



Included Fenix ARB-L18-3500U Li-ion battery, two CR123A Lithium batteries can be



used as well.

Toughened ultra-clear glass lens effectively reduces light loss.



Utilizes high-efficiency Liteon LED; 10mW UVC light for disinfection.



Triple safe designs of protective switch cover, dual switch and timed force off.



Battery level indication for instant checking of remaining battery level.



Made of durable A6061-T6 aluminum.



Premium type HAIII hard-anodized anti-abrasive finish.



Switches

The round is for on/off, output selection; the side switches are for UVC light on/off.

On/off

Press and hold the round switch for 0.5 seconds to turn on/off the light.

Output Selection

With the light switched on, single click the round switch to cycle through

Low→Med→High→Turbo.

Page 1 1200 lumens maximum output; 170 meters maximum beam distance.  Uses Cree XHP 35 white LED, with a lifespan of 50,000 hours.  Included Fenix ARB-L18-3500U Li-ion battery, two CR123A Lithium batteries can be  used as well. Toughened ultra-clear glass lens effectively reduces light loss.
Page 2 Strobe With the light switched on, press and hold the round switch for 1.2 seconds to enter Strobe, single click again to turn back to the previously used output level. With the light switched off, press and hold the round switch for 1.2 seconds to enter Strobe, single click to exit.
Page 3 Red light flashes: critical 25% – 1%  Note: This only works with Fenix ARB-L18 Series 18650 rechargeable Li-ion battery. Intelligent Overheat Protection The light will accumulate a lot of heat when used on Turbo output level for extended periods.
Page 4 Disassembling the sealed head can cause damage to the light and will void the warranty.  Fenix recommends using an excellent quality battery.  If the light will not be used for an extended period, remove the battery, or the light could ...
