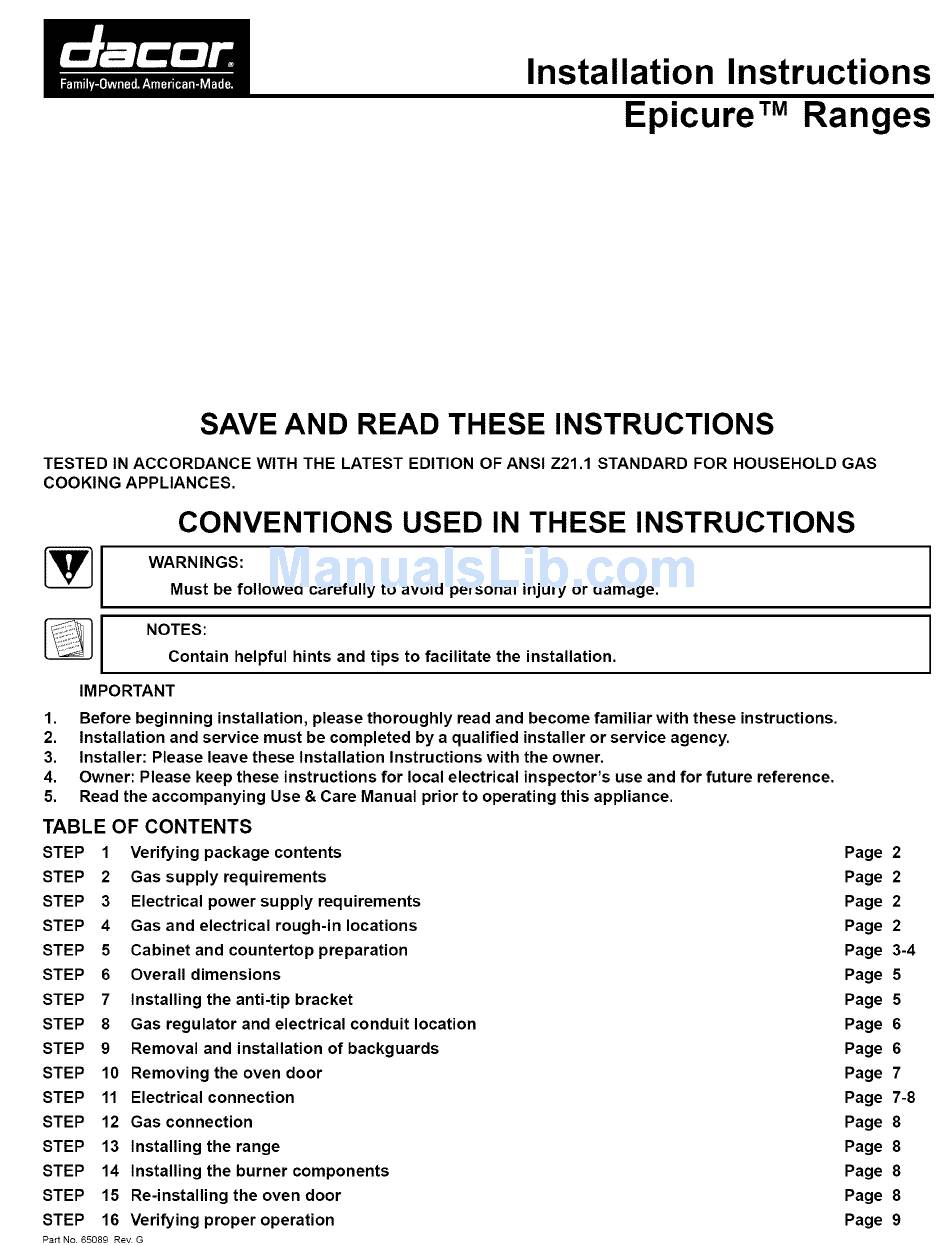

Dacor EGR30 Installation Instructions Manual

Installation Instructions
Epicure
TM
Ranges
SAVE AND READ THESE INSTRUCTIONS
TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1 STANDARD FOR HOUSEHOLD GAS
COOKING APPLIANCES.
CONVENTIONS USED IN THESE INSTRUCTIONS
WARNINGS:
Must be followed carefully to avoid personal injury or damage.
NOTES:
Contain helpful hints and tips to facilitate the installation.
IMPORTANT
1. Before beginning installation, please thoroughly read and become familiar with these instructions.
2. Installation and service must be completed by a qualified installer or service agency.
3. Installer: Please leave these Installation Instructions with the owner.
4. Owner: Please keep these instructions for local electrical inspector's use and for future reference.
5. Read the accompanying Use & Care Manual prior to operating this appliance.
TABLE OF CONTENTS
STEP 1 Verifying package contents
STEP 2 Gas supply requirements
STEP 3 Electrical power supply requirements
STEP 4 Gas and electrical rough-in locations
STEP 5 Cabinet and countertop preparation
STEP 6 Overall dimensions
STEP 7 Installing the anti-tip bracket
STEP 8 Gas regulator and electrical conduit location
STEP 9 Removal and installation of backguards
STEP 10 Removing the oven door
STEP 11 Electrical connection
STEP 12 Gas connection
STEP 13 Installing the range
STEP 14 Installing the burner components
STEP 15 Re-installing the oven door
STEP 16 Verifying proper operation
Part No. 65089 Rev. G
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
2
2
2
2
3-4
5
5
6
6
7
7-8
8
8
8
8
9
