Control 4 C4-WALL7-WH Installation Manual page 5

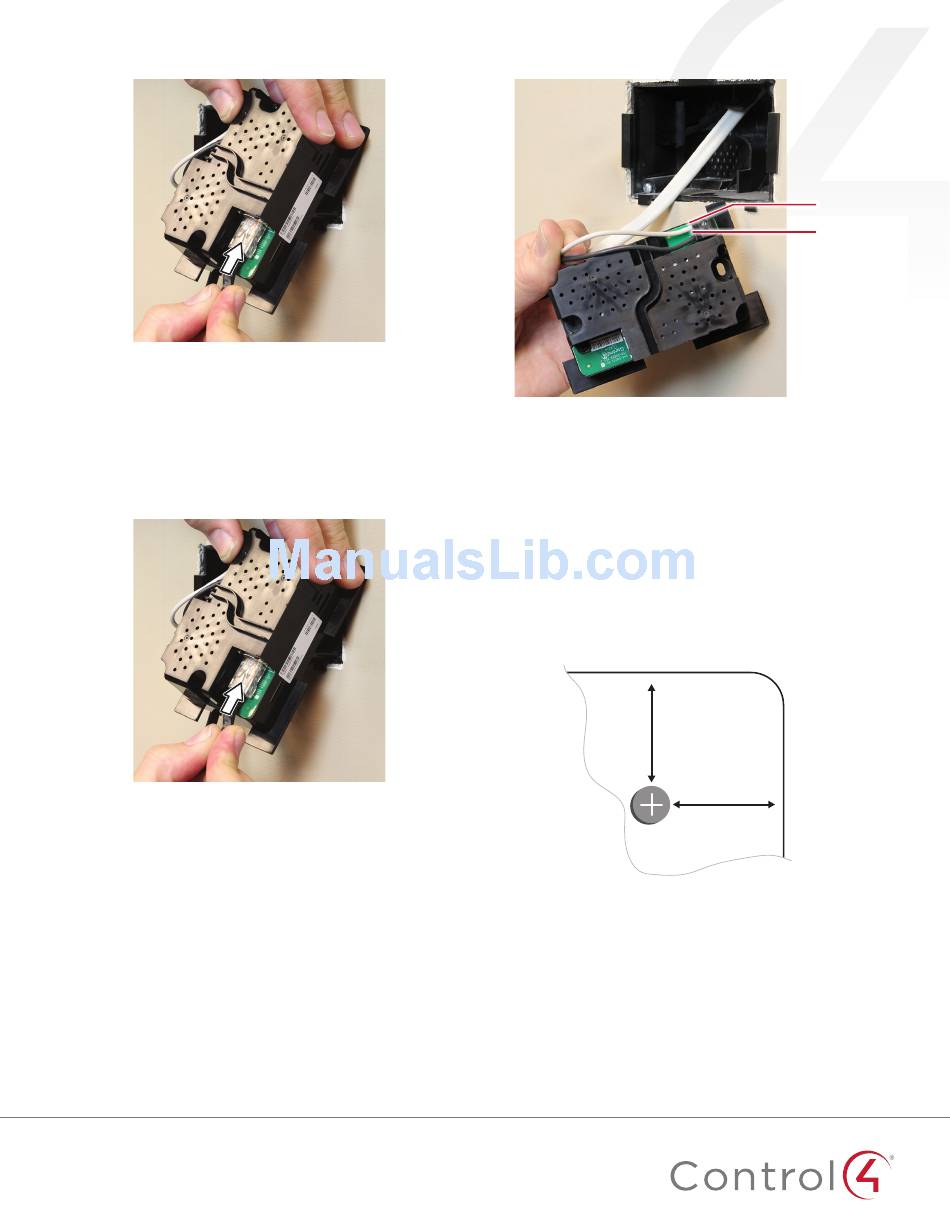

Figure 7: Insert Ethernet cable into power box
5 Go to "Attach the power box and touch screen" below.
Connecting standard Ethernet
To connect to a wired network:
1 Pull the in-wall Ethernet cable through the top left hole of
the wall box, then plug it into the Ethernet jack on the top
back of the power box (Figure 8).
Figure 8: Insert Ethernet cable into power box
2 Go to "Attach the power box and touch screen" below.
Connecting AC power
The steps below represent a typical U.S. installation.
1 Connect the wires to the AC power source for the touch
screen according to national and local electrical codes.
Installation may require alternative wires and the use of a
terminal block.
2 Thread the power cable through the upper back hole of the
wall box to the terminal block (Figure 7).
3 Strip the black and white power wire ends to 1/4" as
necessary. Using a flat-head screwdriver, loosen the screws
on the power box's terminal block and connect the power
wires to each terminal (Figure 9).
5
Figure 9: Connect AC power
4 Cap the ground wire from the wall if you are using a plastic
wall box. Attach the ground wire to the wall box if using a
metal wall box.
Attach foam pads (optional)
Four foam pads are included to help stabilize the touch screen
against the wall. Installation is not required.
To install the foam pads:
1 Peel off the adhesive backing.
2 Place onto the back of the touch screen near the corners,
spaced about 1.25" (30 mm) from the edges.
Figure 10: Foam pad placement
~1.25"
(~30 mm)
Neutral (N)
Line (L)
