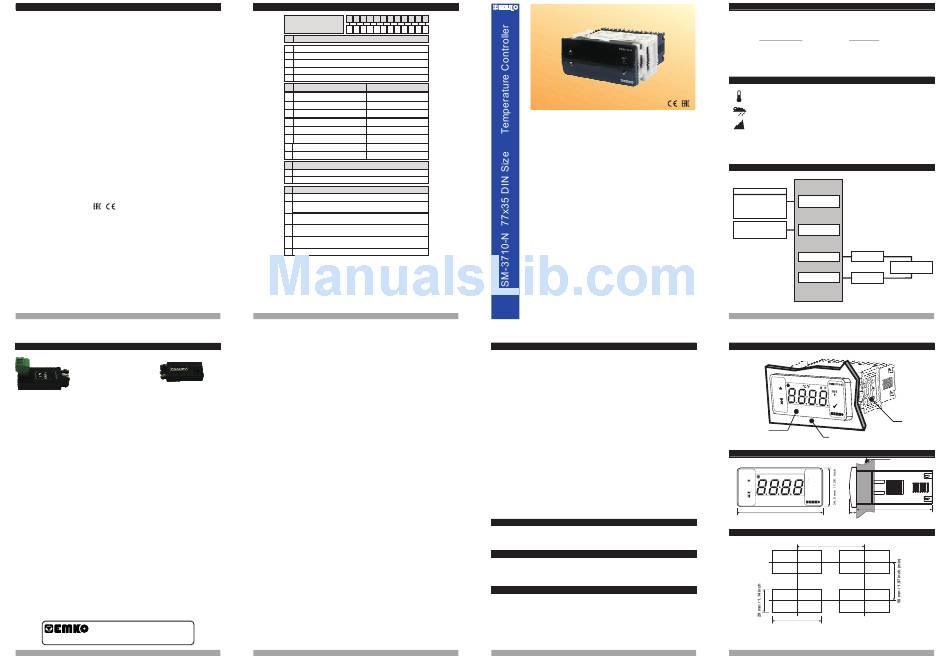

7. Specifications
Device Type
: Temperature Controller
Housing & Mounting
: 76mm x 34.5mm x 71mm plastic housing for panel
Mounting. Panel cut-out is 71x29mm.
Protection Class
: NEMA 4X (Ip65 at front, Ip20 at rear).
Weight
: Approximately 0.20 Kg.
Environmental Ratings
: Standard, indoor at an altitude of less than 2000 meters
with none condensing humidity.
o
o
o
o
Storage / Operating Temperature
: -40 C to +80 C / -30 C to +80 C
Storage / Operating Humidity
: 90 % max. (None condensing)
Installation
: Fixed installation
Overvoltage Category
: II.
Pollution Degree
: II, office or workplace, none conductive pollution
Operating Conditions
: Continuous
V
Supply Voltage and Power
:
230V
( %15) 50/60Hz - 1.5VA
±
V
: 115
V
( %15) 50/60Hz - 1.5VA
±
V
: 24
V
( %15) 50/60Hz - 1.5VA
±
W
: 24
V
( %15) 50/60Hz - 1.5VA
±
:10 - 30
V
Z
1.5W
Temperature Sensor Input
: NTC, PTC, TC, RTD
NTC input type
: NTC (10 k @25 °C )
W
PTC input type
: PTC (1000
W
@25 °C )
Thermocouple input type
: J, K (IEC584.1) (ITS 90)
Thermoresistance input type
: PT-100, PT-1000 (IEC751) (ITS 90)
Accuracy
: ± 1 % of full scale for thermoresistance
Cold Junction Compensation
: Automatically ± 0.1°C / ± 1°C
Sensor Break Protection
: Upscale
Sampling Cycle
: 3 samples per second
Control Form
: ON / OFF
V
Relay Output
:
16(8)
A@250 V
for Resistive load (
Compressor
(Electrical life : 100.000 switching at full load)
Z
Optional SSR Drive Output
: Maximum 20mA, Maximum 17V
Display
: 14 mm Red 4 digits LED Display
o
o
LED
: S (Green), P (Green), C (Yellow), F(Yellow),
Compressor Output (Red), Heating Output (Red)
Internal Buzzer
: 83dB
³
Approvals
:
,
9.Optional Accessories
1.RS-485 Module
2.PROKEY Programming Module
c
V
Vac,
Þ
Z
Vdc
RS-485 Communication Interface
Þ
The device is programmed(Upload or
W
Vdc or Vac
Download) by using the parameters.
Þ
can be applied
Thank you very much for your preference to
use Emko Elektronik products, please visit our
web page to download detailed user manual.
Your Technology Partner
www.emkoelektronik.com.tr
8.Ordering Information
A BC D E
/
ESM-3710-N
(77x35 DIN Sizes)
0
/
A
Supply Voltage
2
24V
W ±
( %15) 50/60Hz - 1.5VA
V ±
3
24V
( %15) 50/60Hz - 1.5VA
V ±
4
115V
( %15) 50/60Hz - 1.5VA
5
230V
V ±
( %15) 50/60Hz - 1.5VA
8
10 - 30 V Z
Scale(°C)
BC
Input Type
05
J ,Fe CuNi IEC584.1(ITS90)
K ,NiCr Ni IEC584.1(ITS90)
10
11
PT 100, IEC751(ITS90)
-50°C/-58°F ;
09
PT 100, IEC751(ITS90
-19.9°C/-4°F ;
PT 1000, IEC751(ITS90)
14
-50°C/-58°F ;
13
PT 1000, IEC751(ITS90
-19.9°C/-4°F ;
12
PTC (Not-1)
-50°C/-58°F ;
NTC (Not-1)
18
-50°C/-58°F ;
E
Compressor Output
Output)
V
1
Relay Output (16(8) A@250 V
,at resistive Load, 1 NO )
2
SSR Driver
Output (
Maximum 20m, Maximum 17V
Temp. Sensor which is given with ESM-3710-N
V
0
None
1 PTC-M6L40.K1.5 (PTC Air Probe 1.5 mt Silicon Cable)
2
PTCS-M6L30.K1.5.1/8" (PTC Liquid Probe 1.5 mt Silicon Cable)
NTC-M5L20.K1.5 (NTC Sensor, thermoplastic moulded with 1.5 m cable
3
for cooling application)
NTC-M6L50.K1.5 (NTC Sensor, stainless steel housing with 1.5 m cable
4
for cooling application)
9
Customer
All order information of ESM-3710-N Temperature Controller are given on the table at above. User
may form appropriate device configuration from information and codes that at the table and convert it to
the ordering codes.Firstly, supply voltage then other specifications must be determined. Please fill the
order code blanks according to your needs.
Please contact us, if your needs are out of the standards.
Note-1:If input type is selected PTC or NTC (BC= 12, 18), Temperature sensor is given with the
device.For this reason, if input type is selected as PTC,sensor type (V = 0,1 or 2) or if input type is
selected as NTC, sensor type (V = 0,3 or 4) must be declared in ordering information.
13
15
FG HI /
U V W Z
00 00
/
1
0
0
0°C/32°F ; 800°C/1472°F
0°C/32°F ; 999°C/1830°F
400°C/752°F
99.9°C/212°F
400°C/752°F
99.9°C/212°F
ESM-
150°C/302°F
Digital , ON / OFF Temperature
100°C/212°F
Z
)
- 4 Digits Display
- NTC Input or
PTC Input or
J Type thermocouple Input or,
K Type thermocouple Input or,
2-Wire PT-100 Input or,
2-Wire PT-1000 Input
- Adjustable temperature offset
-
ON/OFF temperature control
-
Selectable heating or cooling function
- Selection of operation with hysteresis
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Operation selection of compressor operates continuously,
stops or operates periodically in case of sensor defect
- Compressor protection delays
- Adjustable internal buzzer according to sensor defect status.
- Password protection for programming section
- Installing parameters using Prokey
- Remote access, data collecting and controlling with Modbus RTU
- Having CE mark according to European Norms
14
1.3 Installation
A visual inspection of this product for possible damage occurred during shipment is
recommended before installation. It is your responsibility to ensure that qualified mechanical
and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power off the
system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power supply switch or a fuse. Use power switch and fuse
as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to prevent
failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble with the
unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in
malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During putting equipment in hole on the metal panel while mechanical installation some metal
burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it's fixing clamps. Do not do the montage
of the device with inappropriate fixing clamp. Be sure that device will not fall while doing the
montage.
It is your responsibility if this equipment is used in a manner not specified in this instruction
manual.
1.4 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and
workmanship. This warranty is provided for a period of two years. The warranty period starts
from the delivery date. This warranty is in force if duty and responsibilities which are determined
in warranty document and instruction manual performs by the customer completely.
1.5 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the
device before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in
ethyl alcohol or water to clean the external plastic case.
1.6 Manufacturer Company
Manufacturer Information:
Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY
Phone : +90 224 261 1900
Fax
: +90 224 261 1912
Repair and maintenance service information:
Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA /TURKEY
Phone : +90 224 261 1900
Fax
: +90 224 261 1912
16
1.Preface
ESM-3710N series temperature controllers are designed for measuring and controlling
temperature. They can be used in many applications with their On / Off control form, heating
and cooling control form and easy-use properties. Some application fields which they are
used are below:
1.1 Environmental Ratings
c
3710-N
77 x 35 DIN Size
Controller
1.2 General Specifications
Standard
V ±
230V
( %15) 50/60Hz
Optional Supply Voltage
115 V
V
( %15) 50/60Hz,
±
V
24 V
( %15) 50/60Hz,
±
W
24 V
( %15) 50/60Hz,
±
(Must be determined in order.)
10
- 30 V Z
NTC, PTC,
J or K Type TC
2-Wire PT-100
2-Wire
PT-1000
Instruction Manual. ENG ESM-3710-N 01 V04 07/14
2. General Description
Front Panel
IP65 protection
NEMA 4X

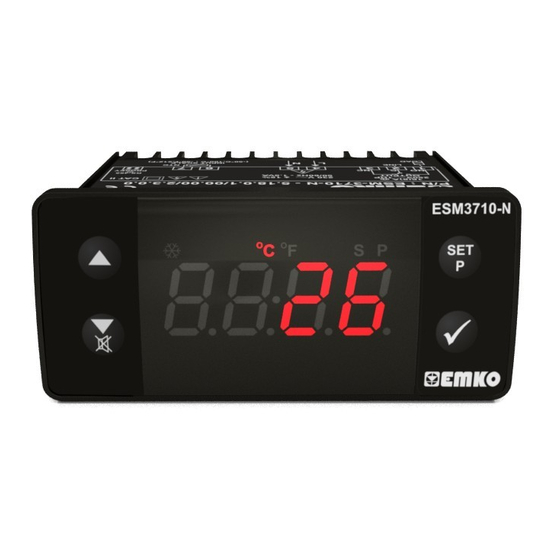

2.1 Front View and Dimensions of ESM-3710-N Temperature Controller
2.2 Panel Cut-Out
3
Application Fields
Applications
Glass
Heating
Food
Baking Ovens
Plastic
Incubators
Petro-Chemistry
Storages
Textile,
Automative Air Conditioning
Machine Production Industries Etc...
Etc...
Operating Temperature
:
0 to 50 °C
Max. Operating Humidity :
90% Rh (non-condensing)
Altitude
:
Up to 2000 m.
Forbidden Conditions:
Corrosive atmosphere
Explosive atmosphere
Home applications (The unit is only for industrial applications)
ESM-3710-N
Power Supply
Input
Temperature Sensor
Input
Standard
Output-1
Control Output
(Relay Output)
Alarm Output
Heating or Cooling
Function
Optional
ON/OFF Operation
Output-1
Control Output
(SSR Drive Output)
Alarm Output
2
Mounting Clamp
Panel Surface
(maximum thickness 15 mm / 0.59 inch)
Maximum 15 mm / 0.59 inch
ESM3710-N
O
C
O
F
S P
SET
P
ü
65 mm / 2.56 inch
76 mm / 3 inch
6 mm / 0.24 inch
110 mm / 4.33 inch (min)
71 mm / 2.79 inch
4
