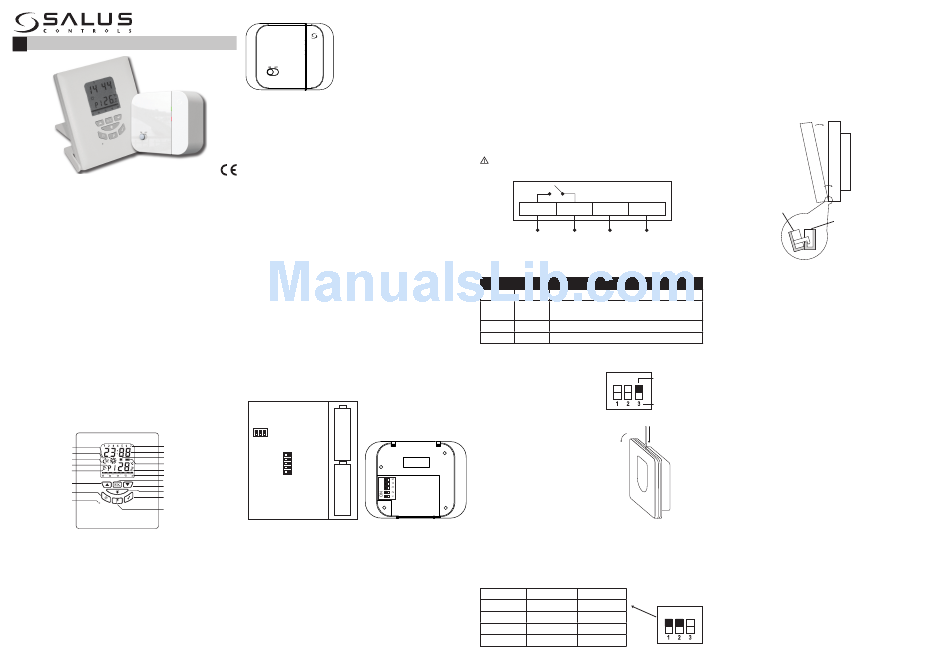

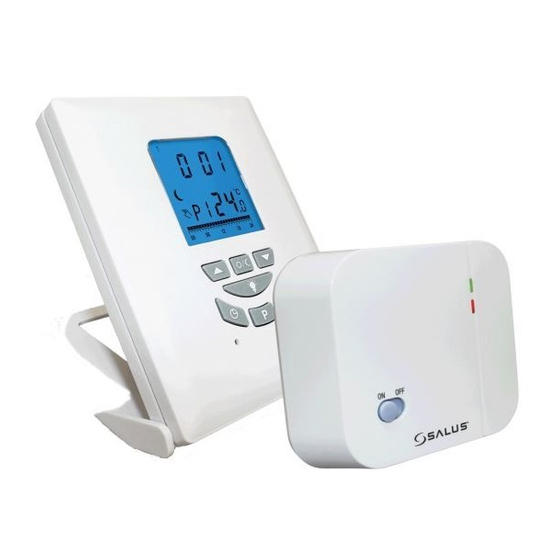

GB T105RF – WIRELESS THERMOSTAT
INTRODUCTION
This thermostat can replace most common residential thermostats and
is designed to be used with electric, gas or oil heating control system or
cooling system. Unlike ordinary single unit design thermostats, this unit
is a new type of thermostat separating the thermostat function into two
units. The Receiver serves for wiring connections and heat/cool on/off
control. The Control Centre serves as user interface and temperature
sensing/control. The two units are linked by RF.
The advantage is that users can put the Control Centre nearby and can
read/control the temperature of the living area.
SPECIFICATION
Clock accuracy: +/ - 60 seconds/month
Temp. measurement: 0°C to 40°C in 0.2°C resolution
Temp. accuracy: +/ - 1°C at 20°C
Temperature Control: 7°C to 30°C in step of 0.2°C
Span: 0.4, 0.8 ,1.4 or 1.8°C
Air conditioner cycle time: 3 minutes
Operation temperature: 0°C to 40°C
Storage temperature: -10°C to 60°C
Power Source: Control Centre 2 AA (LR6) batteries
Receiver: 230VAC 50Hz 16A resistive, 5A inductive
Size and Weight: Control Centre 116 x 100 x 23.5mm, 126g
Receiver: 128 x 97 x 37mm, 190g
Frequency: 868 Mhz
Features
Several useful functions and operating modes have been incorporated
to suit a variety of customer needs besides all the features associated
with the state-of-the-art programmable thermostat.
Day Indicator
Heat/Cooler On Icon
Clock
Comf. Icon
Anti-freezing icon
Econ. Icon
Battery Low Icon
Program Number
Temperature
Manual Override Icon
Control Profile Bar
Comf/Econ Button
Up Button
Down Button
Backlight
Set Time Button
Set Temperature Button
Reset Button
Set Program Button
Control Centre
- Simplified temperature adjust-
- Can be placed anywhere in the
ment - Simplified programming
home to detect and control the
procedure
temperature of an area of the
- 6 pre-defined control profiles,
user's choice. Not limited by power
3 user programmable control
control wiring locations.
profiles
- Link with the Receiver via RF.
- Protection against freezing
Control distance 70M open site
- Temporary set-temperature
- LCD shows the "need to know"
override
information only, which is easier to
- User selectable temperature
understand.
span; User selectable heater/
- Real time clock with day of the
cooler operation mode
week display
- Slim housing design
- Room temperature display
- EL backlight
- Control profile display
Receiver
- Linked with Control Centre via RF.
- Powered by line voltage only. No battery required.
- Two LED indicators for power and output status.
INSTALLATION OF RECEIVER
Caution:
1. The appliance can only be mounted indoors and in areas free from
any water or moisture.
2. A suitable fuse with a rating not exceeding 13A, should be in the power
line.
3. Observe the national regulations for wiring.
4. A q u a fi i l e d e e l c r t c i a i n s i e r c o m m e n d e d f r o n i t s l l a t a o i n
This thermostat has been designed for simple and quick installation
requiring only a few tools. Only the Receiver needs to be installed.
Required Tools
• Hammer • Masking tape • Screwdriver
• Drill and 3/16" drill bit (if not installed on a junction box)
RF Address Code Setting
If there is another user nearby, e.g. in the next house, your receiver
maybe fault triggered by their transmitter. You may select a different RF
address code to prevent this. Receiver can only response to RF coding
with the same address code setting as its own address code.
1. To adjust address code of Control Center Receiver, simply left or right
of the 5 dip switch levers.
2. To adjust address code of Control Centre, open the housing of the
transmitter unit. See battery replacement section on how to open the
housing.
Caution:
1. Address code of Control Centre must be the same as address code
of Receiver. For any on position of address code # in Control Centre,
the same address code # of Receiver must be switched to ON.
2. Disconnect AC power and remove batteries prior to adjusting address
code.
ON
OFF
1 2 3
1
2
3
4
5
OFF ON
Set the address Code
#1 - #5 to ON or OFF
position
CONTROL CENTRE RECEIVER
Removing your old thermostat
CAUTION : to avoid electric shock, isolate the power of the heating/
cooling system at the main power box in your home. Read the following
instructions carefully before disconnecting the wires.
1. Turn off your old thermostat.
2. Remove the cover from the old thermostat.
3. Unscrew the old thermostat from the wall plate.
4. Now find the screws attaching the wall plate to the wall, and remove
them. You should now be able to pull the wall plate a small distance from
the wall. Do not disconnect any wire yet, simply locate the wires.
WARNING: After removing the wall plate, if you find that it is mounted on
a junction box (e.g. a box similar to one behind a light switch or electric
outlet), high voltage circuit may be present and there is a danger of
electric shock. Please consult a qualified electrician.
Choosing a Location
Note: for a new installation, choose a mounting location about five feet
(1.5 metres) above the floor in an area with good air circulation and
away from:
1. Drafts.
2. Air ducts.
3. Radiant heat from the sun or appliances.
4. Concealed pipes and chimneys.
Mounting the Receiver onto the wall/junction box
1. Remove the back plate from the Receiver.
2. Mark the holes position.
3. Drill two holes and insert the plastic anchors carefully into the holes,
fasten the back plate to the wall with 2 screws.
4. Connect the wires - see wiring diagram.
5. Push on the wires in the wall.
6. Securely fasten the Receiver to the back plate.
WIRING DIAGRAM
RECEIVER WIRING TERMINALS
a n d s e v r c i n i . g
NO COM
16(5)A
Terminal Identifier Description
1 NO Normally Open [N/O]
2 COM Linked Live feed (230V AC heating applications
only)
3 L Live feed (230V AC)
4 N Neutral
SETTING OF CONTROL CENTRE
Heater/Cooler Selection
Before making any selection in the
control centre, its back housing must
be removed as follows: Inside the
Control Centre after the back housing
is removed, you can find the DIP
switch.
These three switches are used to
control the span and heat/cool sys-
tem. Set the DIP switch (position 3)
according to your selection of heater
Remove
system or cooler system as the fol-
the front
lowing diagram.
housing
Temperature Span Selection
Span is the temperature difference between the turn on temperature
and turn off temperature. For example, in heating systems, if you set
temperature to 20°C and span to 0.8°C, the heater will operate when the
room temperature drops to 19.2°C and turns off when the temperature
rises to 20.8°C. Set the DIP switch (position 1 & 2) according to your
selection of temperature span as the following diagram.
1 2 Span
ON ON 0.4ºC
OFF ON 0.8ºC
ON OFF 1.4ºC
OFF OFF 1.8ºC
Battery Installation
Your thermostat uses two (2) "AA" size batteries to operate. To power-up
the unit, insert two "AA" batteries into the battery compartment of the
front housing. When power is applied for the first time, the display must
show time and the day as well as the room temperature (for example
28.5°C).
If the display is different, press the RESET button. Use a fine probe such
as straightened paper clip to gently push the RESET button.
After installation of the batteries, push back the rear housing to the con-
trol centre and then the stand. Before turning on the main switch of the
system, press the reset button once. The thermostat is ready for use.
BATTERY REPLACEMENT
front
housing
L N
L N
230V~
50Hz Align the hinge
It is recommended that the batteries be replaced when the display is
showing the battery-low icon. To replace the battery,
1. Turn off the power of the Receiver first.
2. Remove the back housing and stand of the Desktop Unit.
3. Replace the old batteries with 2 new AA alkaline batteries.
4. Replace the back housing and stand.
5. Press the reset button once and then turn on the power switch of the
Receiver.
Setting Clock
1. Press the SET TIME button to clear all digits except the day indicator
and the time display. The day indicator is flashing.
On On : Heater 2. While day indicator is flashing, press UP or DOWN button to adjust.
3. Press the SET TIME button again, hour digits are flashing instead of
day indicator. Press UP or DOWN button to adjust. Press and hold the
UP or DOWN button to speed up the adjustment rate.
Off : Cooler
4. Press the SET TIME button again, minute digits are flashing instead
of hour digit. Press UP or DOWN button to adjust. Press and hold the
Push and hold
UP or DOWN button to speed up the adjustment rate.
internal lock by
5. Press the SET TIME button again to return to normal operation
a screw driver
mode.
6. The unit will return to normal operation mode if no key is pressed for
15 seconds.
Setting Control Temperature
1. Press the SET TEMPERATURE button to display the pre-defined set
temperature.
2. Press the CONF/ECON button to toggle between the setting of eco-
nomic mode and comfortable mode.
3. Press the UP or DOWN button to increase/decrease the set tempera-
ture by 0.2°C.
4. Press the SET TEMPERATURE button again to save the set tempe-
rature.
5. The unit will return to normal operation mode if no button is pressed
for 15 seconds.
6. The default setting of comfortable mode is 21°C for heater mode and
23°C for cooler mode. The economic mode is 18°C for heater mode
and 26°C for cooler mode.
SETTING PROGRAM
i) Select Week-Day
On
1. Press the SET PROGRAM button, the day indicator shows the pro-
gram day and is flashing. Program number indicator shows the current
program for the selected day.
2. Press the UP or DOWN button to select the day needed to program.
You can select the whole week, working day, weekend,or individual
day to program.
back
housing
