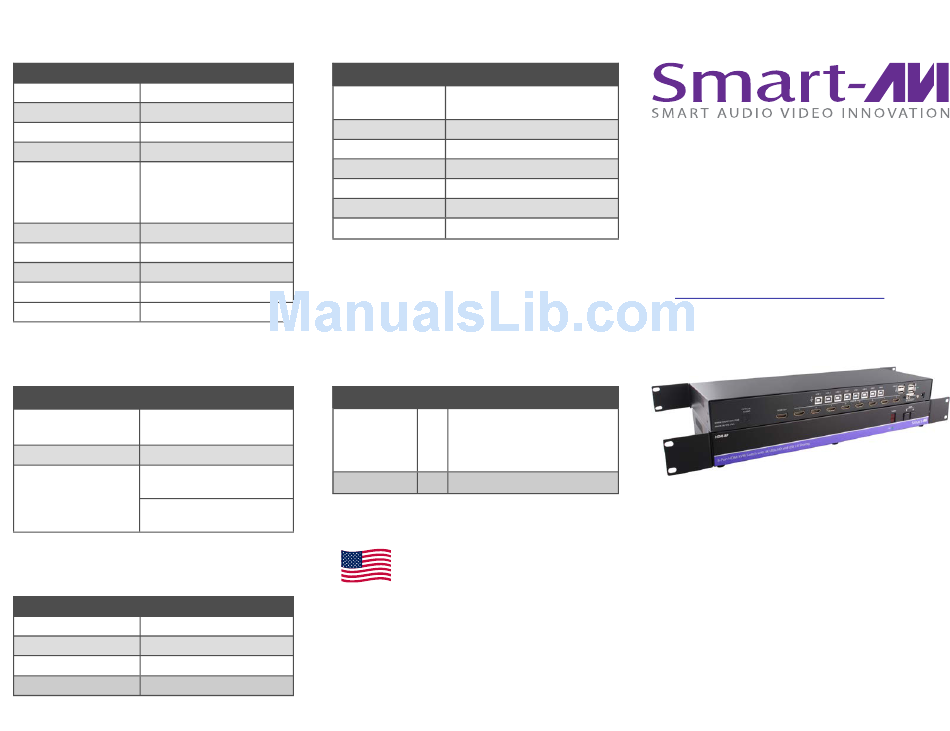

SMART-AVI HDN-8P User Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format HDMI 1.4
Maximum Pixel Clock 300 MHz
Input Interface (8) HDMI 19-pin (female)
Output Interface HDMI 19-pin (female)
Max Resolution 4Kx2K (3840x2160
@30Hz),
1080P @ 60Hz, and 1080P
3D @60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Bandwidth Frequency 10.2 Gbps
USB
Signal Type USB 2.0, 1.1, and 1.0 w/
internal hub
Input Interface (8) USB Type B (female)
Output Interface (2) USB Type A (female) for
keyboard and mouse only
(2) USB Type A (female) for
USB 2.0
CONTROL
Front Panel Tactile Switch
RS-232 Control @ 9600 bps
Hotkeys Via Keyboard
Emulation Keyboard and mouse only
OTHER
Power External 100-240 VAC/ 5VDC4A
@20W
Dimensions 1.75" H x 6.25" D x 14.75" W
Weight 3.5 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 23 to 95 °F (-5 to 35 °C)
Storage Temp. -4 to 185 °F (-20 to 85 °C)
Humidity 5 to 95%RH (No Condensation)
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
HDN-8P-S 1 8-Port 4K Ultra HD HDMI and
USB 2.0 Switch.
Includes: [HDN-8P &
(PS5VDC4A)]

User Manual

1
Designed and Manufactured in the USA

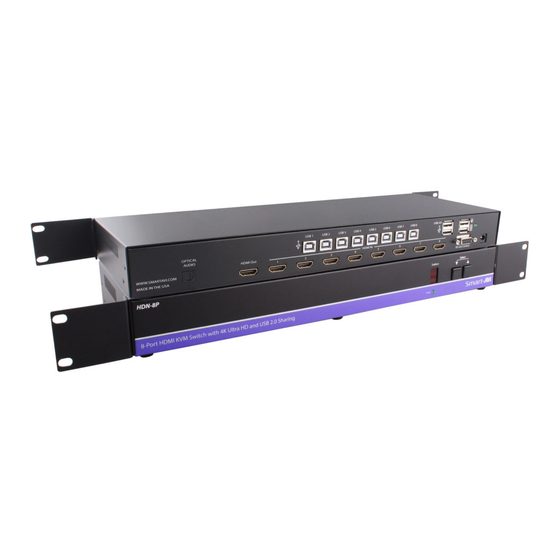

HDN-8P
8-Port HDMI KVM Switch
4K Ultra HD and USB 2.0 Sharing
Access and Control Eight 4K Ultra HD Computers
Using Only One USB Keyboard, USB Mouse and
HDMI Monitor with Full Emulation
USER MANUAL
with
