SMART-AVI HDNET-4P User Manual

SWITCH USING THE FRONT CONTROL PANEL
To navigate different inputs manually and display
them on the main screen simply press the left and
right buttons. The "Channel Selected" light will indi-
cate exactly what input channel is selected.
SWITCH USING REMOTE CONTROL
The HDNet4P can be controlled by remote control.
Use the channel up and down keys to select the next
input. The number keys can be used to select chan-
nels 1 through 4. The channel selection will be dis-
abled when the HDNet-4P is in automatic mode.

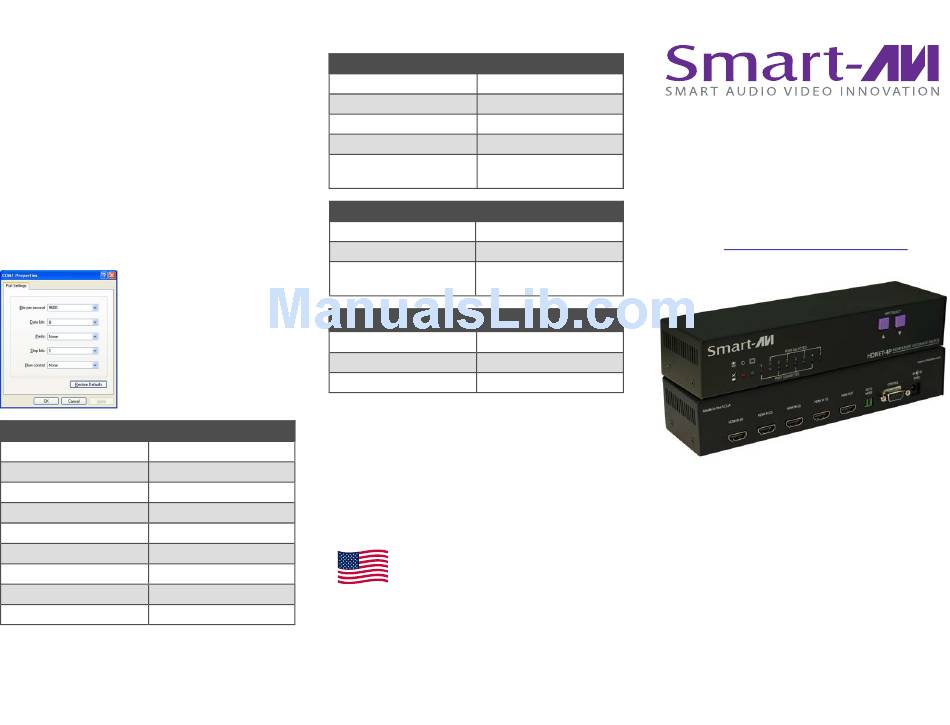

SWITCH USING RS232
A standard serial data pro-
gram such as HyperTerminal
can be used to issue com-
mands to the HDNet4P.
The settings are 9600 bits
per second, 8 data bits, no
parity, 1 stop bit, and no flow
control.
(As shown at left)
FUNCTION COMMAND
Switch to channel 1 M1
//
Switch to channel 2 M2
//
Switch to channel 3 M3
//
Switch to channel 4 M4
//
Hotplug channel 1 //h1
Hotplug channel 2 //h2
Hotplug channel 3 //h3
Hotplug channel 4 //h4
Check EDID //d
The "Check EDID" command will compare the current
EDID from the monitor with the EDID it has pro-
grammed inside, this is to ensure the correct audio
and High definition display signals are being sent
through the device properly.
TECHNICAL SPECIFICATIONS
VIDEO
Video Amplifier Bandwidth 1.65 Gbps
Input Video Signal 1.2 volts
Input DDC Signal 5 volts
Single Link Range 1080p
HDMI Connector HDMI Type A 19 pin fe-
male
CONTROL
Front Panel 2 Tactile Switches
RS-232 Female DB9 @ 9600bps
IR 3.5mm connector with
38khz
OTHER
Power 5V DC
Dimensions 9.1" W x 1.75" H x 2.5" D
Weight 2.5 lbs.
Designed and Manufactured in the USA

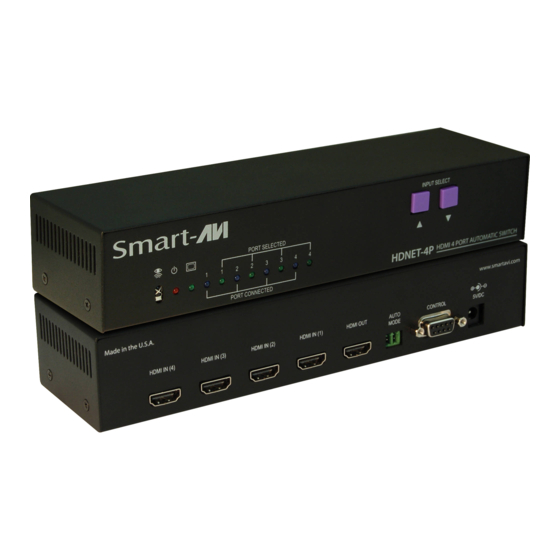

HDNET-4P
FOUR PORT HDMI
AUTOMATIC SWITCH
Automatically Switch Between up to
Four HDMI Devices on One
HDMI Display

USER MANUAL
