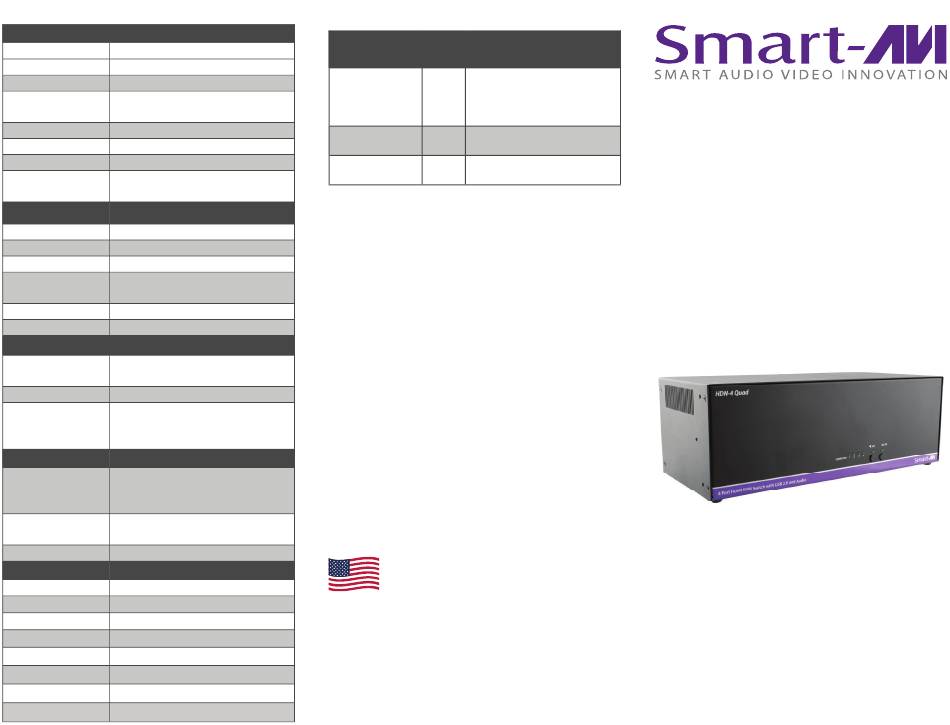

SMART-AVI HDN-4 Quad Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
HDMI 1.4, 1.0
Format
Input Interface
(16) HDMI (female)
Output Interface (4) HDMI (female)
Up to 4K (3840x2160 @30Hz)
Resolution
@30Hz
DDC
5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable
Up to 20 ft.
Length
AUDIO
Input Interface
(4) 3.5 mm Stereo Audio
Output Interface
(1) 3.5 mm Stereo Audio
Impedance
600 Ohm
Frequency Re-
20 Hz to 20 kHz
sponse
Nominal Level
0-1.0 V
Common Mode
Rejection at 60 dB
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface
(4) USB Type B
(2) USB 1.1 Type A for keyboard &
Mouse
Output Interface
(2) USB 2.0 Type A Transparent
CONTROL
Buttons, Select/Switch between
sources and view the current se-
Front Panel
lected channel.
DB9 Female - 9600 N,8,1, No flow
RS-232
control
Hot Keys Via Keyboard
OTHER
Power External
100-240 VAC/ 5VDC4A
Consumption
20 W (Max)
Dimensions
4.6" H x 5.8" D x 12.75" W
Weight
5.4 lbs
Operating Temp.
23 to 95°F (-5 to 35°C)
Storage Temp.
-4 to 185 °F (-20 to 85 °C)
Humidity
up to 95%RH (No Condensation)
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-Port Quad HDMI KVM
HDN-4QUAD-S 1 Switch with USB 2.0 and
Audio Sharing
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20160930
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

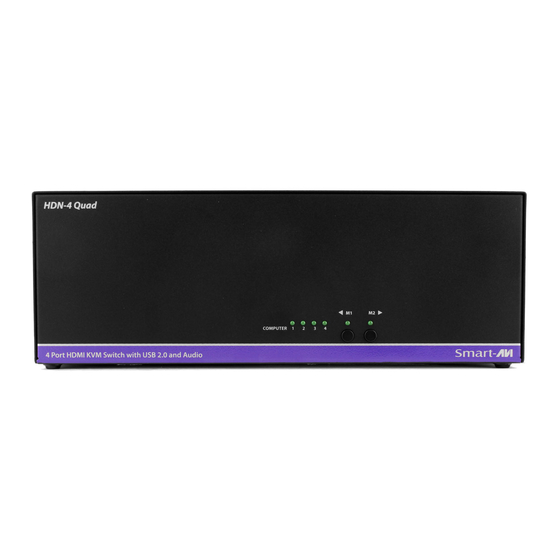

HDN‐4 Quad
4-Port Quad HDMI KVM
Switch with USB 2.0 and
Audio Sharing
Quick Start Guide
