Close the Cover

• Hold the cover up and connect the top hinge points between the two halves.
• Position the top cover with the pins in the base plate openings.
• Swing the top half downward until it snaps in place. The electrical pins at the
bottom will slide into the terminal strips.

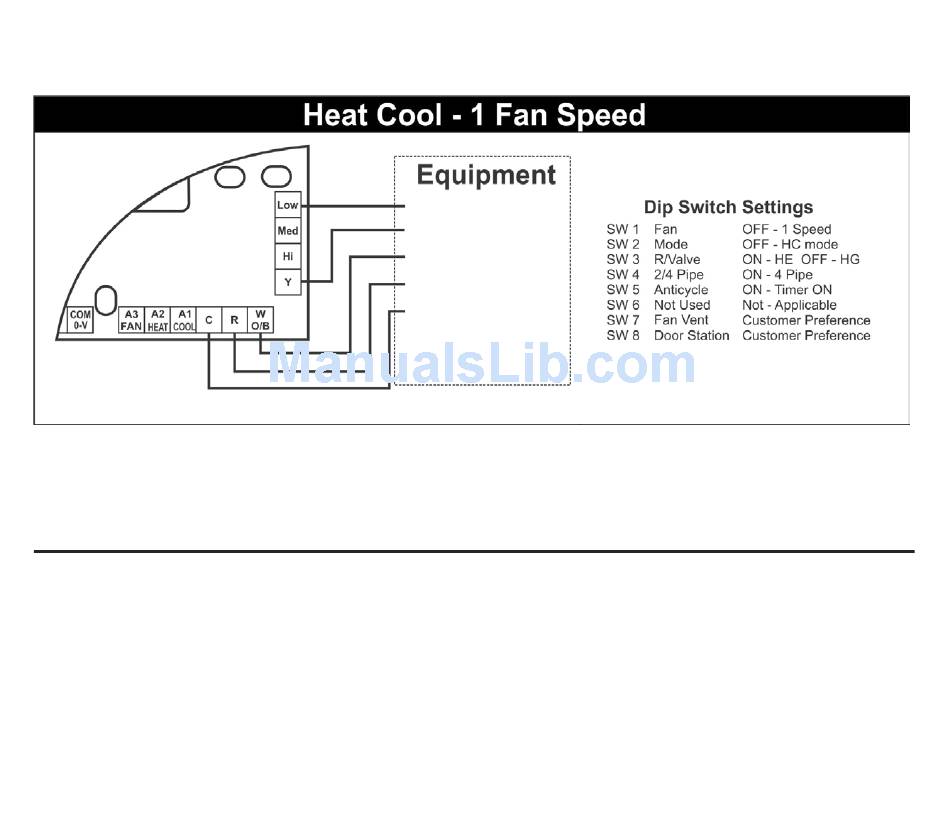

Fan
Cool
Heat
24 V AC
24 C Neutral
Figure 5
9
