Controls And Functions - WAGNER PaintReady System Owner's Manual

Controls and
Functions
Start
Notice:
Review the information on this page to familiarize
yourself with the controls and functions of your
unit.
ON/OFF switch:
The ON/OFF switch turns power
to the turbine on and off. The
ON/OFF switch is located on top
of the carrying handle of the
turbine.
Air pressure control dial:
The air pressure control dial
adjusts the level of air pressure
produced by the turbine.
+
-
Adjustment ring:
The adjustment ring determines
the width of the spray pattern
(white gun only).
Material flow adjustment:
The material flow adjustment
controls the amount of spray
material that is sprayed from the
spray gun.
3

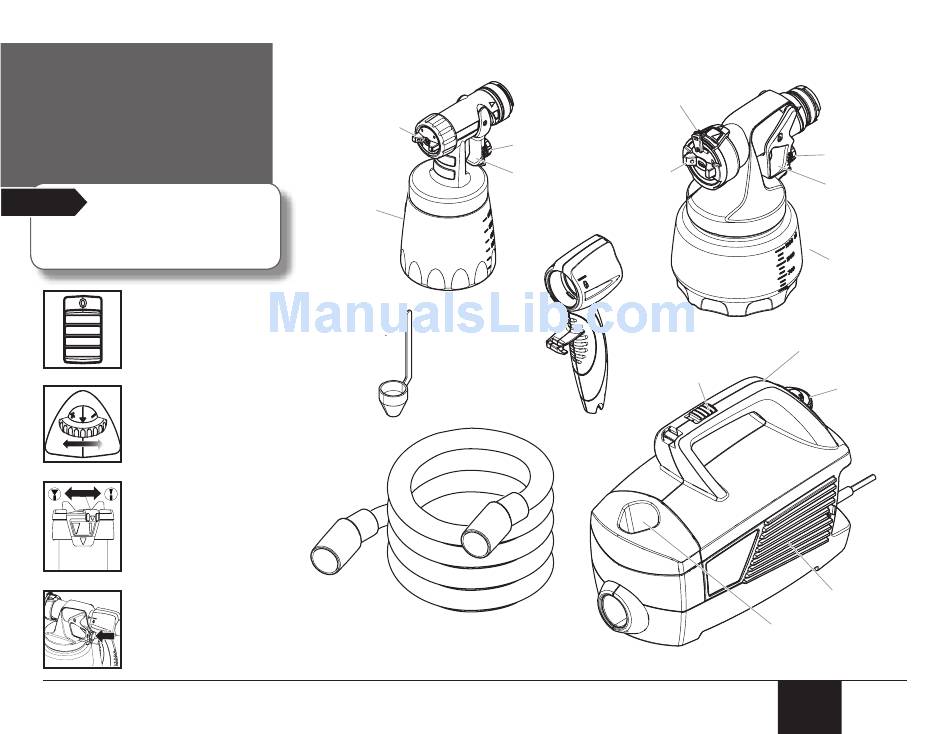

Yellow Spray Gun
Air cap
Material
container
Spray gun
handle
Viscosity
cup
Air hose
Adjustment ring
Material flow
adjustment
Trigger Air cap
ON / OFF switch
White Spray Gun
Material flow
adjustment
Trigger
Material
container
Turbine
handle
Air pressure
control dial
Turbine
Filter housing
(both sides)
Spray gun holder
English
