Assembly

Notice:
Start
Your unit includes two spray guns. See below to
determine the correct spray gun for your spraying
project.
Yellow spray gun -
designed for spraying
thinner materials, such
as oil-based stains and
thinned paints. The
yellow spray gun leaves a
smooth finish.
white spray gun -
designed for spraying
thicker materials, such as
latex paints and stains.
Spraying with this gun will
leave a slightly coarser
finish that is between
a roller and fine-finish
sprayer.
note: These two spray guns have different spray
pattern / width controls. Make sure to familiarize
yourself with the controls on each spray gun
head. See the "Spraying" section, page 6-7.
English
1

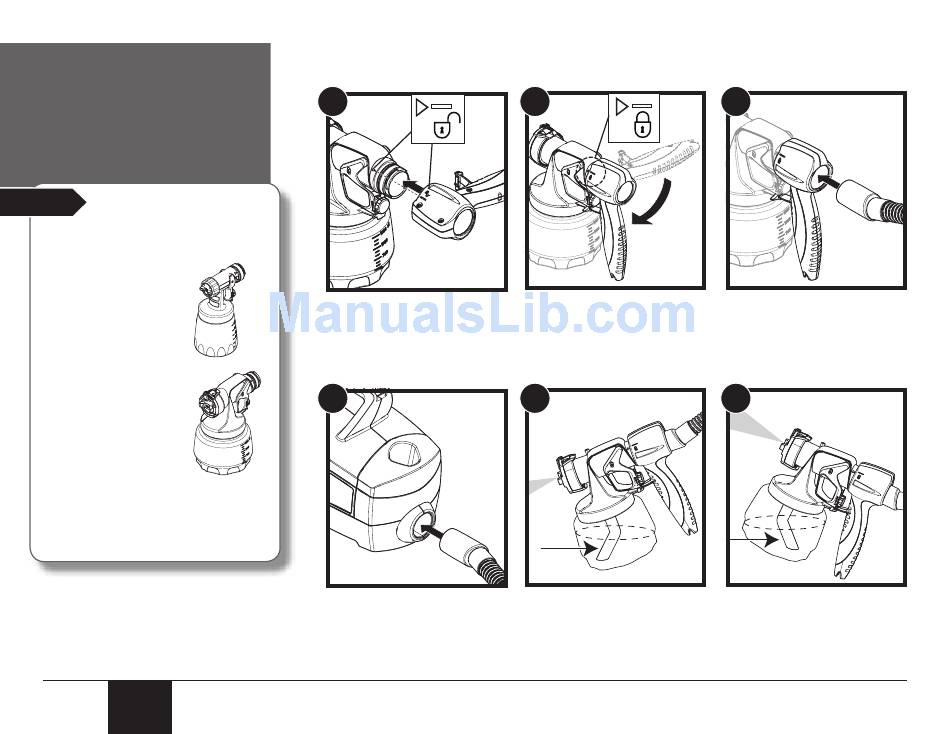

1. Align the arrow on the spray gun
with the "unlock" symbol on the
spray gun handle.
4
4. Insert the air hose tightly into the
connection into the turbine. The
connections can be positioned as
desired.
2
2. Insert and twist the spray gun
into the handle toward the "lock"
symbol on the spray gun handle.
The tab below the trigger will
lock the two pieces into place.
5
5. align the suction tube -
If you are going to be spraying in
a downward direction, the angled
end of the suction tube should be
pointing toward the front of the
gun.
3
3. Insert the air hose tightly into
the connection on the spray
handle. The connection can be
positioned as desired.
6
6. If you are going to be spraying in
an upward direction, the angled
end of the suction tube should be
pointing toward the rear of the
gun.
