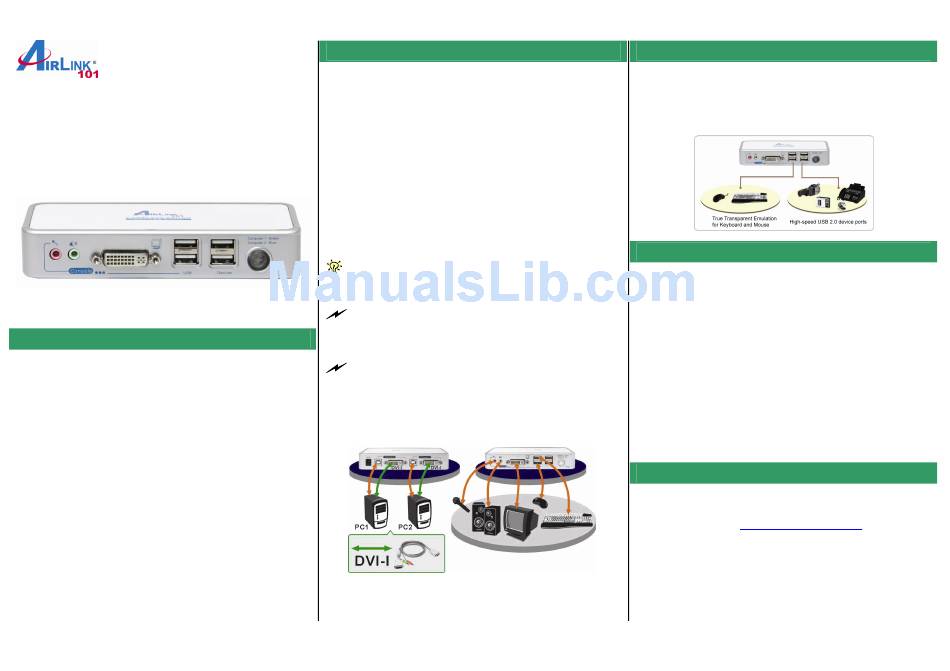

Airlink101 AKVM-2UDA Quick Installation Manual

Quick Installation Guide
2-Port DVI USB KVM Switch with Audio
Model# AKVM-2UDA
Section 1
Introduction

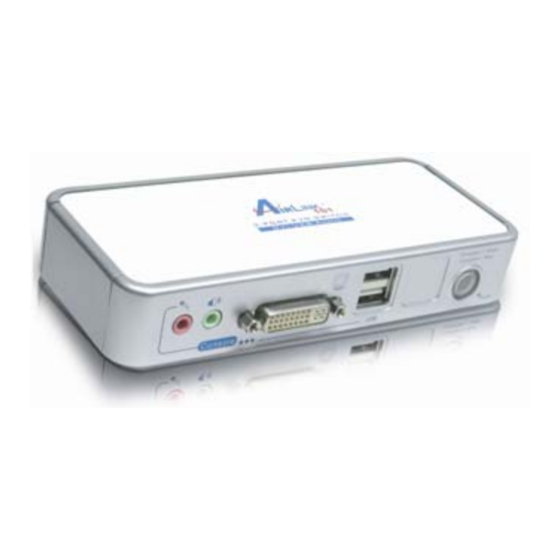

The AKVM-2UDA is a 2-port Slim Palmtop USB KVM Switch
with audio switching function. It features the latest True
Transparent USB (TTU) Emulation Technology. The TTU
Technology ensures ultimate compatibility with all types of
advanced keyboards and mice, giving users the best experience
in seamless KVM Switching, either in gaming or any other
critical computer operations. It allows you to access, control,
boot and reboot 2 DVI-enabled USB multimedia computers. The
independent audio/mic switching function allows an
uninterrupted audio experience on a same connected computer
even when you switch to another computer.
This KVM Switch adopts the DVI technology for digital video
signal transmission over the cable to reduce undesired distortion
from conventional analog/digital conversion. Both digital video
(1920 x 1200) and analog video (2048 x 1536) are supported.
Section 2
Installation
Step 1 Connect the shared USB keyboard, mouse, monitor,
speaker/headphone and microphone each to its port on your
KVM Switch. Make sure keyboard and mouse are connected to
the 2 USB ports on the left. After these connections (especially
the monitor connection) are made, then plug in the power
adapter to Power receptacle on the back panel.
Step 2 Connect each KVM PC port to a computer, using
the slim 3-in-1 KVM combo cable and the audio/mic cable.
After you have connected the KVM and computers
properly, you can operate the KVM Switch immediately.
If you need to connect a computer with an analog video display
(HDB15) to the KVM switch, you need to use a HDB15-DVI adapter
for connection.
Some older computers with USB interface might need to manually
enable the USB option in the BIOS settings before you can use any
USB devices. If your USB interface does not work, please check the
USB option in the BIOS.
If you use Windows 95/98/SE or Mac OS and has not yet installed a
USB mouse on your computer, there might be an error message
telling you that mouse is not detected and prompting you to decide
whether to ignore the same message in the future, and yet you will
find there is no mouse movement to disable this message....So it is
suggested that you should installed your USB mouse on your
computer first, before connecting it to this KVM Switch.
Sharing High-speed USB Device
There are 4 x USB ports on the front-panel. The 2 x USB ports
on the left are reserved only for keyboard and mouse; While the
other 2 x USB ports on the right are for connecting with other
USB 2.0 devices.
Section 3
Operations
There are two methods to control your KVM Switch for PC and
Audio channel selection: using (1) the face-panel push button, (2)
the hotkey sequences.
Face-panel Push Button: The Switch Button let you directly
change between the computers. Simply press the button on the
KVM to select the computer.
Hotkey Sequence: The Hotkey Sequence consists of three
specific keystrokes pressed on the keyboard.
ScrLK + ScrLK + [Command key(s)]
Please refer to the Quick Reference Sheet in next page.
Section 4

Technical Support

Email: support@airlink101.com
Toll Free: 1-888-746-3238
Web Site: www.airlink101.com
Copyright © 2008 AirLink101®. All rights reserved. AirLink101®, the stylized AirLink101
logo, specific product designations, and all other words and logos that are identified as
trademarks and/or service marks are, unless noted otherwise, the trademarks and service
marks of AirLink101. All other product or service names are the property of their respective
holders. AirLink101 products are protected under numerous U.S. and foreign patents and
pending applications, mask work rights, and copyrights.
