Airlink101 ASW305 Quick Installation Manual

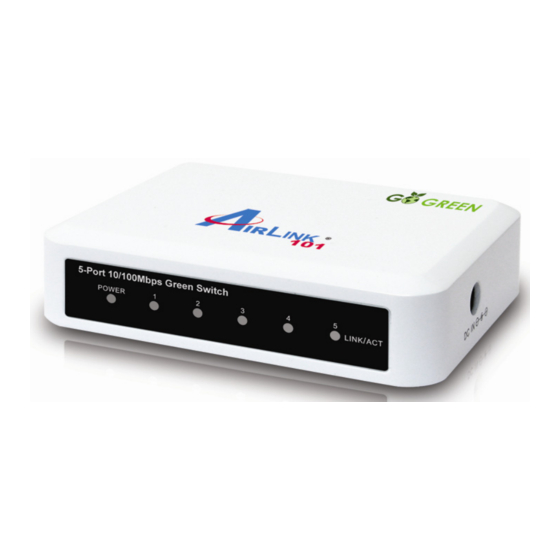

5-port 10/100 mbps green switch
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

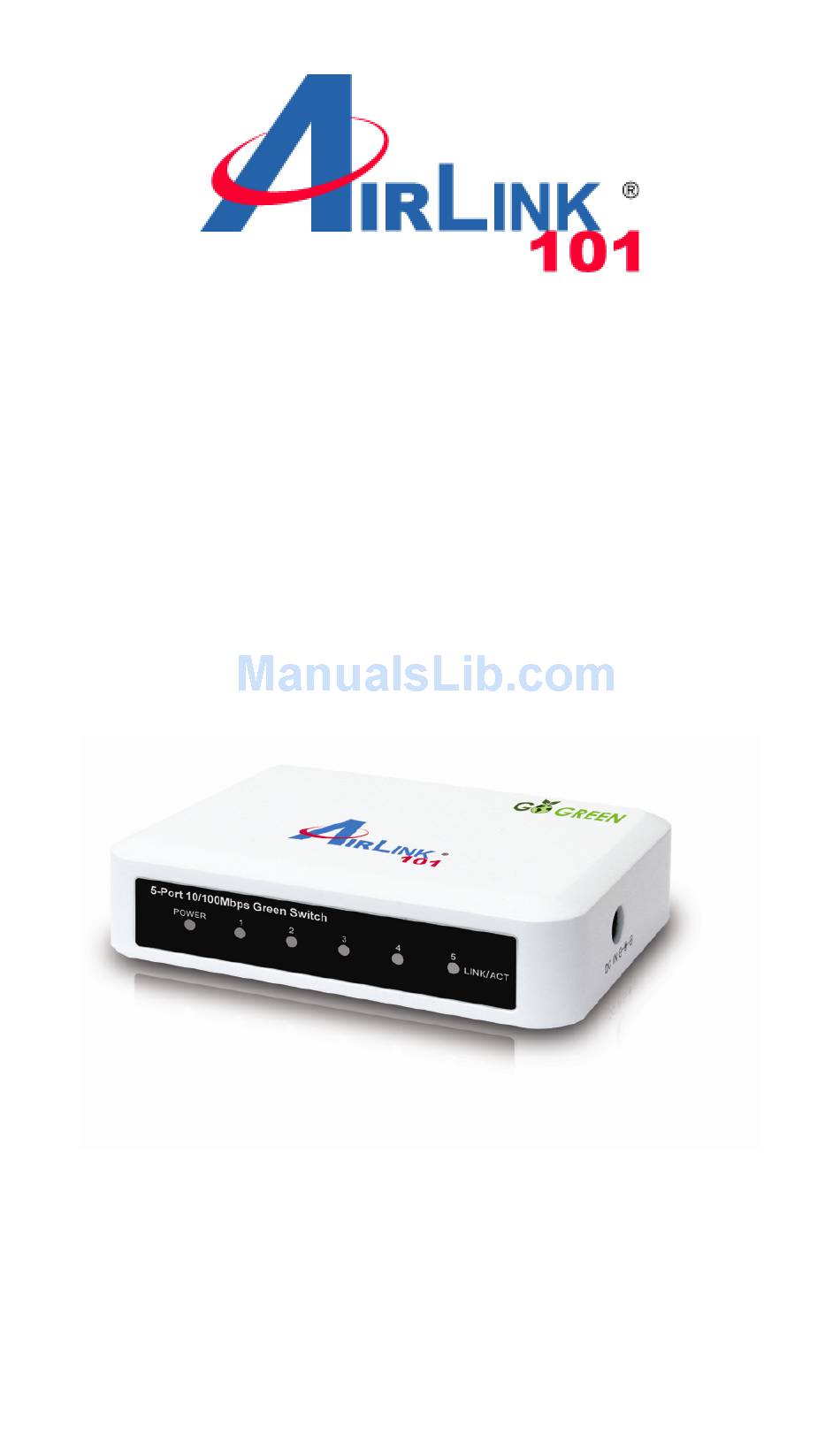

Quick Installation Guide
5-Port 10/100 Mbps
Green Switch
Model# ASW305
Ver. 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASW305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 ASW305

Summary of Contents for Airlink101 ASW305

  • Page 1 Quick Installation Guide 5-Port 10/100 Mbps Green Switch Model# ASW305 Ver. 1A...
  • Page 2 Ethernet devices like computers, IP cameras, and Network Attached Storage (NAS) onto your network quickly and easily. The Green EEE (Energy Efficient Ethernet) technology of ASW305 automatically reduces the power usage when a connected port is detected inactive (idle or cable-unplugged) and intelligently allocates less power for a port that connects with an Ethernet cable shorter than 20m (66 ft)*.

  • Page 3: Hardware Description

    Section 1 Hardware Description Front Panel LED Indicators Color POWER Green LNK/ACT Green Rear Panel Item Name Description Power Power connector, DC 8V / 0.6A. 1 - 5 10/100 Mbps LAN ports 1 to 5. Status Description The switch is powered on. The switch is powered off.

  • Page 4: Connecting The Switch

    Section 2 Connecting the Switch Note: Operating Environment This switch must be installed and operated within the limits of specified operating temperature (32~131 Non-condensing). Do not place objects on top of the unit. Do not obstruct any vents at the sides of the unit. Do not position the unit near any heating source such as heater, radiator, or direct exposure to sun.

  • Page 5: Troubleshooting

    Section 3 1. Power LED is not lit • Check if the power adapter is properly connected to the power outlet. Make sure the power jack is firmly plugged into the power socket of the switch. 2. Link/Activity is not lit when connect to 10/100 Mbps device •...

  • Page 6: Technical Support

    Section 4 Technical Support E-mail: support@airlink101.com Website: www.airlink101.com *Power savings may vary depending on products used. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifications are subject to change without notice. All rights reserved. Copyright © 2011 AirLink101®.
