Airlink101 AGSW801 Quick Installation Manual

8-port 10/100/1000mbps green switch
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Quick Installation Guide
8-Port 10/100/1000Mbps
Green Switch
Model# AGSW801
Ver. 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGSW801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 AGSW801

Summary of Contents for Airlink101 AGSW801

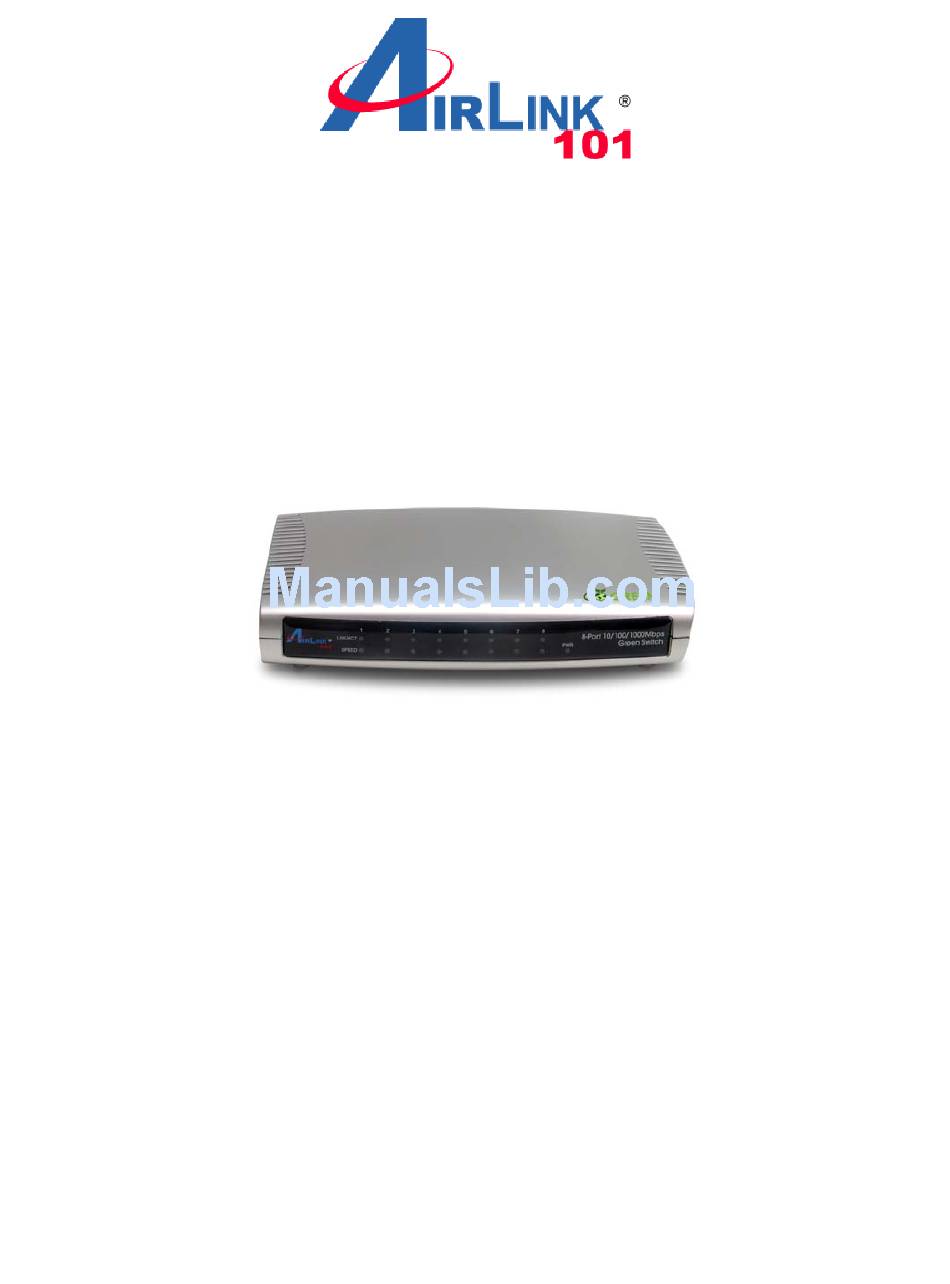

  • Page 1 Quick Installation Guide 8-Port 10/100/1000Mbps Green Switch Model# AGSW801 Ver. 1A...

  • Page 2: Hardware Description

    Ethernet devices like computers, IP cameras, and Network Attached Storage (NAS) onto your network quickly and easily. The Green Ethernet technology of AGSW801 automatically reduces the power usage when a connected port is detected inactive (idle or cable-unplugged) and intelligently allocates less power for a port that connects with an Ethernet cable shorter than 20m (66 ft)*.
  • Page 3 LED Indicators Color Status Green LNK/ACT Green Flashing Yellow On Green/ SPEED Green On Yellow Rear Panel Ports Item Name Description Power Power connector, DC 12V / 1A. 1 - 8 10/100/1000Mbps LAN ports 1 to 8. Description The switch is powered on. The switch is powered off.

  • Page 4: Connecting The Switch

    Section 2 Connecting the Switch Note: Operating Environment This switch must be installed and operated within the limits of specified operating temperature (32~131 F) and humidity (10~90% Non-condensing). Do not place objects on top of the unit. Do not obstruct any vents at the sides of the unit.

  • Page 5: Troubleshooting

    Section 3 Troubleshooting 1. Power LED is not lit • Check if the power adapter is properly connected to the power outlet. Make sure the power jack is firmly plugged into the power socket of the switch. 2. Link/Activity is not lit when connect to 10/100/1000Mbps device •...

  • Page 6: Technical Support

    Section 4 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Website: www.airlink101.com *Power savings may vary depending on products used. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifications are subject to change without notice. All rights reserved. Copyright © 2009 AirLink101®.
