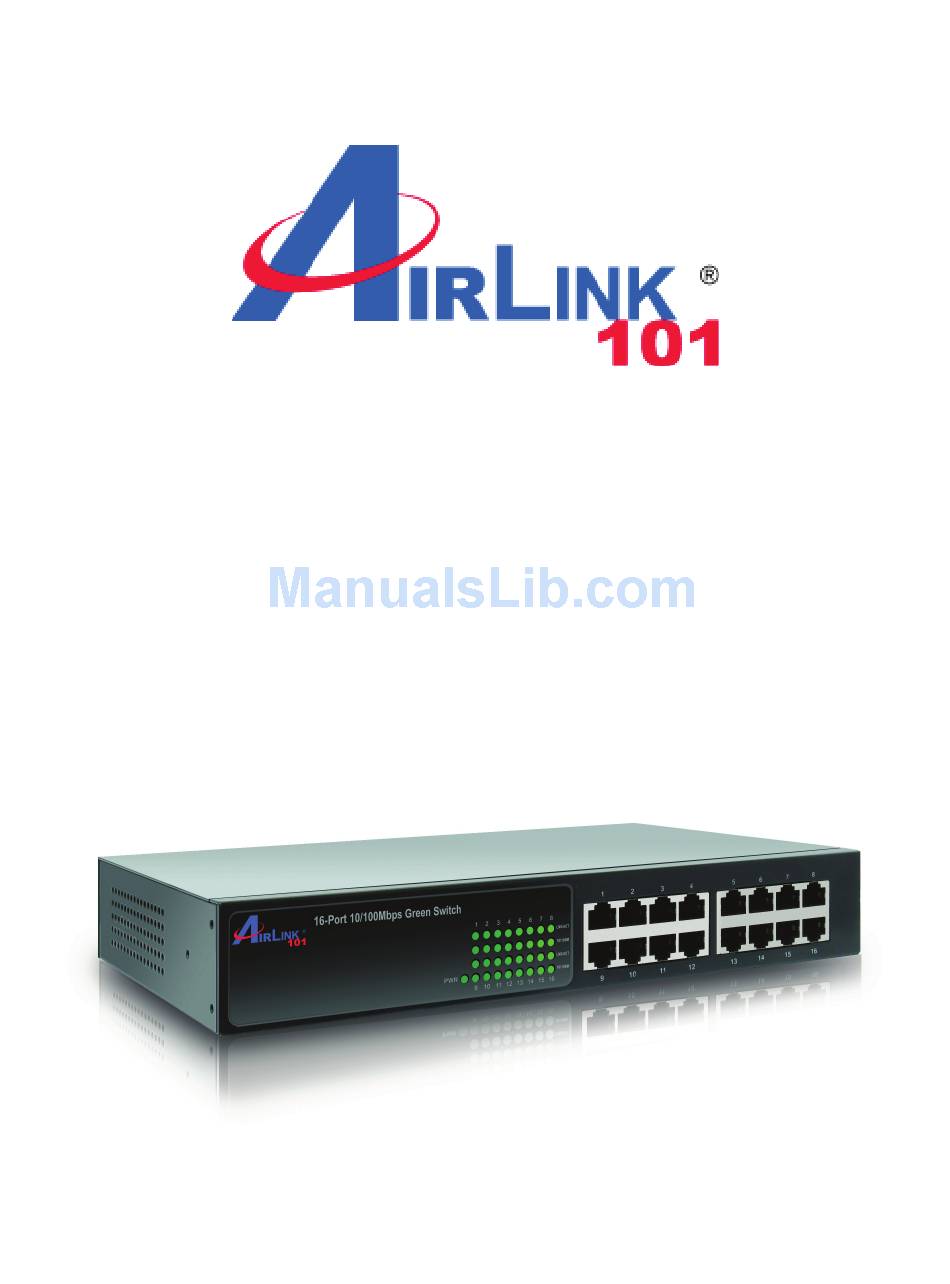

- Page 1 Quick Installation Guide 16-Port 10/100Mbps Green Switch Model# ASW316v2 Ver. 1A...
- Page 2 Trademarks Copyright © 2011 Airlink101® Airlink101® is a registered trademark. All other trademarks belong to their respective proprietors. Copyright Statement No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Phoebe Micro, Inc.
- Page 3 Attached Storage (NAS) to your network quickly and easily. The Green EEE (Energy Efficient Ethernet) technology of ASW316v2 automatically reduces the power consumption when a connected port is detected inactive (idle or cable-unplugged) and intelligently allocates less power to the port that connects with an Ethernet cable shorter than 20m (66 ft).
-
Page 4: Hardware Description

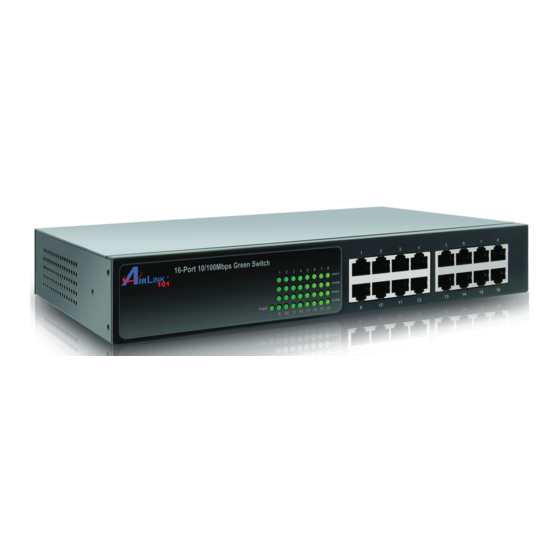

Section 1 Hardware Description 1.1 Hardware Interface x 16-Port 10/100Mbps auto-negotiation RJ45 Ports x All ports support auto MDI/MDIX, no need to use cross-over cables 1.2 Panel 1.2.1 Front Panel The front panel of the Switch consists of LED indicators, and 16 10/100Mbps ports. - Page 5 1.2.2 Rear Panel Figure 1-2 Rear Panel View of the Switch x AC Power Connector: Supports AC 100~240V, 50~60Hz. NOTE: Do not cover or put anything on or surrounding the Switch while the Switch is operating. 1.2.3 LED Indicators Information The front panel LEDs provide instant status feedback and help monitoring and troubleshooting when needed.
- Page 6 x POWER: Power Indicator Status Color Solid Blinking The Switch is Green No power power-on x Port 1~16 10/100Mbps Status LEDs Status Color Solid Blinking Connected but no The port is LINK/ activities on transmitting Green or receiving No link 10/100Mbps data at Ethernet...
-
Page 7: Installing The Switch
Section 2 Installing the Switch The site where you place the Switch may greatly affect its performance. 2.1 Installation Please follow the below guidelines to install the Switch: x Please install the Switch in a fairly cool and dry place. Please refer to the Technical Specifications for the acceptable temperature and humidity operating ranges. -
Page 8: Rack Installation
2.3 Rack Installation The Switch is rack-mountable and can be installed on an EIA 11-inch equipment rack. To do this, first install the mounting brackets on the Switch’s side panels (one on each side), secure them with the included screws, and then use the screws provided with the equipment rack to mount the Switch. -
Page 9: Connecting The Switch
Section 3 Connecting the Switch This section describes how to connect the Switch to your 10/100Mbps Ethernet network. Your network device (i.e. router, computer, switch, IP Camera, VoIP) can be connected to any port of the Switch via a two-pair UTP Category 5 Cable. If the LED indicators do not light up after making a proper connection, check your network device, the cable, the Switch conditions and connections. -
Page 10: Troubleshooting
Section 4 Troubleshooting 1. Power LED is not lit x Check if the power adapter is properly connected to the power outlet. Make sure the power jack is firmly plugged into the power socket of the switch. 2. Link/Activity is not lit when connect to 10/100Mbps device x Check the power switch of the network device attached to the switch;... -
Page 11: Technical Specifications
Section 5 Technical Specifications Standards x IEEE 802.3 10BASE–T, IEEE 802.3u 100BASE–TX, IEEE 802.3x Flow Control and IEEE 802.3az(EEE – Energy Efficient Ethernet) Network Cables x Ethernet (10Base-T) Cables: 2-pair UTP Cat. 3, 4, 5; up to 100m x Fast Ethernet (100Base-T) Cables: 2-pair UTP Cat. 5; up to 100m Ports x 16 x 10/100Mbps Auto-Negotiation RJ45 Port... - Page 12 x Fast Ethernet: 100/200Mbps – Half/Full Duplex x Power: Green x Link/Activity: Green x 10/100M: Green Rack Mount x 11-Inch Rack-Mountable with mounting kits Dimensions x 11 x 6.6 x 1.7in(280x165x45mm) LxWxH Weight x 1200g(2.6 lb) Physical and Environmental x Power Input: 100~240V AC, 50~60Hz x Operation Temperature: 0 °C ~ 40°C(32 ~ 104°F) x Storage Temperature: -20°C ~ 70°C(-4 ~ 158°F) x Humidity: 5% ~ 90% RH, non-condensing...
-
Page 13: Technical Support
Section 6 Technical Support E-mail: support@airlink101.com Toll-Free: 1-888-746-3238* Web Site: www.airlink101.com * Free Voice Technical Support is only available within the hardware warranty (1-Year Limited Warranty from the date of purchase). Customer is required to provide invoice as purchase evidence. **Network conditions and environmental factors as well as network overhead can lower actual data throughput rate.
