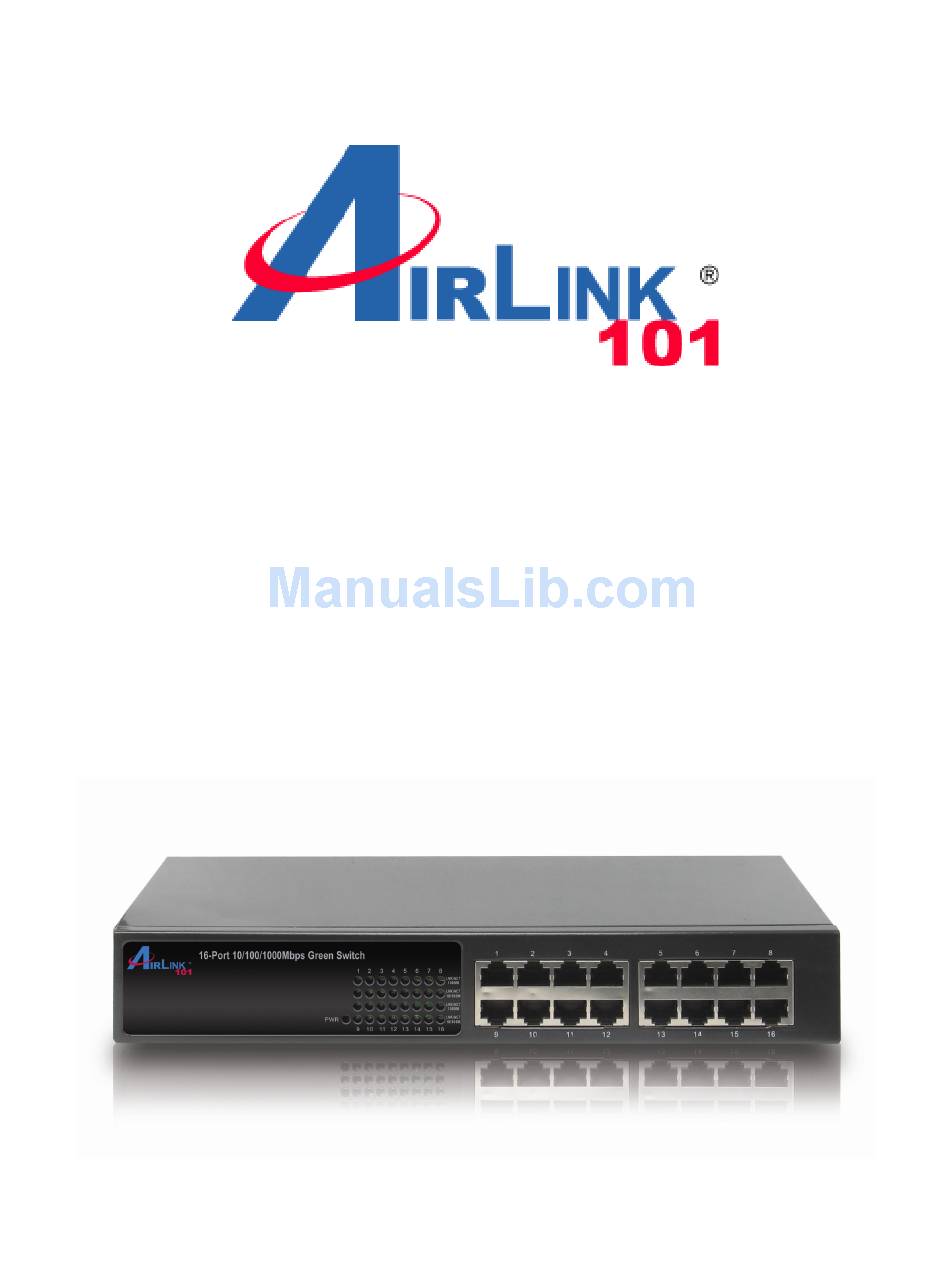

  • Page 1 Quick Installation Guide 16-Port 10/100/1000Mbps Green Switch Model# AGSW1600 Ver. 1A...
  • Page 2: Copyright Statement

    Trademarks Copyright © 2011 Airlink101® Airlink101® is a registered trademark. All other trademarks belong to their respective proprietors. Copyright Statement No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Phoebe Micro, Inc.
  • Page 3 Network Attached Storage (NAS) onto your network quickly and easily. The Green EEE (Energy Efficient Ethernet) technology of AGSW1600 automatically reduces the power usage when a connected port is detected inactive (idle or cable-unplugged) and intelligently allocates less power for a port that connects with an Ethernet cable shorter than 20m (66 ft)*.
  • Page 4: Hardware Description

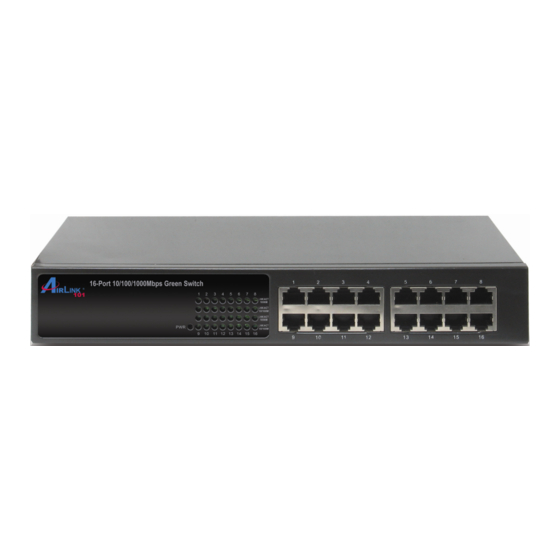

    Section 1 Hardware Description 1.1 Hardware Interface • 16-Port 10/100/1000Mbps auto-negotiation RJ45 Ports • All ports support auto MDI/MDIX, no need to use cross-over cables 1.2 Panel 1.2.1 Front Panel The front panel of the Switch consists of LED indicators, and 16 10/100/1000Mbps ports.
  • Page 5 1.2.2 Rear Panel Figure 1-2 Rear Panel view of the Switch • AC Power Connector: Supports AC 100~240V, 50~60Hz. NOTICE: Do not cover or put anything on or surrounding the Switch while the Switch is operating. 1.2.3 LED indicators information The front panel LEDs provide instant status feedback and help monitoring and troubleshooting when needed.
  • Page 6 • POWER: Power Indicator Status Color Solid Blinking The Switch is POWER Green No power power-on • Port 1~16 10/100/1000Mbps Status LEDs Status Color Solid Blinking respective port is The port is LINK/ successfully transmitting or Green connected to receiving data No link 10/100M 10/100Mbps...
  • Page 7: Installing The Switch

    Section 2 Installing the Switch The site where you place the Switch may greatly affect its performance. 2.1 Installation Please follow the guidelines below to install the Switch: • Please install the Switch in a fairly cool and dry place. Please refer to the Technical Specifications for the acceptable temperature and humidity operating ranges.
  • Page 8: Rack Installation

    2.3 Rack Installation The Switch is rack-mountable and can be installed on an EIA 11-inch equipment rack. To do this, first install the mounting brackets on the Switch’s side panels (one on each side), secure them with the included screws, and then use the screws provided with the equipment rack to mount the Switch.
  • Page 9: Connecting The Switch

    Section 3 Connecting the Switch This section describes how to connect the Switch to your 10/100/1000Mbps Ethernet network. Your network device (i.e. computer, switch, IP Camera, VoIP) can be connected to any port of the Switch via a two-pair UTP Category 5 Cable. If the LED indicators do not light up after making a proper connection, check your network device, the cable, the Switch conditions and connections.
  • Page 10: Troubleshooting

    Section 4 Troubleshooting 1. Power LED is not lit • Check if the power adapter is properly connected to the power outlet. Make sure the power jack is firmly plugged into the power socket of the switch. 2. Link/Activity is not lit when connect to 10/100/1000Mbps device •...
  • Page 11: Technical Specifications

    Section 5 Technical Specifications Standards • IEEE 802.3 10BASE–T, IEEE 802.3u 100BASE–TX, IEEE802.3ab 1000BASE-T Gbit. IEEE 802.3x Flow Control and IEEE 802.3az(EEE – Energy Efficient Ethernet) Network Cables • Ethernet (10Base-T): Cables: 2-pair UTP Cat. 3, 4, 5, Twisted Pair (UTP). Up to 100m •...
  • Page 12 • Power: Green • Link/Activity: 1000M(Blue), 10/100M(Green) Rack Mount • 11-Inch Rack-Mountable with mounting kits Dimensions • 280x165x45mm (LxWxH) Weight • 1200g Physical and Environmental • Power Input: 100~240V AC, 50~60Hz • Operation Temperature: 0 °C ~ 40°C(32 ~ 104°F) •...
  • Page 13: Technical Support

    Section 6 Technical Support E-mail: support@airlink101.com Toll-Free: 1-888-746-3238* Web Site: www.airlink101.com * Free Voice Technical Support is only available within the hardware warranty (1-Year Limited Warranty from the date of purchase). Customer is required to provide invoice as purchase evidence. **Network conditions and environmental factors as well as network overhead can lower actual data throughput rate.
