Intex Hydro Flow SM24101 Owner's Manual page 9

SETUP INSTRUCTIONS (continued)
B: For Intex Round Frame Pools

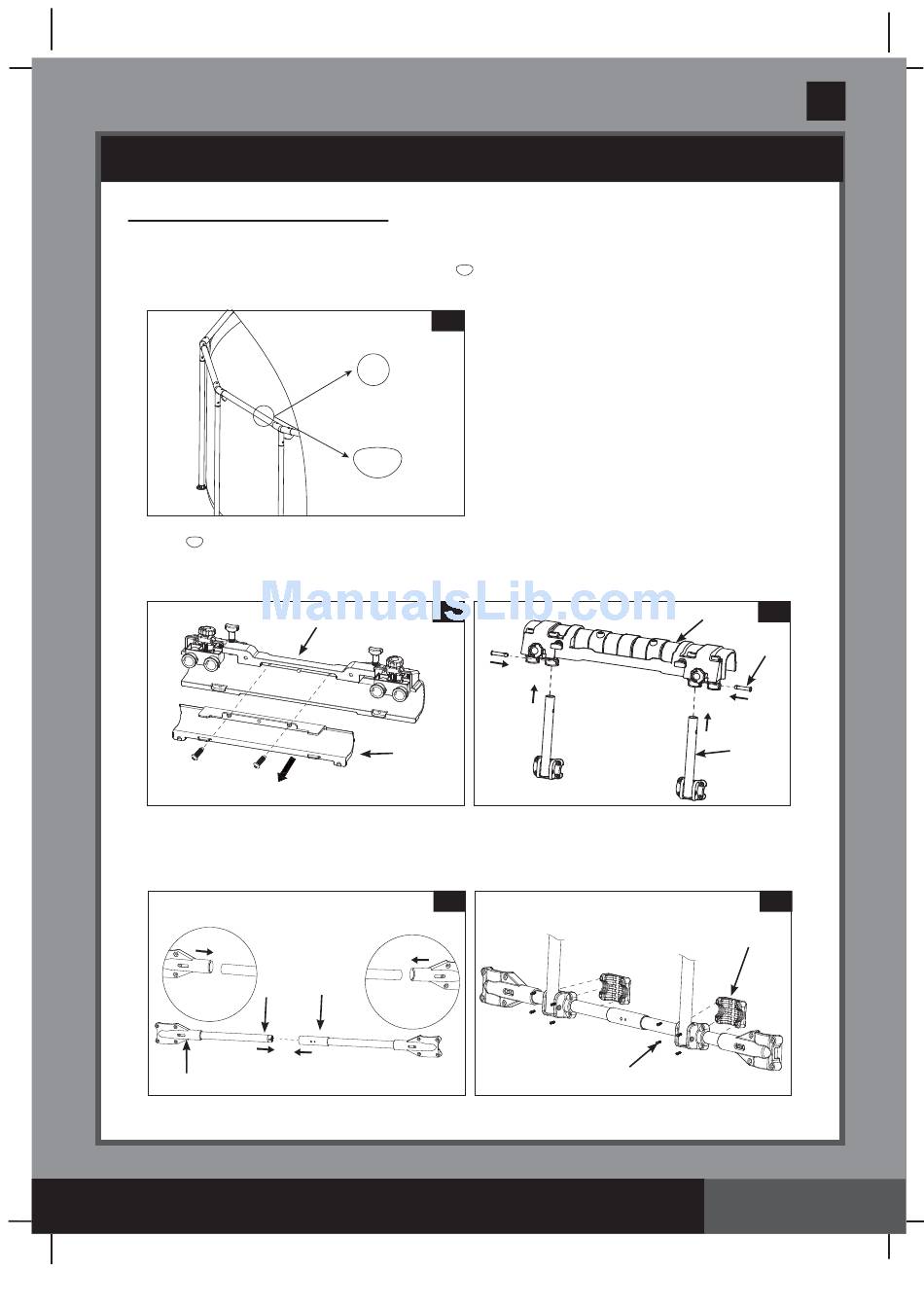

1. Mounting Bracket Assembly (see figures 4.1 to 4.5):
• Identify the frame pool pipe shape. For "
For "O" shape pipe see fi gure 4.3 to 4.5.
• For " " shape pipe, remove the bracket space fi ller (3) from the mounting bracket (2).
(see fi gure 4.2). For "O" shape pipe go to next step.
• Insert the bracket poles (6) into the mounting bracket (2) inner holes (see fi gure 4.3).
• Connect the horizontal pipe A (13) with horizontal pipe B (14) together, then attach
the horizontal pipe assembly to the mounting bracket assembly using the bracket
pole fi xer (7) and screws (8) (see fi gures 4.4 to 4.5).
14
12
SAVE THESE INSTRUCTIONS
(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5" X 10.3" PANTONE 295U 02/21/2017
" shape pipe see fi gure 4.2 to 4.5.
4.1
4.2
2
3
4.4
13
English
4.3
2
9
6
4.5
7
8
8
Page 9
303
PO
