SETUP INSTRUCTIONS (continued)

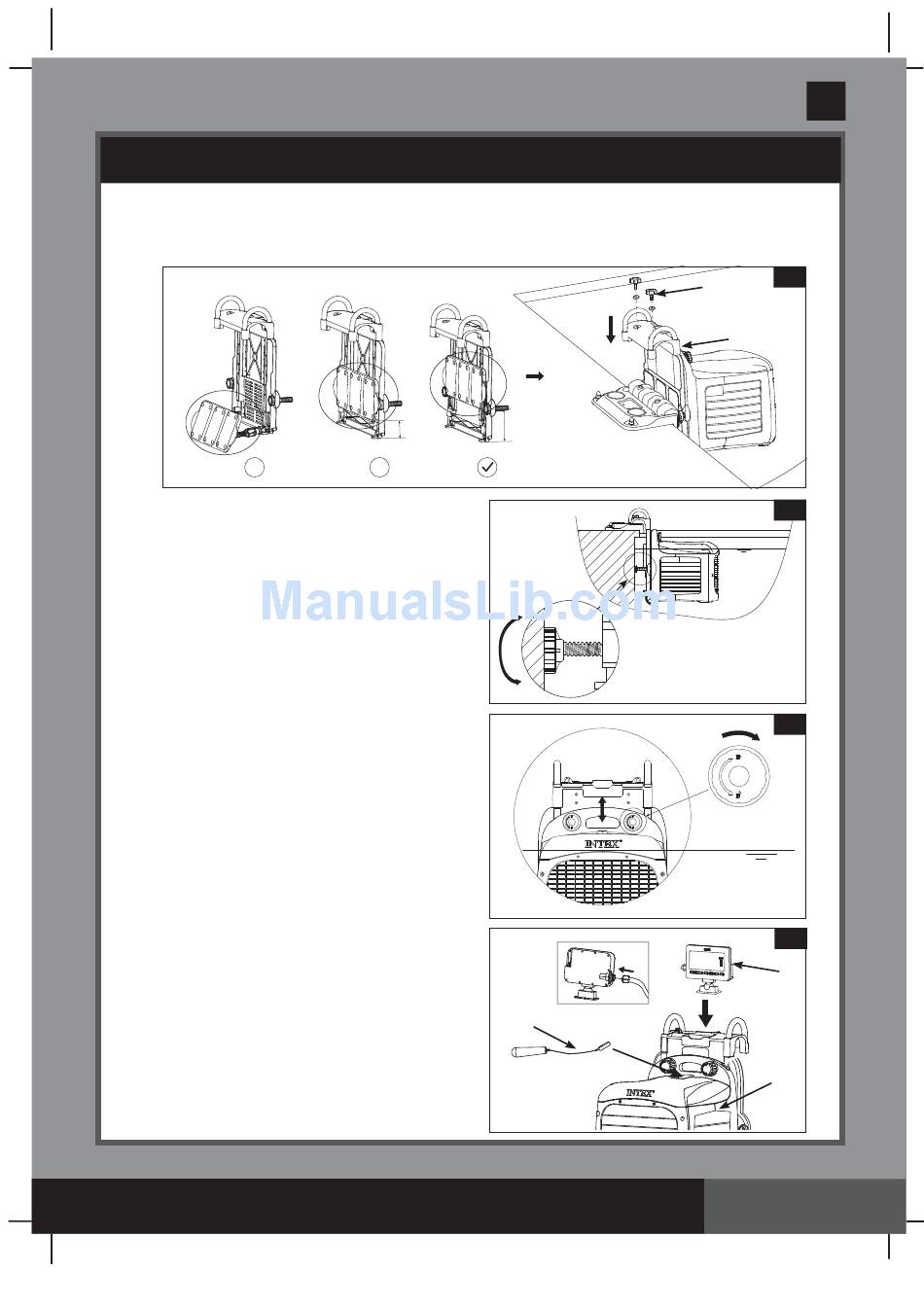

2. Swim-Trainer Unit Assembly (see fi gures 6.4 to 6.5).
• Be sure the swim-trainer unit "support bracket" is closed before installing the
swim-trainer unit onto the mounting bracket assembly (see fi gure 6.4).
X
• Adjust the support nuts on the
swim-trainer unit until the swim-trainer
unit is horizontal with the water surface
(see figure 6.5).
Swim-Trainer Unit height adjustment
and display panel assembly, for all
types of pools
1. The swim-trainer unit must be submerged
in water with only the top surface of the
housing exposed. Lock the nuts in place
after the height of the swim-trainer unit
is adjusted (see figure 7).
2. Attach the display panel (16) onto the
swim-trainer unit mounting bracket.
Connect the display cable plug to the
display panel receptacle. Tighten up the
display cable collar nut (see figure 8) by
hand. Make sure the display cable plug is
firmly attached and the collar nut is
securely tightened.
3. Place the flat magnetic end of the
emergency stop lanyard (19) on the
swim-trainer unit (32) housing in order
to activate the unit (see figure 8).
IMPORTANT: During an emergency
situation, pull the emergency stop
lanyard handle, the unit will stop and
the display panel will go blank.
SAVE THESE INSTRUCTIONS
