SETUP INSTRUCTIONS (continued)

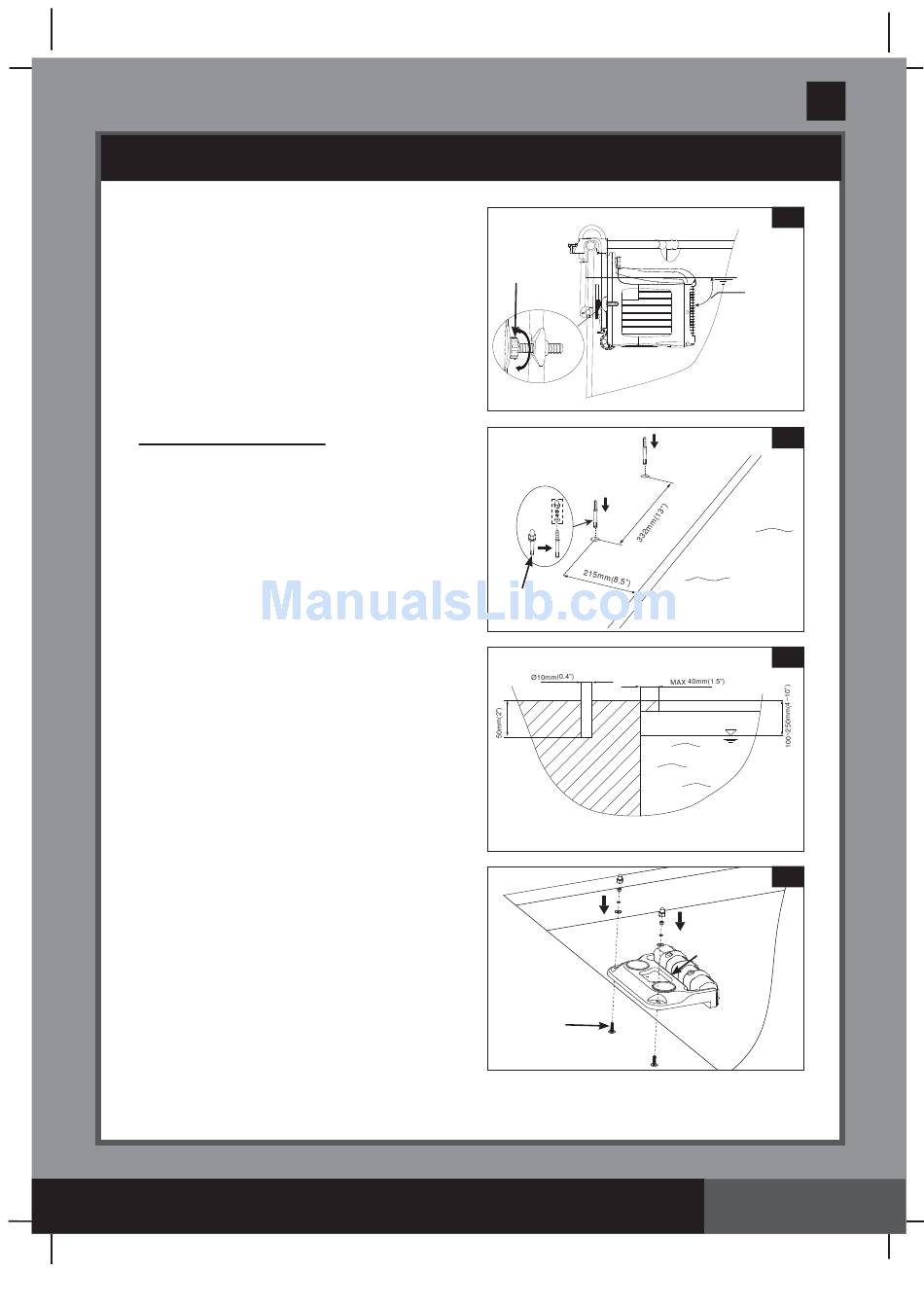

• Adjust the nut on the swimming machine
until the support plate is against the pool
wall and the swim-trainer unit is perfectly
horizontal (see figure 5.5).
C: For In Ground Pools
1. Mounting Bracket Assembly (see
figures 6.1 to 6.3):
• Make sure the top surface of the pool
edge is stable, flat and level.
• Pay attention to the electrical, gas and
water lines when drilling the holes.
• All screws provided must be used.
• Drill two holes on the center of the
short-end side of the pool edge where the
mounting bracket will be installed. Insert
the in ground pool screws (5) into the
holes, and make sure the screws are
fully inserted (see figures 6.1 to 6.2).
• Place the in ground pool mounting
bracket (1) over the installed screws (5)
and tighten the nuts securely
(see figure 6.3).
SAVE THESE INSTRUCTIONS
(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5" X 10.3" PANTONE 295U 02/21/2017
Ajustable nut
for adjusting the
distance
5
English
Water level
Water level
1
5
303
PO
5.5
90
Degree
6.1
6.2
6.3
