Parts Reference - Intex Hydro Flow SM24101 Owner's Manual

PARTS REFERENCE (continued)

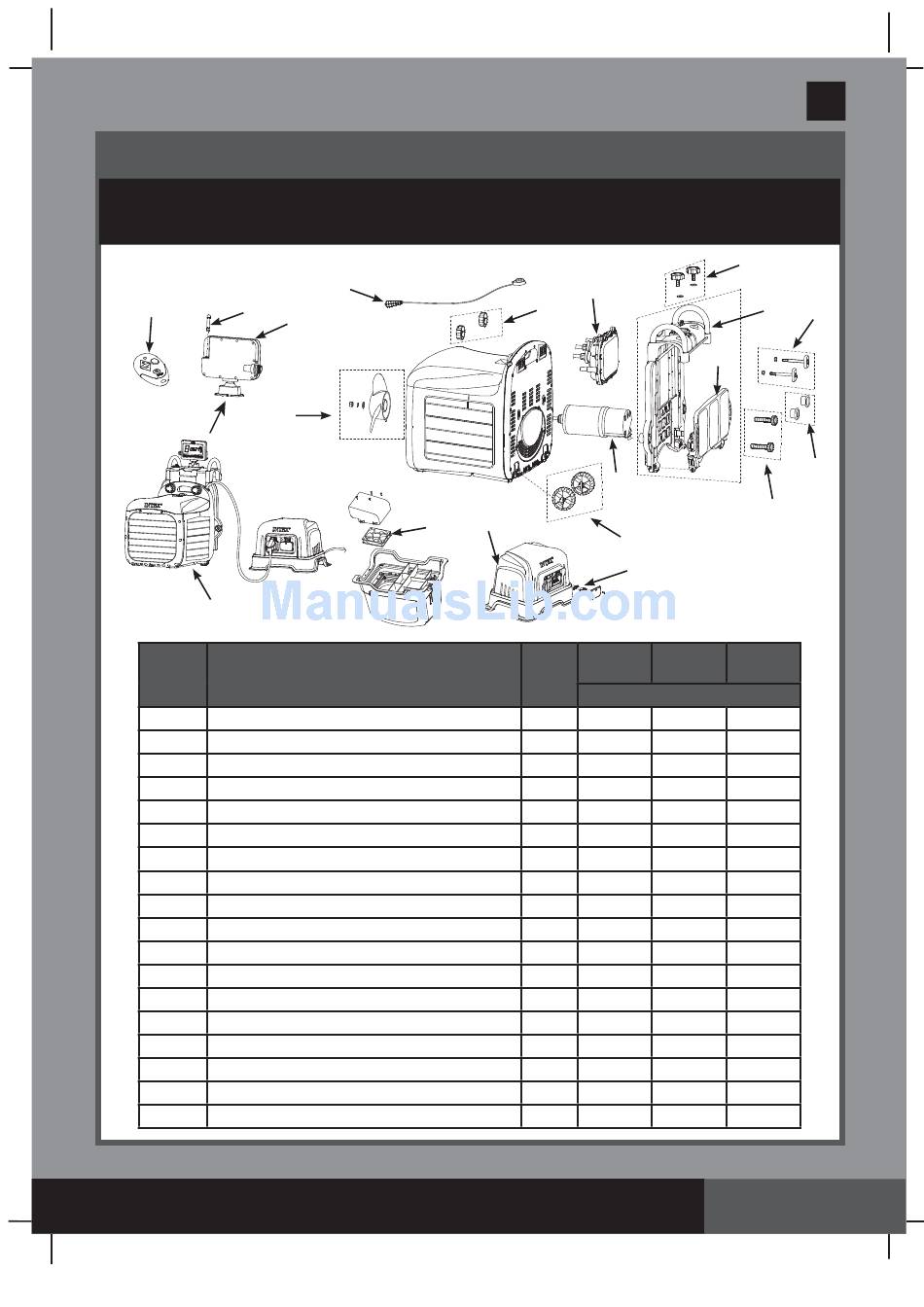

Before assembling your product, please take a few minutes to check the contents
18
17
16
31
32
REF. NO.
16 Display panel
17 Display panel antenna
18 Remote control
19 Emergency stop lanyard
20 Clamp knob
21 Circuitry box
22 Support bracket
23 Support plate
24 Adjustable bolt with nut
25 Anchor adjustable bolt
26 Wheels
27 Motor
28 Transformer
29 Transformer fuse
30 Transformer fan
31 Propeller kit
32 Swim-trainer unit
33 Adjustable bolt spacer
SAVE THESE INSTRUCTIONS
(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5" X 10.3" PANTONE 295U 02/21/2017
and become familiar with all the parts.
19
28
30
DESCRIPTION
English
21
20
27
26
29
Intex Rectangular
IGP
Frame Pool
POOL
QTY.
SPARE PART NO.
1 12379 12379
1 12391 12391
1 12381 12381
1 12374 12374
2 12395 12395
1 12387 12387
1 12398 12398
1 12399 12399
2 12397 12397
2 12390
-
2 12389 12389
1 12383 12383
1 12377 12377
1 12394 12394
1 12393 12393
1 12385 12385
1 12375 12375
2 12600 12600
303
PO
4
22
24
23
33
25
Intex Round Frame
Pool
12379
12391
12381
12374
12395
12387
12398
12399
12397
12390
12389
12383
12377
12394
12393
12385
12375
12600
Page 5
