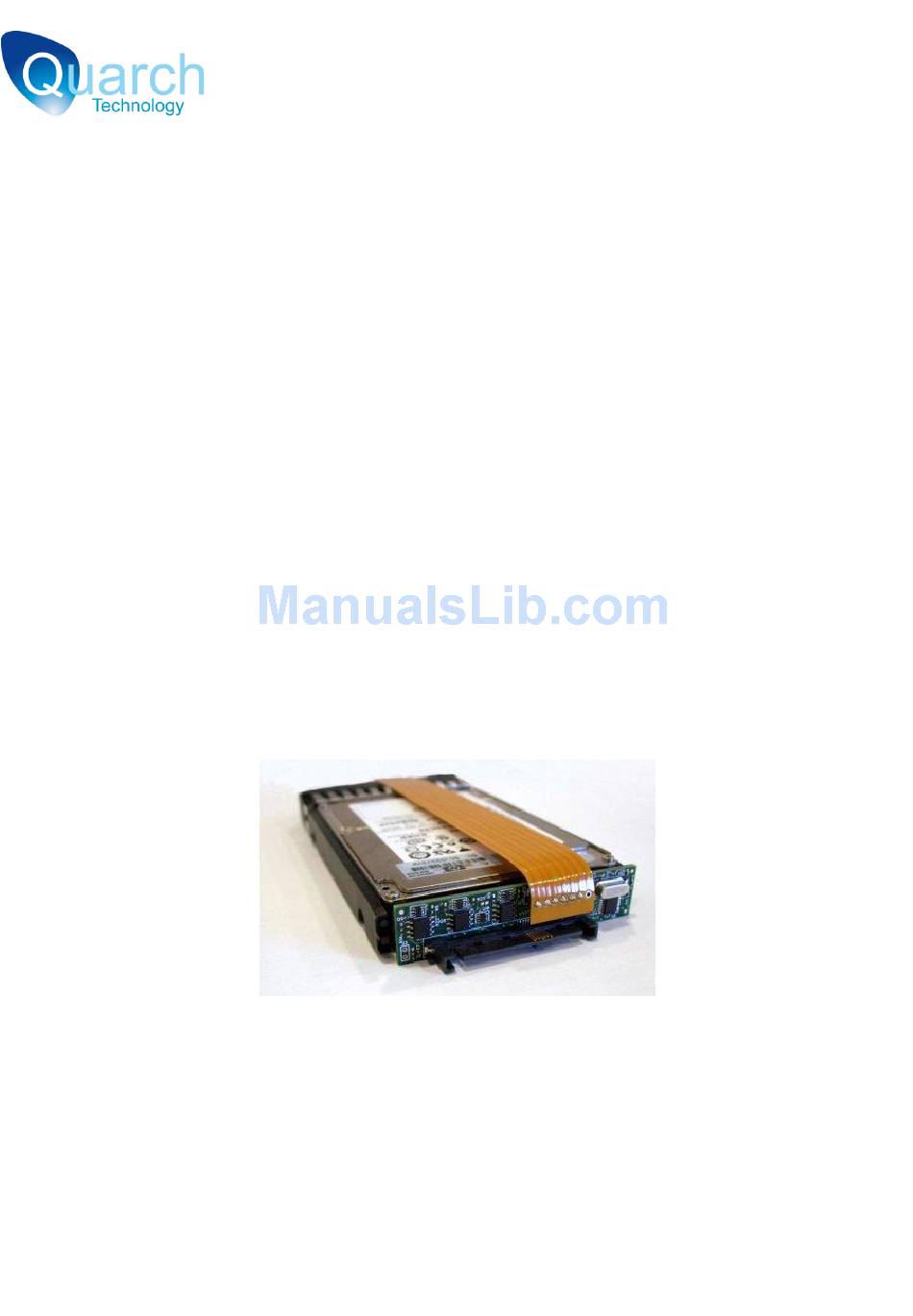

Torridon HS Lite Drive Control Module - Technical Manual
Quarch Technology Ltd
Torridon HS Lite Cable Pull Module
Technical Manual
For use with:
QTL1301 - Torridon HS Lite Drive Control Module
Using Quarch firmware version 3.5 and above
Monday, 15 November 2010
Revision 1.0
©Quarch Technology
Page 1 of 28

Advertisement

Table of Contents
loading

Summary of Contents for Quarch Technology Torridon HS

  • Page 1 Torridon HS Lite Drive Control Module - Technical Manual Quarch Technology Ltd Torridon HS Lite Cable Pull Module Technical Manual For use with: QTL1301 - Torridon HS Lite Drive Control Module Using Quarch firmware version 3.5 and above Monday, 15 November 2010 Revision 1.0...
  • Page 2 Torridon HS Lite Drive Control Module - Technical Manual Change History 15 November 2010 Initial Release Revision 1.0 ©Quarch Technology Page 2 of 28...

  • Page 3: Table Of Contents

    Torridon HS Lite Drive Control Module - Technical Manual Contents Introduction ..........................4 Technical Specifications ......................5 Switching Characteristics: ........................5 Mechanical Characteristics: ....................8 Control Interfaces ........................9 Drive Presence Support ......................10 GND pin P4 detection........................10 GND pin P6 detection........................10 P1/P2 continuity detection ......................

  • Page 4: Introduction

    Torridon HS Lite Drive Control Module - Technical Manual Introduction The Torridon HS Lite Drive Control Module allows remote switching of the SAS data, power supply rails and drive presence signal to a SAS or SATA Disk Drive for test automation or fault injection purposes.

  • Page 5: Technical Specifications

    Torridon HS Lite Drive Control Module - Technical Manual Technical Specifications Switching Characteristics: SAS Connector Pin Description Switching Action S1,S4,S7,S8,S11,S14,P5, SAS Data and Power All connected to digital Ground on the P10,P12 Ground Pins Module S2,S3,S5,S6,S9,S10,S12,S13 SAS Data Signal pins...
  • Page 6 Torridon HS Lite Drive Control Module - Technical Manual High Speed Switch Characteristics: Revision 1.0 ©Quarch Technology Page 6 of 28...
  • Page 7 Torridon HS Lite Drive Control Module - Technical Manual Revision 1.0 ©Quarch Technology Page 7 of 28...

  • Page 8: Mechanical Characteristics

    Torridon HS Lite Drive Control Module - Technical Manual Mechanical Characteristics: 15.3 (0.602) 2.7 (0.106) 69.85 (2.75) 4.8 (0.19) (4.00)  The Modules have the same cross section as a 2.5” disk drive, allowing them to fit into any 2.5” or 3.5” drive enclosure.

  • Page 9: Control Interfaces

    Torridon HS Lite Drive Control Module - Technical Manual Control Interfaces All Torridon Control Modules are designed to be used with a Torridon Array Controller (QTL1079) or a single Torridon Interface Card (QTL1144). The control cable is an ultra-thin Flex cable.

  • Page 10: Drive Presence Support

    Torridon HS Lite Drive Control Module - Technical Manual Drive Presence Support The module supports three different proprietary drive presence circuits, all are switched by the same control signal SPECIAL_1. If the detection circuits are not implemented on the backplane this circuitry should have no adverse effect on drive operation.
  • Page 11 Torridon HS Lite Drive Control Module - Technical Manual Revision 1.0 ©Quarch Technology Page 11 of 28...

  • Page 12: Basic Concepts

    Torridon HS Lite Drive Control Module - Technical Manual Basic Concepts Each switch on the Torridon control cards is called a ‘Signal’ and can be programmed to follow one of 6 programmable delay profiles (called ‘Sources’). This allows the user to sequence power and signal connections to the drive in up to six programmable steps.
  • Page 13 Torridon HS Lite Drive Control Module - Technical Manual Power up and Power down example: Hot-Swap ‘Plug’ Command Hot-Swap ‘Pull’ Command HOT_SWAP BUSY CONTROL SOURCE S1 CONTROL SOURCE S2 CONTROL SOURCE S3 3V3 Control (assigned to S1) 5V Control (assigned to S1)

  • Page 14: Signal Configuration

    Torridon HS Lite Drive Control Module - Technical Manual Signal Configuration Each signal that is switched by the module is usually assigned to one of the 6 timed sources, S1 – S6. Each signal can also be assigned directly to ’always off’ (source 0), ‘immediate change’ (source 7) or ‘Always on’...

  • Page 15: Power Up Vs. Power Down Timing

    Torridon HS Lite Drive Control Module - Technical Manual Power Up vs. Power Down Timing Each control source is always configured with power-up parameters; the power-down profile is automatically generated by the module, and is the mirror image of the power up:...

  • Page 16: Voltage Measurements

    Torridon HS Lite Drive Control Module - Technical Manual Voltage Measurements The modules are capable of measuring various voltages both for self test and to assist in the testing of a customer’s system. The following measurement points are available: Measurement Command...

  • Page 17: Default Startup State

    Torridon HS Lite Drive Control Module - Technical Manual Default Startup State On power up or reset, the control modules enter a default state. To make the module as easy to use as possible, the default state is a ‘standard’ hot-swap scenario with preset source and signal settings such that the “run:power up”...

  • Page 18: Controlling The Module

    Torridon HS Lite Drive Control Module - Technical Manual Controlling the Module The module can be controlled either by:  Serial ASCII terminal (such as HyperTerminal) This is normally used with scripted commands to automate a series of tests. The commands are normally generated by a script or user code (PERL, TCL, C, C# or similar).
  • Page 19 Torridon HS Lite Drive Control Module - Technical Manual Clear the terminal window and displays the normal start screen. Also runs the internal self test. The same action can be performed by pressing return on a blank line. *IDN? Displays a standard set of information, identifying the device. An example return is shown below...
  • Page 20 Torridon HS Lite Drive Control Module - Technical Manual CONFig:TERMinal ? Returns the current terminal mode DEPRECATED COMMANDS – Provided for backwards compatibility, we strongly suggest you use the ‘Signal’ and ‘Source’ commands instead. REGister:READ [0xAA] Returns the value of the register with address [0xAA]. [0xAA] should be in hex format and preceded by the suffix “0x”.
  • Page 21 Torridon HS Lite Drive Control Module - Technical Manual SOURce:[1-6|ALL]:DELAY [#ms] SOURce:[1-6|ALL]:DELAY? Sets the initial delay of a source in mS. The delay is entered as a decimal number with no units. E.g. “Source:1:delay 300”. SOURce:[1-6|ALL]:STATE [ON|OFF] SOURce:[1-6|ALL]:STATE? Sets or returns the enable state of the source. Any signals assigned to a disabled (off) source will immediately be disconnected and vice versa.
  • Page 22 Torridon HS Lite Drive Control Module - Technical Manual is the master control for all switches on the card. The same action can be performed by writing this bit directly. The command will fail if you order a power up when the module is already in the connected state and vice-versa as the action cannot be performed.

  • Page 23: Control Register Map

    Torridon HS Lite Drive Control Module - Technical Manual Control Register Map This map is provided for backwards compatibility with old modules only. While you can use the ‘Read’ and ‘Write’ commands, we STRONGLY recommend you use the SCPI based ‘Signal’ and ‘Source’...

  • Page 24: Register Definitions

    Torridon HS Lite Drive Control Module - Technical Manual Register Definitions Control Register 0x00 - Global Control RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED HOT_SWAP Name Description HOT_SWAP Setting this bit initiates a hot plug sequence, and clearing it initiates a hot pull Bit 0 controls the hot-swap state and can be read and written to.

  • Page 25: Source Registers

    Torridon HS Lite Drive Control Module - Technical Manual Source Registers Each source is setup by a block of 9 16-bit wide registers. Below is the register map for a generic source. The list of registers in the title indicates the actual address of the byte in each of the 6 timed sources.
  • Page 26 Torridon HS Lite Drive Control Module - Technical Manual Follow Source S5 Follow Source S6 On when HOT_SWAP is set Always ON 0x6D – 3V3 & 3V3-Charge Control Source 7..4 3..0 3v3-Charge Control Source 3v3 Control Source 0x6E – 5V & 5V-Charge Control Source 7..4...
  • Page 27 Torridon HS Lite Drive Control Module - Technical Manual 0x73 – SEC_OUT_MN & SEC_IN_PL Control Source 7..4 3..0 SEC_IN_PL SEC_OUT_MN Revision 1.0 ©Quarch Technology Page 27 of 28...

  • Page 28: Appendix 1 - Signal Names

    Torridon HS Lite Drive Control Module - Technical Manual Appendix 1 - Signal Names The following signal names are used to specify a single signal or a group of signals. These may be used in commands that take a parameter “SIGNAL_NAME”. Note that some commands, such as those returning a value, only accept a parameter that resolves to a single signal.
