Adjustment: Image lead edge position adjustment
•
Image left edge position adjustment
•
Paper off-center adjustment

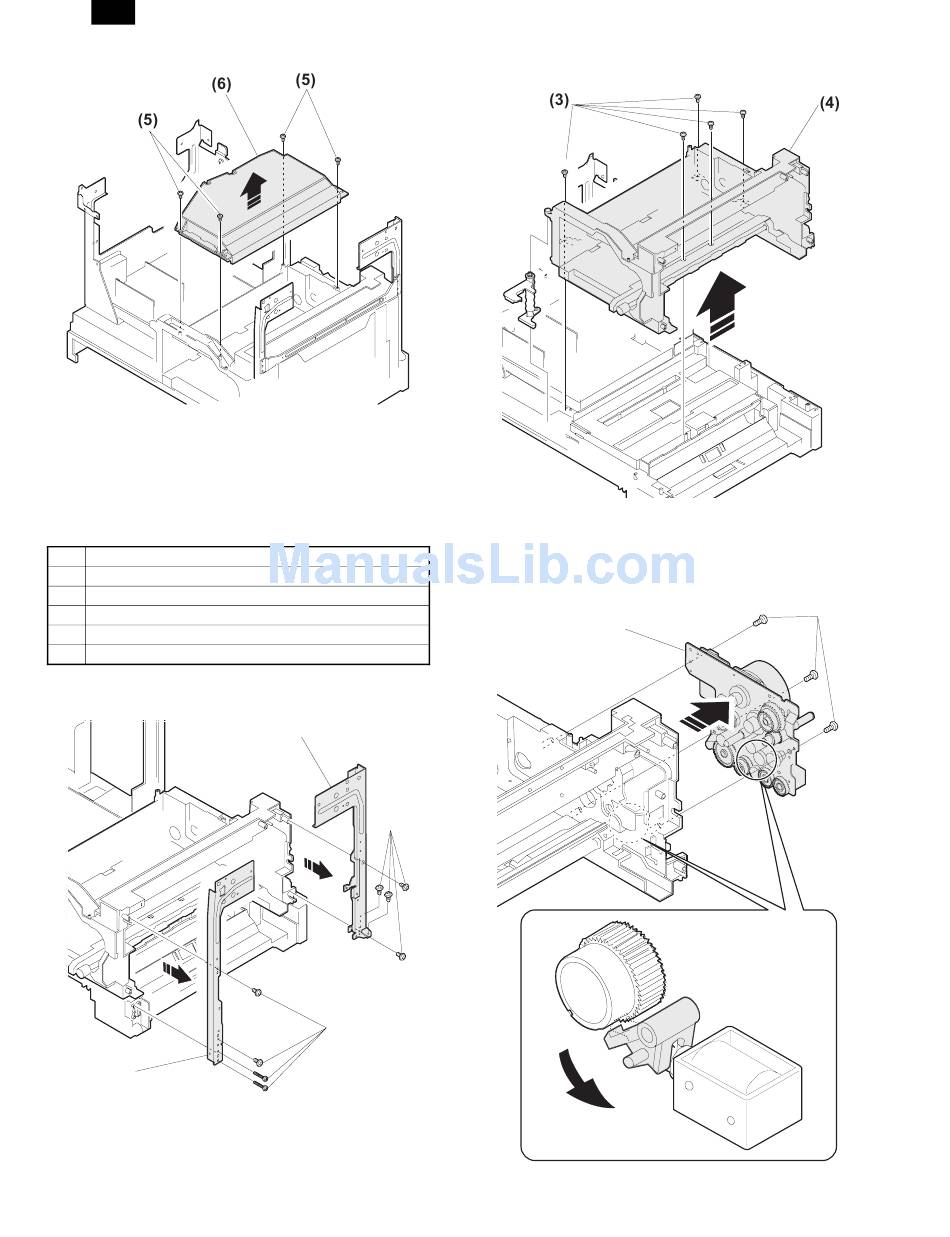

8. Tray paper feed section/Paper transport
section
No.
A Interface frame unit
B Drive unit
C Solenoid (paper feed solenoid, resist roller solenoid)
D Resist roller clutch , Resist roller
E Paper feed clutch/Paper feed roller (Semi-circular roller)
A. Intermittent frame unit
(2)
Content
(2)
(1)
(1)
Assembly: Do not miss the door lock pawl.
B. Drive unit
Assembly: Move down the clutch pawl as shown below, and avoid
the clutch and install.
(2)
11 – 7
