Operating Manual
[ 1 ] INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
[ 2 ] DIFFERENT POINTS FROM THE AL-1600 SERIES . . . . 1 - 1
[ 3 ] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . 3 - 1
[ 4 ] LIMITATIONS OF ELECTRICAL SORT
[ 5 ] 2 IN 1/4 IN 1 COPY REDUCTION RATIO
[ 6 ] SIMULATIONS . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1
[ 7 ] TROUBLE CODE LIST . . . . . . . . . . . . . . . . . . . . 7 - 1
[ 8 ] INSTALLING THE PRINTER DRIVER . . . . . . . . . . . . 8 - 1
[ 9 ] SETTING AND ADJUSTMENTS . . . . . . . . . . . . . . . 9 - 1
[10] CONFIGURATION REPORT AND TEST PAGE . . . . . . 9 - 2
[11] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . .
[12] FLASH ROM VERSION UP PROCEDURE . . . . . . . .
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
CONTENTS
SHARP CORPORATION
CODE: 00ZAL1670/A1E

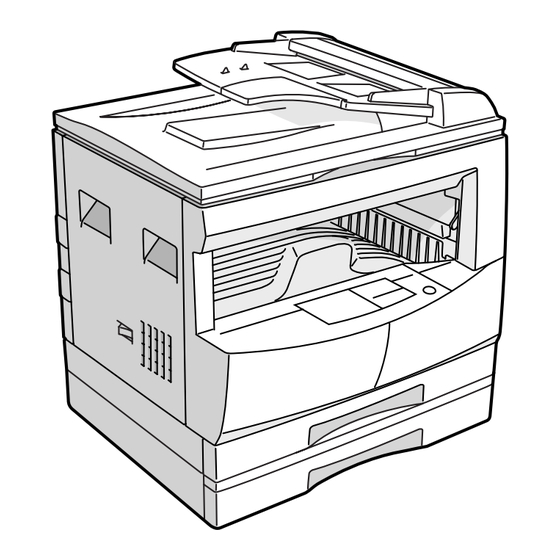

DIGITAL COPIER
AL-1640
AL-1650
AL-1670
MODEL
. . 4 - 1
<AL-1670 ONLY>
. . 4 - 1
<AL-1670 ONLY>
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
AL-1670
11 - 1
12 - 1
Advertisement
Table of Contents
Related Manuals for Sharp AL-1640
Summary of Contents for Sharp AL-1640
-
Page 1: Table Of Contents
AL-1670 CODE: 00ZAL1670/A1E DIGITAL COPIER AL-1640 AL-1650 AL-1670 MODEL CONTENTS [ 1 ] INTRODUCTION ..... . . 1 - 1 [ 2 ] DIFFERENT POINTS FROM THE AL-1600 SERIES . - Page 2 AL-1670 Warning! This product is a class A product. If it is operated in households, offices or similar surroundings, it can produce radio interferences at other appliances, so that the user has to take adequate countermeasures. CLASS 1 LASER PRODUCT VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ...
-
Page 3: 2 ] Different Points From The Al-1600 Series
Service Manual, refer to the Service Manual and the Parts Guide of the AL/1600/1610 and the AL-1620/1621. [2] DIFFERENT POINTS FROM THE AL-1600 SERIES For details of specifications, refer to the basic specifications later. AL-1600 AL-1610 AL-1620 AL-1621 AL-1640 AL-1650 AL-1670 Copy speed 16sheets/min 16sheets/min 16sheets/min... -
Page 4: 3 ] Specifications
Special paper Recycled paper, OHP film, labels Standard provision for AL-1650/1670 Paper feed Single except for recycled paper Standard/Option Not available for AL-1640 30 sheets (56 ∼ 90 g/m 15 ∼ 23.9 lbs Document load (3) Optional paper feed unit capacity... - Page 5 P. Package form Full detection Not available Electronic sort board: Standard Body Body/Accessories Finishing provision for AL-1670 Not available for AL-1640/1650 Q. External view Available for AL-1670 Offset function 590 × 526 × 566 mm AL-1640 Not available for AL-1640/1650 External dimensions...
-
Page 6: Printer Mode
Printer driver name Name on PC screen Multi bypass tray Paper feed tray PCL5e for Windows 3.1/95/98 Tray 1, Tray 2 SHARP AL-1600 Series PCL5e PCL5e for Windows NT4.0 A3, B4, A4R, B5R, A5R, 11" × 17", 8.5" PCL6 for Windows 95/98 SHARP AL-1600 ×... - Page 7 AL-1670 Item PCL6 PCL5e Status LCD display Content Depends on the paper size. If data reception is MAX Short –5.84" ∼ 5.84" Position not completed within Interface Long –8.5" ∼ 8.5" I/O Time Out the set time, it is Menu judged as a time out 6 ∼...
- Page 8 AL-1670 (6) Paper handling specifications b. Paper feed port a. Paper feed direction Tray kind Bypass Tray Tray 1 Tray 2 1) Paper size and image transport direction Capacity 100 sheets 250 sheets 250 sheets Paper Size Side set to the paper feed port Short side Short side Long side...
- Page 9 AL-1670 (8) Print Area Physical Page Printable Area Logical Page HP/GL Picture Frame Physical Logical Page Page Printable HP/GL Area Picture Frame PAPER SIZE 9920 7014 9684 9720 Paper size 8597 6070 8361 8397 7014 9920 6730 6814 7014 4960 6778 6814 6070 8597 5786 5870...
- Page 10 AL-1670 (9) Font a. For PCL TrueDoc Format 45 fonts 1 bitmap font Font No. Font Name Fixed Pitch 810 Courier Roman SWC Dutch 801 SWC Dutch 801 Bold SWC Dutch 801 Italic SWC Dutch 801 Bold Italic SWC Zapf Humanist 601 SWC Zapf Humanist 601 Bold SWC Zapf Humanist 601 Italic SWC Zapf Humanist 601 Bold Italic SWC...
-
Page 11: Al-1670 Only>
AL-1670 [4] LIMITATIONS OF ELECTRICAL SORT <AL-1670 only> Function Limitations, When no page memory (SIMM) is additionally installed (16 MB), about 60 sheets <When the operation is stopped of standard documents can be read. (The number of documents to be read with the memory full>... -
Page 12: Simulations
Copier ROM version display B: Can be used only in the AL-1620/1621 and AL-1650/1670. Trouble memory display C: Can be used only in the AL-1640/1650/1670. D: Can be used only in the AL-1670. Duplex print counter display Copy counter display... -
Page 13: Contents Of Simulations
AL-1670 4. Contents of simulations Main Initial Contents Details of operation Set range code code value Shifter Home Position Used to drive the shifter motor Check Key operation Feed: Exposure up key Return: Exposure down key <Used only in the Moved to Home Position: Magnification ratio display key AL-1670>... -
Page 14: 7 ] Trouble Code List
Copy lamp error Remark: FAX board communication trouble A: Not used FAX board trouble B: Only AL-1620/1621 and AL1650/1670 C: Only AL-1640/1650/1670 FAX board communication trouble D: Only AL-1670 (Protocol) FAX board communication trouble (Parity) FAX board communication trouble (Overrun) -
Page 15: 8 ] Installing The Printer Driver
2) Search for the printer driver by clicking [Other Locations...] button. • Your computer meets the following hardware and software re- 3) Insert the SHARP Software CD-ROM into the CD-ROM drive, type quirements: R:\WinXX and click the [OK] button. Computer Type... - Page 16 • The printer driver installation begins. 4) Insert the SHARP Software CD-ROM into the CD-ROM drive, type R:\WinXX, and click the [OK] button. • If the “Insert Disk” window appears, perform the following steps: <1>...
- Page 17 • The printer driver installation begins. 7) Insert the SHARP Software CD-ROM into the CD-ROM drive, type R:\WinXX, and click the [OK] button. 8) Choose the appropriate printer driver from those listed below and click the [Next] button.
- Page 18 • The printer driver installation begins. 7) Insert the SHARP Software CD-ROM into the CD-ROM drive, type R:\WinNT and click the [OK] button. 12) When the test page is printed properly, click the [Yes] button.
-
Page 19: 9 ] Setting And Adjustments
AL-1670 2) Press the MENU key repeatedly until the required menu appears. [9] SETTING AND ADJUSTMENTS 1. Configuration setting DATA ON LINE MENU ITEM MENU ONLINE Main Menu Copies Resolution 3) Press the ITEM key repeatedly until the required item appears. 600 * Smoothing MENU... -
Page 20: Configuration Report And Test Page
AL-1670 A. Main Menu [10] CONFIGURATION REPORT Possible AND TEST PAGE Item Description Settings 1 ∼ 999 Copies Sets how many copies to print. To test print the configuration page and font list, use the following 600dpi ∗ procedure: Resolution Sets the printing resolution. -
Page 21: Items And Contents
AL-1670 c. Network board 1. Samples Value: Example: Not Installed. Default: Not Installed. Description: Ubducates the network board installation status. Printer Configuration Page (Firmware version) HARDWARE STATUS a. PCL6 Machine Information Value: #.## Language: English Example: 1.00 Hardware Specs Base Memory: Default: Depends on the printer firmware version. -
Page 22: [11] Disassembly And Assembly
AL-1670 [11] Disassembly and assembly Printer Board E-sort PWB (only AL-1670) A. Printer board B. E-sort PWB <Only AL-1670> M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 M3x6 11 – 1... -
Page 23: Flash Rom Version Up Procedure
AL-1670 7) Communication port/communication speed setting [12] FLASH ROM VERSION UP G Select “Comport” in the option menu, and select the most PROCEDURE suitable item with consideration of PC environment, work time, etc. 1. MCU/E-SORT A. Tool G Machine G PC Operates on Windows 95/98. -
Page 24: Printer Board
AL-1670 9) Select the data for MCU to be transferred. 2. Printer Board A. Cases where flash memory rewriting is required In the following cases, the program in the printer control PWB flash memory must be rewritten. 1) When a bug or other error is found 2) Data stored in the flash memory is destroyed or deleted. - Page 25 AL-1670 COPYRIGHT © 1999 BY SHARP CORPORATION All rights reserved. Printed in Japan. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.
