Kanguru UltraLock Quick Start Manual

Kanguru UltraLock USB3.0 HDD/SSD
with Write Protect Switch

Quick Start Guide

04.26.17 v1.0 © 2017 Kanguru Solutions
Legal terms and conditions available at www.kanguru.com.
Please review and agree before use. Thank you.

General Operation

The Kanguru UltraLock runs off of the generic USB Mass Storage
Device Driver that comes preinstalled on most operating systems.
There are no additional drivers or software required to install before
you can use your device. Simply connect your drive to your computer
using the provided USB cable.
The Kanguru QS Mobile operates the fastest when connected through
a USB3.0 port. Although the Kanguru QS Mobile is backwards
compatible with USB2.0 and USB1.1, you will get optimal
performance through USB3.0.
Write Protect
Switch
LED Activity Indicator
Introduction

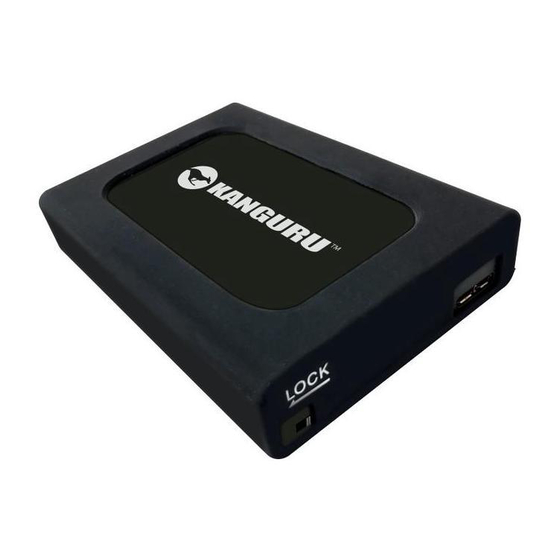

Combining a sleek, metal enclosure, super-fast USB3.0 connectivity,
and a physical, write protect switch, the Kanguru UltraLock is a
convenient, cost-effective, easy-to-use portable storage device that
works on both Macs and PCs.
Package Contents:
• Kanguru UltraLock
• USB3.0 Y-type cable
• Protective rubber skin
• Quick Start Guide
System Requirements:
• Notebook or desktop computer
• Windows Vista, Windows 7, Windows 8.1, Windows 10
• Mac; Mac OS X 10.4 and above
• 1GB RAM or above
• Pentium 4, 2GHz processor or equivalent
• USB port (USB3.0 port required for maximum transfer rates)
Note: This is a Quick Start Guide only. For further information about your
Kanguru UltraLock, please refer to the User Guide. A digital copy of the User
Guide can be downloaded from:

The Write Protect Switch

One of the main feartures of the Kanguru UltraLock is its physical
write protect switch. The UltraLock's physical write protect switch
enables and disables write capability through the device's firmware,
NOT programically through the OS registry as with some other
devices.
Enabling and disabling the write protect switch is as simple as setting
the switch to either the LOCKED or UNLOCKED position.
When set in the LOCKED position, the drive is write protected.
When set in the UNLOCKED position, the drive is write enabled.
USB3.0 Port
Note: The write protect switch will operate in the mode it is set in
when the device is connected. To change the mode, you must unplug
the device first, change the switch position and then reconnect.
(32/64-bit compatible)
http://support.kanguru.com
LOCKED UNLOCKED
