Summary of Contents for FireAngel THERMOPTEK ST-623E

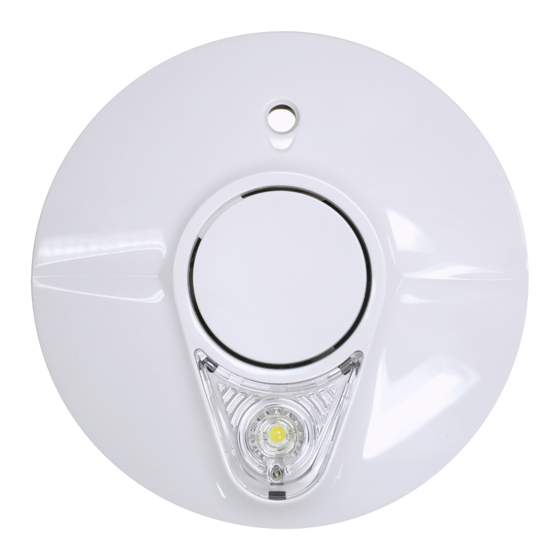

- Page 1 User Manual Smoke Alarm with Escape Light Model ST-623E...
- Page 2 DoP: SAFLDOP-ST-623E-01 GN4590R1 ST-623E A Sprue Brand Sprue Safety Products Ltd. Vanguard Centre, Coventry CV4 7EZ UK Technical Support: 0800 141 2561 / UK Textphone users dial: 18001 0800 141 2561 / EIRE dial: 1-800 523171 Email: technicalsupport@sprue.com Web: www.fireangel.co.uk...
-
Page 3: Table Of Contents
CONTENTS Features Alarm test Thermoptek multi-sensor Alarm Smart Silence™ technology Sleep Easy™ Escape Light Maintenance Positioning Troubleshooting How to install your alarm Disposal Battery replacement Warranty Note: This user manual also available large text other formats Please email: technicalsupport@sprue.com or call 0800 141 2561 for further information... -
Page 4: Features
FEATURES THERMOPTEK MULTI-SENSOR • Thermoptek Technology - a faster response TECHNOLOGY to slow burning and fast flaming fires • Escape Light - a powerful light to Thermoptek alarms “toast-proof” illuminate your escape route meaning they can be positioned in areas •... - Page 5 detection system only It cannot be used be between 150mm and 300mm below the as a substitute for a hard wired system as ceiling, and at least 300mm from a wall required in new build properties In this Smoke alarms should be positioned at no type of property the building regulations more than 600mm vertically below the require alarms to be interlinked You can...
-
Page 6: How To Install Your Alarm
Multi-family mixed occupant Commercial and Industrial Premises residence (Tenancy building, student This smoke alarm is not intended for any accommodation) non-residential, commercial or industrial Your smoke alarm can also be used in application, nor for any other purpose than individual flats and bedsits, providing the described above same conditions are met as for a single- HOW TO INSTALL... - Page 7 The red LED on the front of the alarm will soon start flashing once every 45 seconds to show that the alarm is activated Caution: The sounder is designed to be very loud in order to wake you Once the batteries are installed, the test button on the front of the alarm will be active Avoid placing the alarm close to your ear when...
-
Page 8: Battery Replacement
BATTERY REPLACEMENT IMPORTANT: Only the following batteries can be used for replacement Use of a battery other than those recommended below may have a detrimental effect on the alarm’s operation AA Alkaline type: Energizer E91 Duracell MN1500 Panasonic ProPower LR6 Hold the alarm up to the base plate and push and rotate the alarm clockwise into Remove the alarm from its base plate by... -
Page 9: Alarm Test
ALARM TEST c The red LED on your alarm will flash rapidly during the audible signal NOTE: The test button accurately tests the alarm’s smoke sensing circuit, there is no need to test your alarm with smoke If your smoke alarm fails to give an audible The alarm should be attached to the base test signal, please refer immediately plate and tested in its installed position... - Page 10 c During the reduced sensitivity mode the the event of a known false alarm your smoke alarm can be temporarily silenced red LED on your alarm will continue to by pressing the central test button Your flash more rapidly than normal alarm will automatically return to full sensitivity within 10 minutes a Briefly press and release the test button...
-
Page 11: Sleep Easy
DANGER: Cleaning Never ignore alarm Ignoring the alarm may result in injury As a minimum your smoke alarm should or death If your smoke alarm activates be cleaned once every 3 months using and you are not absolutely certain of the your vacuum cleaner fitted with the soft source of the smoke, get everyone out of brush attachment... -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Solution • If testing immediately after first activating the alarm or replacing the batteries, you should allow a few seconds for the alarm to settle before testing • Make sure you push the centre of the test button Your smoke alarm does not firmly sound during testing... - Page 13 If you have any questions about the operation of your alarm, please contact the Technical Support Team between 9am - 5pm Monday – Friday Telephone: 0800 141 2561 or e-mail: technicalsupport@sprue.com You can also visit the support section of our website www.fireangel.co.uk...
-
Page 14: Disposal
DISPOSAL available or in stock This warranty applies to the original retail purchaser from the date of original retail purchase and is not transferable Proof of Waste electrical products should not be disposed purchase is required of with your other household waste This alarm is ideally suited for disposal within the waste This warranty does not cover damage resulting electronic and electrical equipment (WEEE)
