User Manual of Product 1:

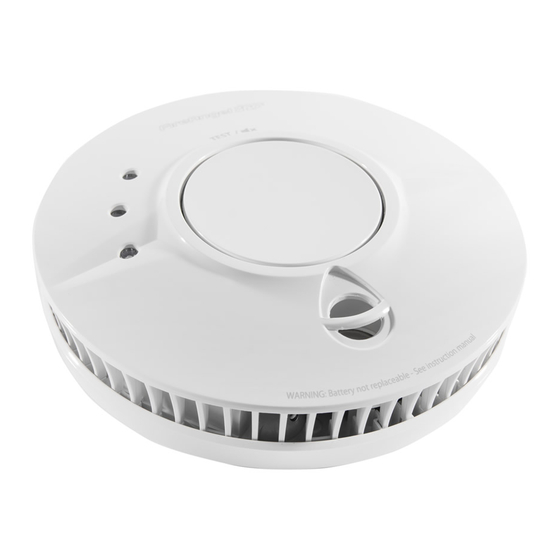

FireAngel Pro Connected Smart Smoke Alarm, Mains Powered
with Wireless Interlink and 10 Year Life Back-Up Battery,
FP1640W2-R , White
User Manual of Product 2:
FireAngel Pro Connected Smart Carbon Monoxide Alarm,
Battery Powered with Wireless Interlink and 10 Year Life,
FP1820W2-R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP1640W2-R and is the answer not in the manual?

Questions and answers

Related Manuals for FireAngel FP1640W2-R

Summary of Contents for FireAngel FP1640W2-R

  • Page 1 User Manual of Product 1: FireAngel Pro Connected Smart Smoke Alarm, Mains Powered with Wireless Interlink and 10 Year Life Back-Up Battery, FP1640W2-R , White User Manual of Product 2: FireAngel Pro Connected Smart Carbon Monoxide Alarm, Battery Powered with Wireless Interlink and 10 Year Life,...
  • Page 2 User Manual 10 YEAR LIFE SMOKE ALARM ST-620 Please read me – as I could save your life. Please retain this user manual for future reference...

  • Page 4: Table Of Contents

    CONTENTS INTRODUCTION ALARM SMART SILENCE™ AUTOMATIC POWER ENGAGE ROUTINE MAINTENANCE SENSOR TECHNOLOGY WHAT TO DO IN CASE OF FIRE IN YOUR HOME APPLICATION REPAIR POSITIONING TROUBLESHOOTING LIMITATIONS DISPOSAL HOW TO INSTALL YOUR SMOKE ALARM HOW TO MAKE YOUR HOME 1 Preparation SAFER 2 Install mounting plate 3 Fit your smoke alarm WARRANTY 4 Test your smoke alarm RETURNS OPERATION Normal Condition PRODUCT RANGE Low Power Pack Condition ALARM TEST NOTE: This User Manual is also available in large text and other formats. Please call 0800 141 2561 for further information...

  • Page 5: Introduction

    IMPORTANT: Your alarm will not work innovative products. until it is correctly located and secured IMPORTANT: This user manual contains on the mounting plate. important information regarding the operation of your FireAngel smoke alarm. Ensure you read this user manual fully before installing and operating the alarm. If you are installing this smoke alarm for use by others, you must leave this manual (or a copy of it) with the end user.

  • Page 6: Sensor Technology

    SENSOR TECHNOLOGY APPLICATION Traditionally 3 types of senor technology WARNING: Your FireAngel smoke have been used in domestic smoke alarms. alarm can be installed into a new build property as additional protection Optical smoke alarms are typically more to an existing smoke detection system effective at detecting slow burning fires. only. It cannot be used as a substitute for...
  • Page 7 This smoke alarm is not intended for any Multi-family or mixed occupant residence non-residential, commercial or industrial (Tenancy building, student accommodation) application, nor for any other purpose than Your FireAngel smoke alarm can also described above. be used in individual flats and bedsits, providing the same conditions are met as for a single-family residence. However, there...

  • Page 8: Positioning

    • In ‘dead air’ spaces (see following diagram). It is recommended that your FireAngel • Within 30cm (12”) of light fittings or other smoke alarm is NOT to be fitted in the ceiling based obstructions. following locations: WARNING: Prolonged exposure to • Bathrooms, shower-rooms, and other very...

  • Page 9: Limitations

    LIMITATIONS OF MY AIR SPACES SMOKE ALARM? Your FireAngel smoke alarm is designed to alert you by sounding an alarm when it senses smoke, i.e. it can only sense smoke and alert you if smoke reaches it! If a fire...
  • Page 10 As the alarm’s power pack reaches the end to ensure it is in full working order. of its life a low power warning chirp will be Your FireAngel smoke alarm is only suitable emitted every 40 seconds. When this occurs for use in domestic/ residential applications you must replace the unit within 7 days. as covered in this manual. It is not suitable for commercial or industrial applications. IMPORTANT:...

  • Page 11: How To Install Your Smoke Alarm

    Break out the tabs from the mounting plate. Use the fixing slots on the mounting plate as a guide when marking the position of the drill holes. With an appropriately sized drill, drill the holes and insert the plastic fixing anchors supplied (if needed). Fit Your FireAngel Smoke Alarm The alarm has a mechanism on the back that activates the alarm when it is correctly connected to the mounting plate. There are three lugs (hooks) on the back of the alarm Lugs (hooks) Mounting plate tabs Alarm...

  • Page 12: Test Your Smoke Alarm

    Low Power Pack Condition sure the alarm is twisted on fully. IMPORTANT: Your smoke alarm requires the power pack to have sufficient capacity of power to operate correctly. Should your FireAngel smoke alarm enter a low power pack condition, the unit will emit an audible ‘chirp’ once every 40 seconds. When this occurs you must replace the alarm immediately. Your FireAngel smoke alarm will continue to warn of this low power...

  • Page 13: Alarm Test

    ALARM TEST c The red LED on your alarm will flash rapidly during the audible signal. NOTE: The test button accurately tests the alarm’s smoke sensing circuit, there is no need to test your alarm with smoke. If your smoke alarm fails to give an audible test signal, please refer immediately to the trouble shooting guide at the end of this manual.

  • Page 14: Alarm Smart Silence

    ALARM SMART SILENCE™ DANGER: If your FireAngel smoke alarm emits the full alarm signal and you are not testing the unit, the smoke alarm is warning you of a potentially dangerous situation that requires your immediate attention. Only use the alarm silence function after making sure that there is no ongoing fire emergency situation. Do not block the vents on the alarm or disable the smoke alarm in any way, as this will remove your protection. Smoke alarms can sometimes react to cooking fumes or other non emergency situations. Your smoke a Press and release the silence button, the alarm features “Smart Silence™” technology. alarm sound will shortly stop.

  • Page 15: Routine Maintenance

    ROUTINE MAINTENANCE Your FireAngel smoke alarm has been designed to be as maintenance-free as possible, however there are several things c During the reduced sensitivity reset cycle, you must do to keep it working properly. the red LED on your alarm will continue CAUTION: Your FireAngel smoke alarm to flash more rapidly than normal, is a sealed electrical device and no approximately once every second. attempt should be made to open the case.

  • Page 16: What To Do In Case Of Fire In Your Home

    WHAT TO DO IN CASE OF WARNING: Your FireAngel smoke alarm may false alarm when it is being cleaned A FIRE IN YOUR HOME using a vacuum cleaner. IMPORTANT: Do not use solvents or • If you have made a family escape plan and cleaners on your FireAngel smoke alarm, practiced it with your family, you have as they may cause damage to the sensor increased their chances of escaping safely. or circuitry. The unit can be wiped with a Go over the following rules with your slightly damp cloth.

  • Page 17: Repair

    ‘Troubleshooting’. If you cannot solve the is safe to do so. problem, please call the Technical Support Line. Contact your local Fire and Rescue Service. They will give you more ideas about how to If your FireAngel smoke alarm is no longer make your home safer from fires and how to under warranty, replace immediately with a plan your family’s escape. comparable FireAngel brand smoke alarm.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Solution Your FireAngel smoke alarm does not sound • Make sure alarm has been rotated during testing clockwise as far as it can go and is securely located on mounting plate (this means the power pack has been activated). If testing immediately after first activating the alarm you should allow a few seconds for the alarm to settle before testing • Make sure you push the centre of the test button firmly • If the unit has been silenced and is in low sensitivity mode it may not test. Wait 15 minutes then try again • If the alarm has been recently fitted and it still fails to self test then contact technical support (see page 16) Your FireAngel smoke alarm chirps • Check the location of your smoke alarm intermittently (see ‘Application & Positioning’) • Check that your smoke alarm is definitely the source of chirping; make sure the noise isn’t coming from another alarm (smoke/carbon monoxide/burglar/gas alarm) by process of elimination Your FireAngel smoke alarm activates when • Check the location of your smoke alarm no smoke is visible (see the section on ‘Positioning’)
  • Page 19 You experience frequent unwanted alarms • Check the location of your FireAngel smoke alarm (see the section on ‘Positioning’) • Clean the smoke alarm (see the section on ‘Routine Maintenance’) • If the frequent unwanted alarms continue contact technical support for advice If the alarm fails to operate correctly, the If you have any questions about the advice of the manufacturer should be sought operation of your alarm, please contact the FireAngel Technical Support Team between 9am - 5pm Monday – Friday. Telephone: 0800 141 2561 or e-mail: technicalsupport@fireangel.co.uk You can also visit the support section of our website www.fireangel.co.uk...

  • Page 20: Disposal

    DISPOSAL HOW TO MAKE YOUR HOME SAFER Waste electrical products should not be disposed of with your other Installing smoke alarms is only one step in household waste. Unlike ionisation protecting your family from fires. You must smoke alarms, which have been in also take steps to reduce the chances of fires the UK since 1987, your thermoptek alarm starting in your home. If a fire does start, you...
  • Page 21 they are properly installed, away from • Decide on a meeting place a safe any combustible materials. distance from your house. Again, if you have them, make sure that all your • Keep portable heaters and open flames children understand that they should go such as candles away from combustible and wait for you there if there is a fire. materials. • Hold fire drills at least every 6 months to • Do not allow rubbish to accumulate make sure that everyone, including small inside your home as this provides children, know what to do to escape sources for combustion. safely. • Keep a supply of extra batteries on hand • Know where to go to call the Fire and for your battery powered Smoke Alarms. Rescue Service from outside your home. 4 Develop a family escape plan and practice Contact your local Fire and Rescue it with everyone in the household, Service. They will give you more ideas including small children if you have them. about how to make your home safer • Draw a floor plan of your home, and find from fires and how to plan your family’s two ways to exit from each room. There escape. should be one way to get out of each bedroom without opening the door, and alternate means of escape from an upper floor in the event of the stairs...

  • Page 22: Warranty

    WARRANTY apply to retail stores, service centres or any distributors or agents. Sprue Safety Products Ltd will not recognise any changes to this Sprue Safety Products Ltd warrants to the warranty by third parties. original purchaser that its enclosed smoke alarm be free from defects in materials and Sprue Safety Products Ltd shall not be liable workmanship under normal residential use for any incidental or consequential damages...

  • Page 23: Returns

    RETURNS PRODUCT RANGE We recommend that you contact the Sprue Safety Products manufacture an FireAngel Technical Support Line in the first extensive range of home safety products instance on 0800 141 2561, text phone users including smoke alarms, carbon monoxide dial 18001 0800 141 2561 or callers from alarms, fire extinguishers and remote EIRE dial 1-800 523171.
  • Page 25 Technical Support Line 0800 141 2561 UK Textphone users dial 18001 0800 141 2561 EIRE dial 1-800 523171 Email technicalsupport@fireangel.co.uk www.fireangel.co.uk 0086-CPD-557790 Smoke alarm devices EN 14604:2005 A Sprue Safety Products Brand ST-620 EN 14604:2005 Sprue Safety Products Ltd. KM 557789 GN0681R4 Vanguard Centre, Sir William Lyons Road, Coventry CV4 7EZ UK...
  • Page 26 Installation and User Guide NM-CO-10X Carbon Monoxide Alarm 10 Year Life TEST YOUR ALARM WEEKLY...
  • Page 27 KM 551504 Model No. NM-CO-10X NM-CO-10X Carbon Monoxide Alarm GN5505R2 FireAngel Safety Technology Limited Vanguard Centre, Coventry CV4 7EZ UK UK Gas Emergency Service Helpline: 0800 111 999 Technical Support: 0330 094 5830 / EIRE dial 1-800 523171 Email: specification@fireangeltech.com / Web: www.fireangeltech.com...
  • Page 28 CONTENTS Features Carbon Monoxide: How it Can Affect You and Your Family Positioning Product Indicators Installation Maintenance Alarm Test Disposal Sleep Easy Warranty What to do in the Event of an Alarm Note: This user manual is also available in large text and other formats Please email: specification@fireangeltech.com or call 0330 094 5830 for further information...

  • Page 29: Features

    INSTALLED? can be fitted with a Smart RF Module Ideally, an alarm should be installed in every which operates on FireAngel’s Wi-Safe 2 room containing a fuel-burning appliance and networking protocol. every sleeping room. Additional alarms may •...
  • Page 30 However, if there is a fuel-burning appliance • Carbon monoxide alarms in rooms with sloped in more than one room and the number of ceilings should be located at the high side of alarms is limited, the following points should the room.

  • Page 31: Installation

    the sleeping accommodation, it can be the sounder, battery and circuitry by pressing considered to be equivalent to a bedsit, and holding the centre of the Test / button and a single alarm is sufficient. However, briefly to confirm that the alarm is operating sleeping accommodation which...

  • Page 32: Alarm Test

    IMPORTANT: When placing on a shelf, please illustration). Using the holes as a guide, drill the follow the recommendations for positioning screws through to secure the bracket in place. (See ‘Positioning’). 2. Using the single point fixing option To mount on a wall: Flip down the CO alarm, away from the bracket.

  • Page 33: Sleep Easy Tm

    WHAT TO DO IN THE illuminate red indicating that the sounder is working and the battery is providing power to EVENT OF AN ALARM the unit. This test should be performed on a weekly basis. WARNING: A loud alarm is a warning that potentially lethal levels of carbon monoxide are present.

  • Page 34: Carbon Monoxide: How It Can Affect You And Your Family

    • Get medical help immediately for anyone Many cases of reported carbon monoxide suffering the effects of carbon monoxide poisoning indicate that while victims are poisoning (headache, nausea), and aware they are not feeling well, they become advise that carbon monoxide poisoning is disorientated and unable to save themselves suspected.
  • Page 35 • 400ppm - Frontal headaches within 1 - 2 • Barbecues hours, life threatening after three hours. • Clogged chimneys • 800ppm - Dizziness, nausea and • Wood or gas fireplaces convulsions within 45 minutes. • Cigarette smoke Unconsciousness within two hours. Death •...

  • Page 36: Product Indicators

    PRODUCT INDICATORS Mode Green LED Red LED Amber LED Chirp Flashes once per Normal Operation minute Flashes once every Four audible ‘chirps’ Alarm second repeated Chirps once per minute at Low battery / End Flashes once per the same time as the amber of sensor life minute LED flashes...

  • Page 37: Maintenance

    Provided product • Do not paint the alarm is sent back to FireAngel Safety Technology Limited • Do not spray aerosols on or near the alarm with proof and date of purchase, FireAngel Safety Technology Limited hereby warrants that during the •...
  • Page 38 Technology Limited’s control, such as Acts of God (fire, severe weather etc ) It does not apply to retail stores, service centres or any distributors or agents FireAngel Safety Technology Limited will not recognise any changes to this warranty by third parties...
