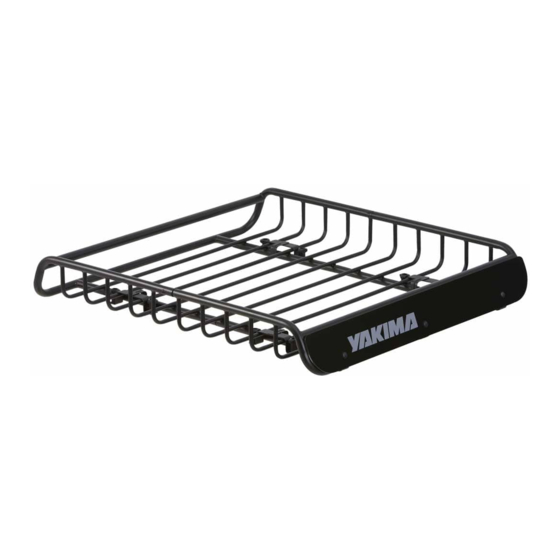

Yakima LoadWarrior User Manual

Roof rack

Hide thumbs Also See for LoadWarrior:

Download this manual

LoadWarrior Extension

Carry gear in the

basket, and attach

accessories directly

to the LoadWarrior

(using accessory

instructions).

LOAD LIMITS:

30 lbs.

(13.5 kg)

basket

contents

DO NOT EXCEED

BASKET CONTENT WEIGHT LIMIT:

140 LBS. (63 KG)

(1x)

DO NOT

EXCEED

YOUR

RACK'S

weight limit!

(4x)

(2x)

(1x)

Need help?

Do you have a question about the LoadWarrior and is the answer not in the manual?

Page 1 LoadWarrior Extension Carry gear in the basket, and attach accessories directly to the LoadWarrior (1x) (using accessory instructions). (4x) (4x) (2x) (1x) LOAD LIMITS: DO NOT EXCEED YOUR 30 lbs. RACK’S (13.5 kg) basket weight limit! contents DO NOT EXCEED BASKET CONTENT WEIGHT LIMIT: 140 LBS.
Page 2 TIGHTEN YOUR CROSSBARS NEVER REPOSITION THE Q TOWERS! IF YOU LOOSENED THEM. ATTACH BRACKETS TO BASKET SECTIONS ONLY. LOAD BASKET ONTO RACKS. For first time bracket installation, refer to LoadWarrior instructions. Center basket over your rack’s crossbars. A friend would make this easier .
Page 3 Tighten bolts while REFER TO THE DRAWINGS BELOW ATTACH LOAD BAR WITH END CLAMPS. pushing the end FOR BAR PLACEMENT, or to clamps together. determine if the bar is required. With a washer on the bolt, align the end clamps to the hole in the bar. Thread the bolts into the embedded nuts.

Loadwarrior extension
