Yakima LoadWarrior User Manual

Roof rack

Hide thumbs Also See for LoadWarrior:

Table of Contents

Download this manual

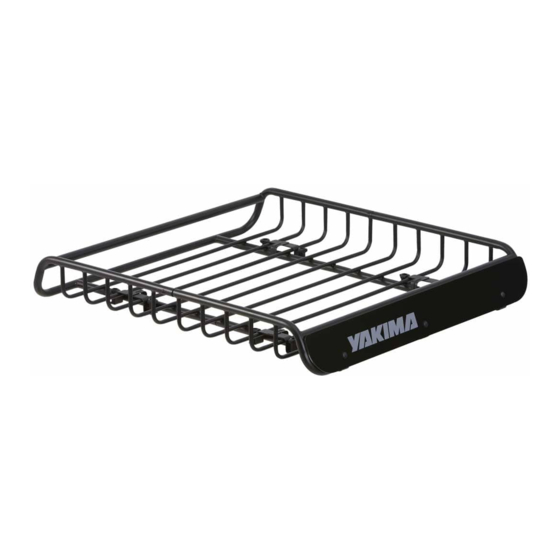

LoadWarrior

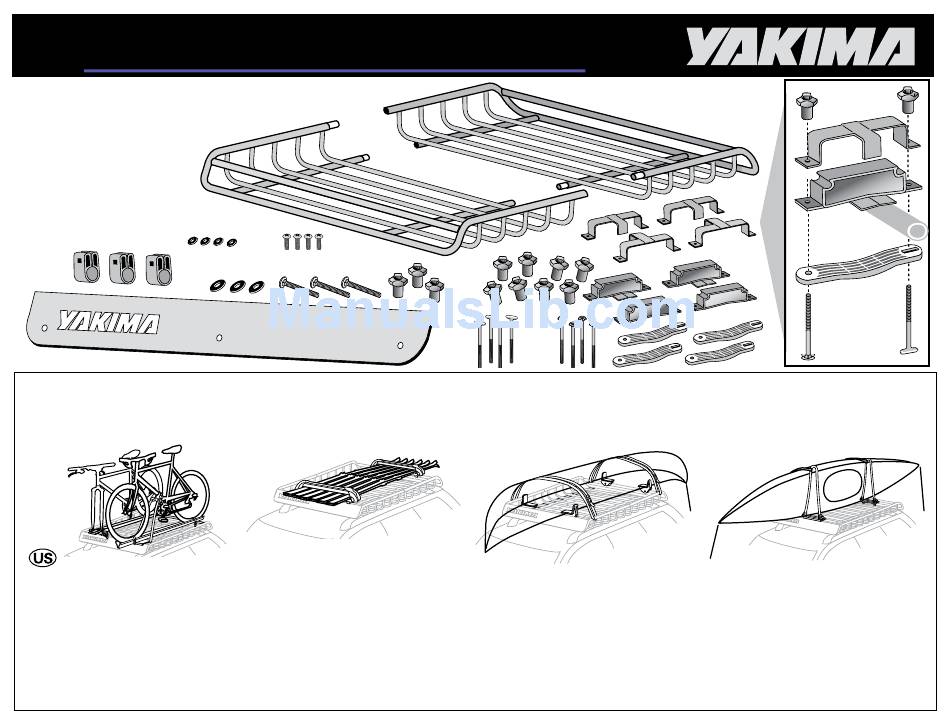

Recommended Tools:

Phillips screwdriver

Tapemeasure or ruler

(4x)

(3x)

(1x)

Carry gear in the basket, and attach

accessories directly to the LoadWarrior

(using accessory instructions).

With a crossbar spread of 24–29" (61cm-

74cm), you may carry bikes, skis, or kayaks,

provided you do not exceed the recommended

weight limit for your vehicle.

• If you have a crossbar spread of over 30"

(76cm) or more, you may also carry a canoe.

• To determine the crossbar spread on your

rack, measure between the crossbars.

(2x)

(4x)

(3x)

(11x)

(4x)

Table of Contents

Do you have a question about the LoadWarrior and is the answer not in the manual?

Page 1 (4x) (4x) (1x) Carry gear in the basket, and attach accessories directly to the LoadWarrior (using accessory instructions). With a crossbar spread of 24–29” (61cm- 74cm), you may carry bikes, skis, or kayaks, provided you do not exceed the recommended weight limit for your vehicle.
Page 2 If you loosened TheM. Assemble Insert screws with Remove the machine screws from exTensIon The baSkeT. washers into each the ends of the Loadwarrior tubes. UseRs: of the joints and You may find tapered tighten them. MACHINE TAPERED noTe: always replace screws with your...
Page 3 PosITIon The sUPPoRT bRAcKeTs PoSITIon The cover brackeTS. Keep bar Above your vehIcLe’S croSSbarS. Position cover bracket onto installed below Tab! support brackets. • Place the brackets Hooked tab should cover the larger oUTsIde of the basket support bar. frame. • Tabs on brackets must face Inboard.
