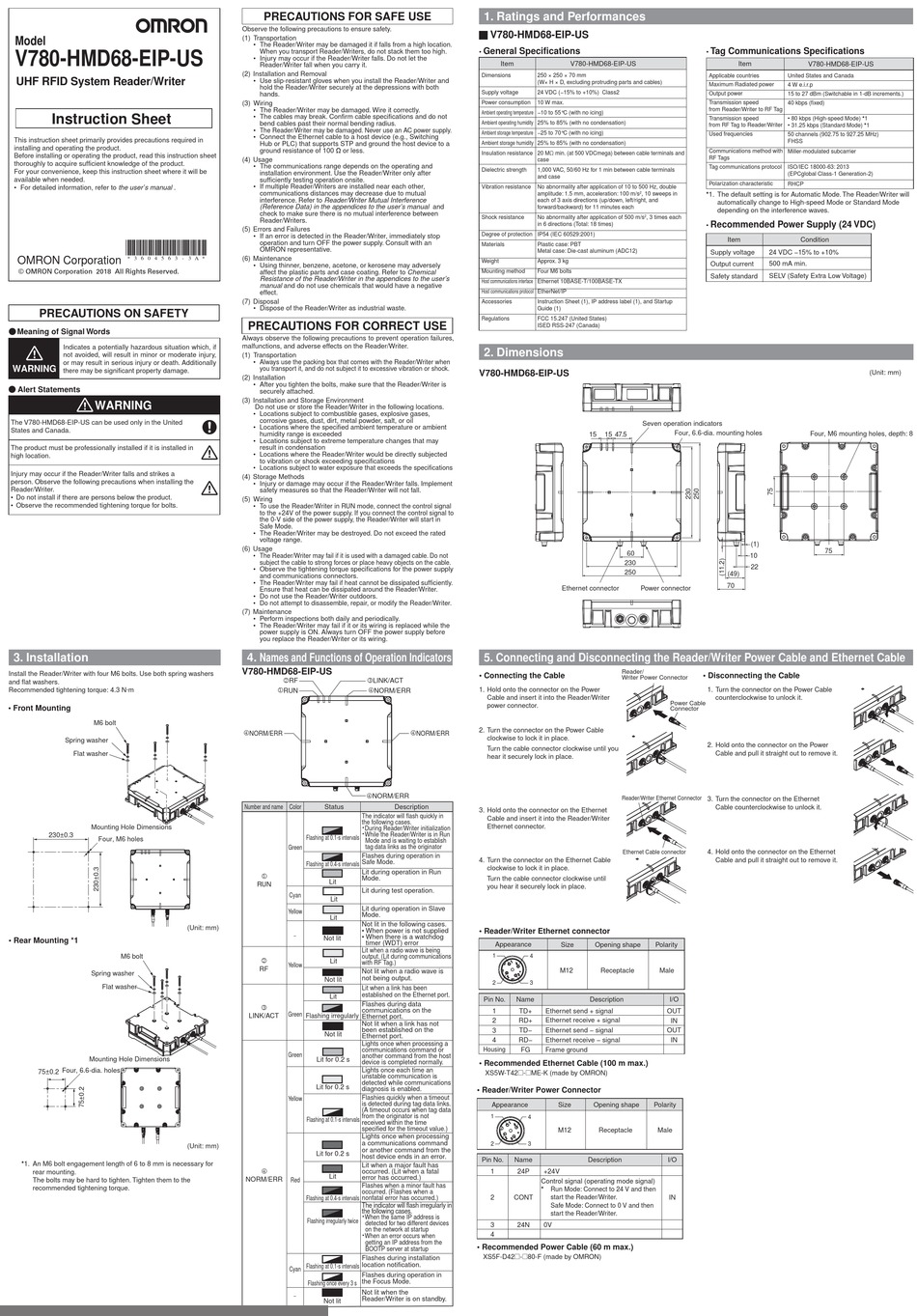

Omron V780-HMD68-EIP-US Instruction Sheet

Model
V780-HMD68-EIP-US
UHF RFID System Reader/Writer
Instruction Sheet
This instruction sheet primarily provides precautions required in
installing and operating the product.
Before installing or operating the product, read this instruction sheet
thoroughly to acquire sufficient knowledge of the product.
For your convenience, keep this instruction sheet where it will be
available when needed.
• For detailed information, refer to the user's manual .
OMRON Corporation * 3 6 0 4 5 6 3 - 3 A *
© OMRON Corporation 2018 All Rights Reserved.
PRECAUTIONS ON SAFETY
Meaning of Signal Words
Indicates a potentially hazardous situation which, if
not avoided, will result in minor or moderate injury,
or may result in serious injury or death. Additionally
WARNING
there may be significant property damage.
Alert Statements
WARNING
The V780-HMD68-EIP-US can be used only in the United
States and Canada.
The product must be professionally installed if it is installed in
high location.
Injury may occur if the Reader/Writer falls and strikes a
person. Observe the following precautions when installing the
Reader/Writer.
• Do not install if there are persons below the product.
• Observe the recommended tightening torque for bolts.
3. Installation
Install the Reader/Writer with four M6 bolts. Use both spring washers
and flat washers.
Recommended tightening torque: 4.3 N·m
• Front Mounting
M6 bolt
Spring washer
Flat washer
Mounting Hole Dimensions
230±0.3
Four, M6 holes
• Rear Mounting *1
M6 bolt
Spring washer
Flat washer
Mounting Hole Dimensions
75±0.2 Four, 6.6-dia. holes
*1. An M6 bolt engagement length of 6 to 8 mm is necessary for
rear mounting.
The bolts may be hard to tighten. Tighten them to the
recommended tightening torque.

PRECAUTIONS FOR SAFE USE

Observe the following precautions to ensure safety.
(1) Transportation
• The Reader/Writer may be damaged it if falls from a high location.
When you transport Reader/Writers, do not stack them too high.
• Injury may occur if the Reader/Writer falls. Do not let the
Reader/Writer fall when you carry it.
(2) Installation and Removal
• Use slip-resistant gloves when you install the Reader/Writer and
hold the Reader/Writer securely at the depressions with both
hands.
(3) Wiring
• The Reader/Writer may be damaged. Wire it correctly.
• The cables may break. Confirm cable specifications and do not
bend cables past their normal bending radius.
• The Reader/Writer may be damaged. Never use an AC power supply.
• Connect the Ethernet cable to a host device (e.g., Switching
Hub or PLC) that supports STP and ground the host device to a
ground resistance of 100 Ω or less.
(4) Usage
• The communications range depends on the operating and
installation environment. Use the Reader/Writer only after
sufficiently testing operation onsite.
• If multiple Reader/Writers are installed near each other,
communications distances may decrease due to mutual
interference. Refer to Reader/Writer Mutual Interference
(Reference Data) in the appendices to the user's manual and
check to make sure there is no mutual interference between
Reader/Writers.
(5) Errors and Failures
• If an error is detected in the Reader/Writer, immediately stop
operation and turn OFF the power supply. Consult with an
OMRON representative.
(6) Maintenance
• Using thinner, benzene, acetone, or kerosene may adversely
affect the plastic parts and case coating. Refer to Chemical
Resistance of the Reader/Writer in the appendices to the user's
manual and do not use chemicals that would have a negative
effect.
(7) Disposal
• Dispose of the Reader/Writer as industrial waste.
PRECAUTIONS FOR CORRECT USE
Always observe the following precautions to prevent operation failures,
malfunctions, and adverse effects on the Reader/Writer.
(1) Transportation
• Always use the packing box that comes with the Reader/Writer when
you transport it, and do not subject it to excessive vibration or shock.
(2) Installation
• After you tighten the bolts, make sure that the Reader/Writer is
securely attached.
(3) Installation and Storage Environment
Do not use or store the Reader/Writer in the following locations.
• Locations subject to combustible gases, explosive gases,
corrosive gases, dust, dirt, metal powder, salt, or oil
• Locations where the specified ambient temperature or ambient
humidity range is exceeded
• Locations subject to extreme temperature changes that may
result in condensation
• Locations where the Reader/Writer would be directly subjected
to vibration or shock exceeding specifications
• Locations subject to water exposure that exceeds the specifications
(4) Storage Methods
• Injury or damage may occur if the Reader/Writer falls. Implement
safety measures so that the Reader/Writer will not fall.
(5) Wiring
• To use the Reader/Writer in RUN mode, connect the control signal
to the +24V of the power supply. If you connect the control signal to
the 0-V side of the power supply, the Reader/Writer will start in
Safe Mode.
• The Reader/Writer may be destroyed. Do not exceed the rated
voltage range.
(6) Usage
• The Reader/Writer may fail if it is used with a damaged cable. Do not
subject the cable to strong forces or place heavy objects on the cable.
• Observe the tightening torque specifications for the power supply
and communications connectors.
• The Reader/Writer may fail if heat cannot be dissipated sufficiently.
Ensure that heat can be dissipated around the Reader/Writer.
• Do not use the Reader/Writer outdoors.
• Do not attempt to disassemble, repair, or modify the Reader/Writer.
(7) Maintenance
• Perform inspections both daily and periodically.
• The Reader/Writer may fail if it or its wiring is replaced while the
power supply is ON. Always turn OFF the power supply before
you replace the Reader/Writer or its wiring.
4. Names and Functions of Operation Indicators
V780-HMD68-EIP-US
RF
RUN
NORM/ERR
Number and name Color Status
The indicator will flash quickly in
the following cases.
・ During Reader/Writer initialization
・ While the Reader/Writer is in Run
Flashing at 0.1-s intervals
Green
Flashes during operation in
Safe Mode.
Flashing at 0.4-s intervals
Lit during operation in Run

Mode.
Lit
RUN
Lit during test operation.
Cyan
Lit
Lit during operation in Slave
Yellow
Mode.
Lit
Not lit in the following cases.
(Unit: mm)
• When power is not supplied

• When there is a watchdog
Not lit
Lit when a radio wave is being
output. (Lit during communications

Lit
with RF Tag.)
Yellow
RF
Not lit when a radio wave is
not being output.
Not lit
Lit when a link has been
established on the Ethernet port.
Lit
Flashes during data

communications on the
Green
LINK/ACT Flashing irregularly
Ethernet port.
Not lit when a link has not
been established on the
Not lit
Ethernet port.
Lights once when processing a
communications command or
Green
another command from the host
Lit for 0.2 s
device is completed normally.
Lights once each time an
unstable communication is
detected while communications
Lit for 0.2 s
diagnosis is enabled.
Flashies quickly when a timeout
Yellow
is detected during tag data links.
(A timeout occurs when tag data
from the originator is not
Flashing at 0.1-s intervals
received within the time
specified for the timeout value.)
Lights once when processing
a communications command
(Unit: mm)
or another command from the
Lit for 0.2 s
host device ends in an error.
Lit when a major fault has
 occurred. (Lit when a fatal
Lit
error has occurred.)
NORM/ERR Red
Flashes when a minor fault has
occurred. (Flashes when a
nonfatal error has occurred.)
Flashing at 0.4-s intervals
The indicator will flash irregularly in
the following cases.
・ When the same IP address is
Flashing irregularly twice
・ When an error occurs when
Flashes during installation
location notification.
Flashing at 0.1-s intervals
Cyan
Flashes during operation in
the Focus Mode.
Flashing once every 3 s
Not lit when the

Reader/Writer is on standby.
Not lit
1. Ratings and Performances
V780-HMD68-EIP-US
General Specifications
•
Item
Dimensions 250 × 250 × 70 mm
(W× H × D, excluding protruding parts and cables)
Supply voltage 24 VDC (−15% to +10%) Class2
Power consumption 10 W max.
Ambient operating temperature −10 to 55°C (with no icing)
Ambient operating humidity 25% to 85% (with no condensation)
Ambient storage temperature −25 to 70°C (with no icing)
Ambient storage humidity 25% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDCmega) between cable terminals and
case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between cable terminals
and case
Vibration resistance No abnormality after application of 10 to 500 Hz, double
amplitude: 1.5 mm, acceleration: 100 m/s
each of 3 axis directions (up/down, left/right, and
forward/backward) for 11 minutes each
Shock resistance No abnormality after application of 500 m/s
in 6 directions (Total: 18 times)
Degree of protection IP54 (IEC 60529:2001)
Materials Plastic case: PBT
Metal case: Die-cast aluminum (ADC12)
Weight Approx. 3 kg
Mounting method Four M6 bolts
Host communications interface Ethernet 10BASE-T/100BASE-TX
Host communications protocol EtherNet/IP
Accessories Instruction Sheet (1), IP address label (1), and Startup
Guide (1)
Regulations FCC 15.247 (United States)
ISED RSS-247 (Canada)
2. Dimensions
V780-HMD68-EIP-US
5. Connecting and Disconnecting the Reader/Writer Power Cable and Ethernet Cable
• Connecting the Cable
LINK/ACT
NORM/ERR 1. Hold onto the connector on the Power
Cable and insert it into the Reader/Writer
power connector.
2. Turn the connector on the Power Cable
NORM/ERR
clockwise to lock it in place.
Turn the cable connector clockwise until you
hear it securely lock in place.
NORM/ERR
Description
3. Hold onto the connector on the Ethernet
Cable and insert it into the Reader/Writer
Ethernet connector.
Mode and is waiting to establish
tag data links as the originator
4. Turn the connector on the Ethernet Cable
clockwise to lock it in place.
Turn the cable connector clockwise until
you hear it securely lock in place.
• Reader/Writer Ethernet connector
timer (WDT) error
Appearance
1
4
2 3
Pin No. Name
1 TD+
2 RD+
3 TD−
4 RD−
Housing FG
• Recommended Ethernet Cable (100 m max.)
XS5W-T42@-@ME-K (made by OMRON)
• Reader/Writer Power Connector
Appearance
1 4
2 3
Pin No. Name
1 24P
2 CONT
detected for two different devices
3 24N
on the network at startup
-
4
getting an IP address from the
• Recommended Power Cable (60 m max.)
BOOTP server at startup
XS5F-D42@-@80-F (made by OMRON)
Tag Communications Specifications
•
V780-HMD68-EIP-US
Applicable countries
Maximum Radiated power
Output power
Transmission speed
from Reader/Writer to RF Tag
Transmission speed
from RF Tag to Reader/Writer
Used frequencies
Communications method with
RF Tags
Tag communications protocol
Polarization characteristic
*1. The default setting is for Automatic Mode. The Reader/Writer will
2 , 10 sweeps in
2 , 3 times each
Recommended Power Supply (24 VDC)
•
Supply voltage
Output current
Safety standard
Seven operation indicators
Four, 6.6-dia. mounting holes
15 15 47.5
60
230
250
Ethernet connector Power connector
Reader/
• Disconnecting the Cable
Writer Power Connector
1. Turn the connector on the Power Cable
counterclockwise to unlock it.
Power Cable
Connector
2. Hold onto the connector on the Power
Cable and pull it straight out to remove it.
Reader/Writer Ethernet Connector
3. Turn the connector on the Ethernet
Cable counterclockwise to unlock it.
Ethernet Cable connector 4. Hold onto the connector on the Ethernet
Cable and pull it straight out to remove it.
Size Opening shape Polarity
M12 Receptacle Male
Description I/O
Ethernet send + signal OUT
Ethernet receive + signal IN
Ethernet send − signal OUT
Ethernet receive − signal IN
-
Frame ground
Size Opening shape Polarity
M12 Receptacle Male
Description I/O
-
+24V
Control signal (operating mode signal)
* Run Mode: Connect to 24 V and then
start the Reader/Writer. IN
Safe Mode: Connect to 0 V and then
start the Reader/Writer.
-
0V
- -
Item V780-HMD68-EIP-US
United States and Canada
4 W e.i.r.p
15 to 27 dBm (Switchable in 1-dB increments.)
40 kbps (fixed)
• 80 kbps (High-speed Mode) *1
• 31.25 kbps (Standard Mode) *1
50 channels (902.75 to 927.25 MHz)
FHSS
Miller-modulated subcarrier
ISO/IEC 18000-63: 2013
(EPCglobal Class-1 Generation-2)
RHCP
automatically change to High-speed Mode or Standard Mode
depending on the interference waves.
Item Condition
24 VDC −15% to +10%
500 mA min.
SELV (Safety Extra Low Voltage)
(Unit: mm)
Four, M6 mounting holes, depth: 8
(1)
75
10
22
(49)
70
