Topcon G3 Manual

The Leader in Positioning
Technology...
Basic Specifi cations
Your authorized Topcon dealer has the answer for all

TRACKING

of your precise positioning needs. Whether you're
Number of Channels
looking for precision GPS+ control for surveying
Signals Tracked:
and engineering applications or layout and grade
management on a construction job site, your local
Topcon dealer offers the widest range of products to
WAAS/EGNOS
get the job done quickly and accurately.
Antenna Type

ACCURACY

And don't forget, Topcon also offers the industry's
Real time DGPS accuracy
easiest-to-use GPS+ machine control systems.
Post processed Static DGPS
Capable of working as an indicate-only system or
fully automatic grade control, Topcon offers systems

COMMUNICATIONS

to automate your motorgrader, paver, profi ler,
Optional Radio Type
dozer, excavator, or ag/land leveling machines.
Base Radio Output
Cellular Communications
There's only one company that offers you all of the
Wireless Communications
positioning tools to keep you competitive in today's
DATA & MEMORY
Memory
market. They're only available from your local
Data Update/Output Rate
dealer, and they're only from Topcon.
Real Time Data Output
ASCII Output
The Leader in Customer
Control & Display Unit
Satisfaction...

ENVIRONMENTAL

To ensure that your Topcon system maintains peak
Enclosure
performance, your local Topcon dealer offers factory Operating Temperature
Environmental Specifi cation
trained and certifi ed service technicians. And just in
Shock Rating
case service assistance isn't available in your area,
our factory offers a repair and support policy second
to none.
Offi ces Worldwide
TOPCON CORPORATION
75-1 Hasunuma-cho, Itabashi-ku • Tokyo 174-8580, Japan
Phone: 3-3558-2520 • Fax: 3-3960-4214 • www.topcon.co.jp
Topcon Europe Positioning B.V.
Essebaan 11, 2908 LJ Capelle a/d Ijssel • THE NETHERLANDS
Phone: 010-4585077 • Fax: 010-4585045 • www.topconeurope.com
Topcon Corporation Beijing Offi ce
Block A No.9, Kangding Street, Beijing Economic
Technological Development Area, Beijing 100176 • CHINA
Tel: +86-10-6780-2799 • Fax: +86-10-6780-2790
Topcon Positioning Systems, Inc.
7400 National Drive
Your local Authorized Topcon dealer is:
Livermore, CA 94550
www.topconpositioning.com
Specifications subject to change without notice
©2006 Topcon Corporation All rights reserved.
P/N: 7010-0765 Rev. A Printed in U.S.A. 07/06
Provided by Xpert Survey Equipment
Click Topcon GR-3
72 Universal Channels
GPS L1, L2, & L5 carrier, CA, L1 P, L2 P, L2C
GLONASS L1, L2, & L5 carrier, L1CA, L2CA, L1 P, L2 P
GALILEO E2-L1-E1, E5
Yes
Integrated Micro-Center on Flat Ground Plane
H: 10mm+1ppm
V: 15mm+1ppm
H: 3mm+0.5ppm
V: 5mm+0.5ppm
Integrated Tx/Rx 915MHz Spread Spectrum
0.5 – 2.0 Watts, selectable
Integrated via SIM Card, GSM/GPRS
Integrated Bluetooth version 1.1 comp
Internal, Removable SD Memory Card
1 – 20Hz Selectable
TPS, RTCM SC104, CMR, CMR+
NMEA 0183 version 3.0
Optional, External, Mobile Computer
Aluminum I-Beam Housing
-40 to 60C
IP66 waterproof/dustproof
2 meter pole drop
The Leader in Positioning Technology...
Topcon Positioning Systems is the worldwide leading developer and manufacturer
of precision positioning equipment and offers the widest selection of innovative
precision GPS systems, laser, optical surveying, and machine control products.
From open-fi eld construction projects to isolated surveying sites and from rolling
farmland to inner city utility projects, Topcon Positioning Systems provides
innovative technology that provides a decidedly competitive edge to end-users.
The recognized innovative trend-setter in its industry, Topcon has focused on
developing an array of integrated positioning and automation technologies to
meet the constantly changing demands facing construction, surveying, agriculture,
utilities and law enforcement industries worldwide.
for Product Info and Updated Pricing

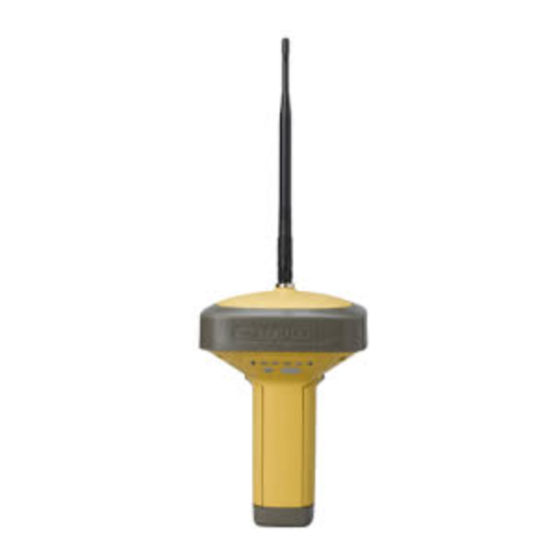

GR-3
G3 CAPABLE GNSS RECEIVER
Introducing the most advanced
GPS+ receiver system ever made.
• G3 Satellite Tracking (GPS, Glonass, Galileo)
• Advanced Rugged System Design
• Bluetooth Wireless Technology
• 72 Universal Tracking Channels
• Optional Internal GSM/GPRS Cellular
Communication
