Enerwave ZWN-RSM2 Installation Instructions

INSTALLATION INSTRUCTIONS
ZWN-RSM2
Smart Dual Relay Switch Module
SPECIFICATIONS
Voltage.........................................................................120-277VAC, 50/60Hz
Maximum Load requirement.................................................................4A×2
Z-Wave Frequency.............................................................. 908.42MHz(US)
Operating Temperature..............................................................32° F-104° F
Size.................................................................................1.63'' ×1.63'' ×0.82''
Range...................................................................Up to 150 feet line of sight
between the Wireless Controller and the closest Z-Wave receiver module.
FEATURES
Works with existing light switches, neutral wire required
Slim size module with built in Z-Wave Plus technology
Acts as a Z-Wave repeater to extend the range
On/Off control via Z-Wave controller, manual wall switch
DESCRIPTION
Z-Wave unifies all of your home electronics into an integrated wireless
network and helps them communicate with each other. Any Z-Wave enabled
item can be added to the network, making your home electronics fully
compatible.

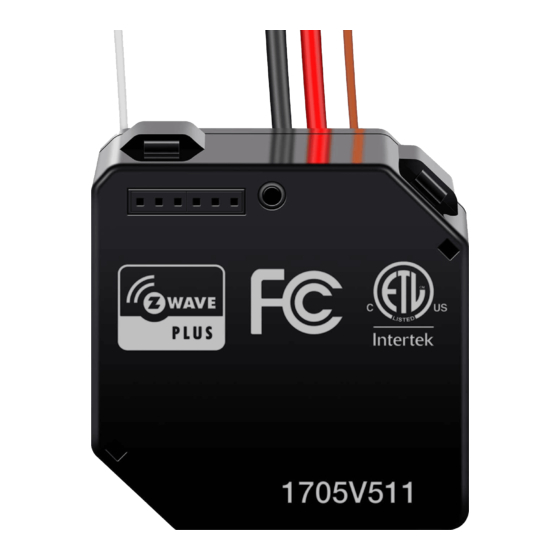

The ZWN-RSM2 Switch Module is a component of a lighting control system
used to turn an existing switch into a Z-Wave switch. This ZWN-RSM2
module is a Z-Wave enabled device and is fully compatible with any Z-
Wave enabled network. In the Z-Wave network, this device is designed to act
as a wireless repeater. Once the ZWN-RSM2 module is installed and
configured, it will retransmit the RF signal from one device to another until the
intended device is reached. This ensures that the signal is received by its
intended destination by routing the signal around obstacles and radio dead
spots.
-01-
WARNINGS AND CAUTIONS
To be installed and/or used in accordance with appropriate electrical codes
and regulations. Exercise extreme caution when using Z-Wave devices to
control appliances. Operation of the Z-Wave device may be in a different
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operations could
possibly result in a hazardous situation.
PLUS
Z-Wave enabled devices should never be used to supply power to, or
control, the On/Off status of medical and/or life support equipment.
If you are unsure or uncomfortable about performing the installation,
please consult a qualified electrician.
INSTALLATION

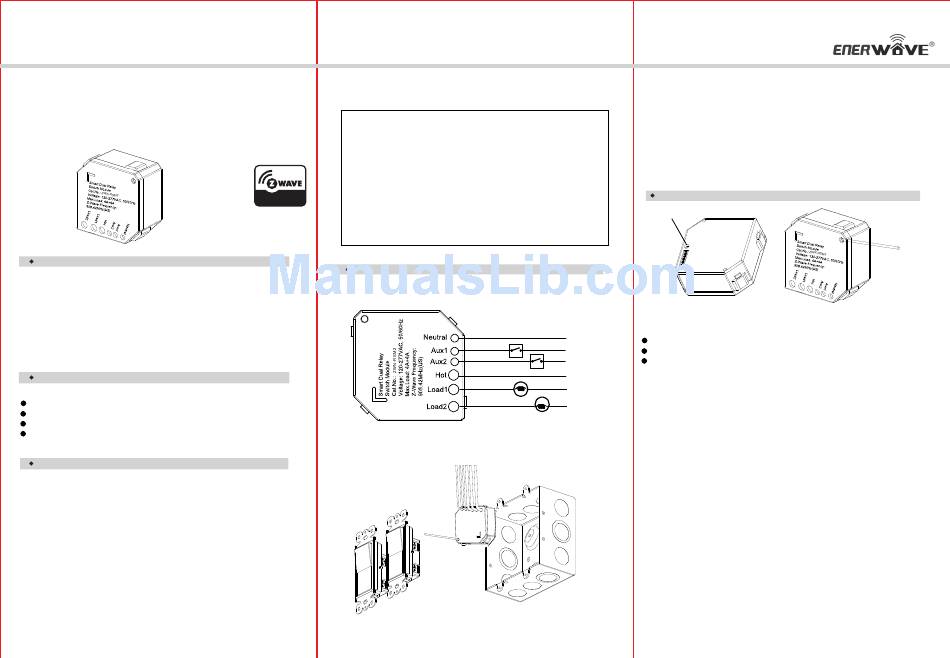

Wiring Diagram:
Please consult an electrician if you have trouble identifying the type of wiring
circuit you wish to convert or if you do not feel confident in your ability to
convert the circuit to Z-Wave control.
TIPS FOR ARRANGING THE ANTENNA:
Neutral
Neutral
(White)
Switch 1
Aux 1
Line
Aux 2
Line
Switch 2
Hot Line
(Black)
Basic Operation
Load 1
Neutral
The connected device can be turned ON in two ways:
Load 2
1. Manual control with the button on the connected switch.
Neutral
2. Z-Wave remote controller.
Figure 1
Manual Control
Remote Control
When the ZWN-RSM2 switch module is included in a Z-Wave network, it can be
Z-Wave network inclusion/exclusion
For controller inclusion/exclusion mode, please refer to the user manual of the
controller.
Press and release the program button (Figure 3) on the ZWN-RSM2 module to
enter learning mode. Toggling the manual switch that is wired to the Aux1 line (not
Aux2 line) will also set the module to learning mode for one second. The module
should now be included into the network. If the Z-Wave network failed to add ZWN-
Figure 2
RSM2, please try exclusion first.
-02-
1. WARNING: To avoid fire, shock, or death. Turn off power at circuit breaker
or fuse and test that power is off before wiring.
2. Remove wall plate and switch mounting screws.
3. Carefully remove existing switches from the switch box.
4. Disconnect the wiring from existing switches.
5. Connect the ZWN-RSM2 module as shown in the wiring diagram.(Figure 1)
6. Check connections to be sure they are tight and no bare conductors are exposed.
7. Insert the ZWN-RSM2 module into the box first , then wire existing switches.
8. Attach the wall plate.
9. Restore power at the circuit breaker and test the system.
OPERATIONS
Program Button
Figure 3
Position the antenna as far from metal elements as possible to prevent
interferences. Metal surfaces in the direct vicinity of the antenna may impair signal
reception.
Do not cut or shorten the antenna - its length is perfectly matched.
Manually turn on/off connected appliances the same way as you would with a
traditional switch.
turned on/off remotely by a portable controller or a Z-Wave enabled gateway
controller.
-03-
Antenna
