Enerwave ZW1P Installation Instructions

INSTALLATION INSTRUCTIONS
Wireless Home Automation Control Device

SPECIFICATIONS

Voltage................................................................................ 120VAC, 60Hz
Incandescent......................................................................................300W
Z-Wave Frequency.................................................................. 908.42 MHz
Operating Temperature............................................................... 32-104° F
Range.................................................................Up to 100 feet line of sight
between the Wireless Controller and the closest Z-Wave receiver module.

FEATURES

Easy to install, uses existing receptacles
Program button for programming and manual on/off & dimming controlling
Remote ON/OFF& Dim control of any plug-in incandescent, dimmable
LED and CFL table or floor lamp from a computer, tablet or smart phone
Preset light level option allows the dimmer will turn on to the light level
that it was adjusted to the previous time when the light was on
Wireless Z-Wave technology creates a mesh network for command and
control interoperability with other Z-Wave compliant controller and devices
Blue LED show feedback from the controller

DESCRIPTION

The ZW1P Plug-in Lamp Dimming Module is a perfect wireless manual
and remote on/off/dim/bright plug-in module to control incandescent,
dimmable LED and CFL table lamp. This ZW1P plug-in dimming module
is fully compatible with other Z-Wave devices, provide programmable
function creating a perfect ambiance such as scenes, association,
schedule event, etc. Also it can be added to most Z-Wave compliant
controllers. As part of any Z-Wave network, each device will be manually
and/or remotely controlled by commands sent from Z-Wave controllers in
real time, but also act as a wireless repeater transmitting RF signal from
one to another intended device, then extending the range of RF signal all
over the system. Not for use with fluorescent lights, motor loads, or magnetic
or electronic transformers.
-01-
ZW1P
Plug-in Lamp
To be installed and/or used in accordance with appropriate electrical codes
Dimming Module
and regulations. Exercise extreme caution when using Z-Wave devices to
control appliances. Operation of the Z-Wave device may be in a different
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operation could
possibly result in a hazardous condition.
If you are unsure or uncomfortable about performing the installation,
please consult a qualified electrician.

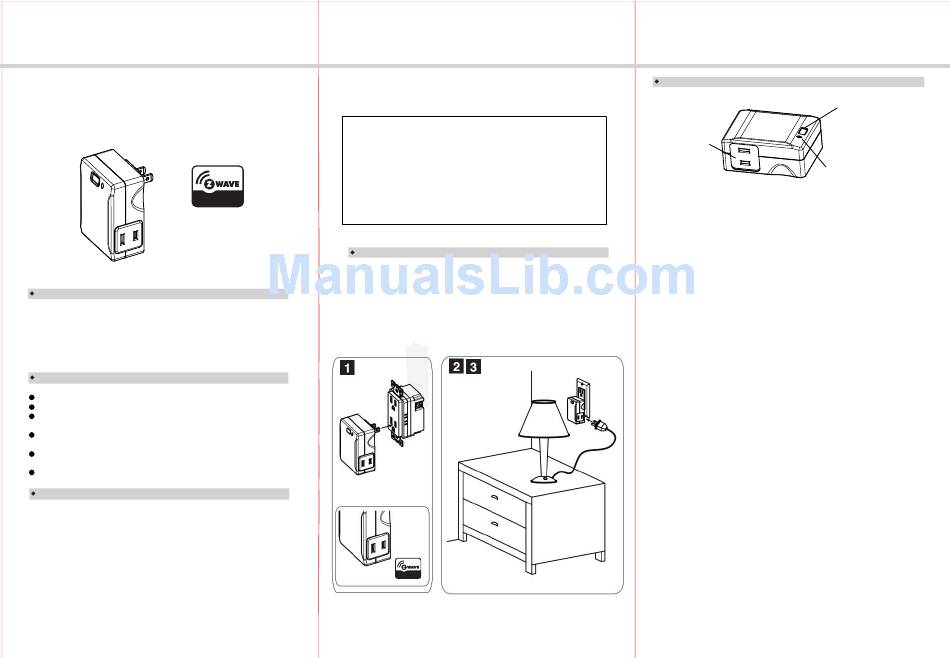

INSTALLATION

1. Plug the ZW1P Lamp Dimming Module into a 120VAC,60HZ outlet.
2. Plug the lamp into the ZW1P Lamp Dimming Module. Make sure the
lamp to be controlled does not exceed 300 Watts.(Not for use with
fluorescent lights, motor loads, or magnetic or electronic transformers.)
3. Turn the knob or switch on the lamp to the ON position.
WARNINGS AND CAUTIONS
-02-

OPERATIONS

Z-Wave outlet
Blue LED indicator
Basic Operation
The connected light can be turned ON in two ways:
1. With a remote.
2. Manually with the program button on the Z-Wave module.
Remote Control
Z-Wave remotes provide control of an Individual device, Groups of devices
and Scenes. Please refer to your remote control's instructions for detail on
its capabilities and instructions for adding and controlling devices.
Manual Control
5
The front panel program button on the ZW1P dimming module allows the
user to:
1. Manually turn ON the ZW1P Lamp Dimming Module, press and release
5
the program button.The blue indicator LED will turn OFF, and the lamp plugged
5
into the ZW1P Lamp Dimming Module will turn ON.
2. Manually turn OFF the ZW1P Lamp Dimming Module, simply press and
release the program button. The blue indicator will turn ON and the lamp
plugged into the ZW1P Lamp Dimming Module will turn OFF.
3. Manually dim the ZW1P Lamp Dimming Module, press and hold the
program button until the desired lighting level has been reached.
4.Once program button is pressed, the device will enter into learn mode to
accomplish inclusion or exclusion by controller. Refer to the instruction for
your primary controller to access the setup function and include or exclude
devices.
Please Note: After a power failure, the ZW1P module returns to OFF state.

Advanced Operation

The following Advanced Operation parameters require that you have an
advanced controller. However, basic remotes do not have this capability.

All On/All Off

Depending upon your primary controller, the ZW1P dimming module can
be set to respond to ALL ON and ALL OFF commands in up to four different
ways. Some controllers may not be able to change the response from its
default setting. Please refer to your controller's instructions for information
on whether or not it supports the configuration function and if so, how to
change this setting.
-03-
Program Button
