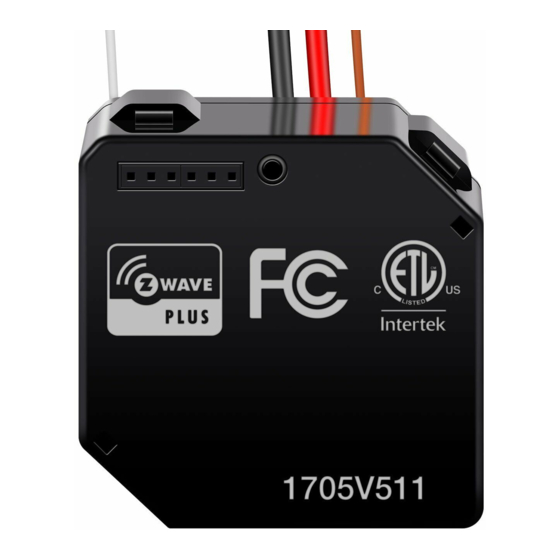

- Page 1 Smart Single Relay Switch Module Engineering Specifications...
-
Page 2: Technical Specifications
⚫ 700 series Z-Wave chip for better range and faster control. ⚫ Remembers and restores on/off status aer power failure. ⚫ SmartStart and S2 Security for a safer network. 1 Technical Specifications Model Number ZWN-RSM1-PLUS Communication Protocol Z-Wave Radio Frequency 908.42MHz... -
Page 3: Installation
3.1 Installation If Hot and Neutral are located in the wall box, If Hot and Neutral are located in the ceiling box, then wire the ZWN-RSM1-PLUS this way: then wire the ZWN-RSM1-PLUS this way: NOTE: Aux wire not required if mechanical on/off switch is not present. - Page 4 messages to communicate to other security enabled Z-Wave Plus products. When a node includes into a S0/S2 Z-Wave network, the node supports S0/S2 unauthenticated class, S0/S2 authenticated and so do the supported CCs. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.
- Page 5 5 All functions of each trigger 5.1 SmartStart SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
- Page 6 step a. 5.4 Reset Switch to factory default Press and hold Z-Wave button at least 10 seconds, LOAD start blinking quickly, release Z-Wave button. The Switch will reset itself to factory default by sending a “Device Reset Locally Notification” to gateway when the button is released. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
- Page 7 The Receptacle support the Indicator Command Class, version 3 and support the Indicator ID 0x50 (Identify) and Properties ID 0x03, 0x04 and 0x05 6.5 Configuration Command Class Name Size Range Description Default 0x05 Power on When the device is powered on, the initial status.
