INSTALLATION INSTRUCTIONS
Wireless Home Automation Control Device
Plug-in Dimming Module
SPECIFICATIONS
Voltage................................................................................ 120VAC, 60Hz
Incandescent......................................................................................300W
Z-Wave Frequency.................................................................. 908.42 MHz
Operating Temperature............................................................ 32°F-104°F
Range.................................................................Up to 100 feet line of sight
between the Wireless Controller and the closest Z-Wave receiver module.
FEATURES
Ease of installation(no new wiring)
One Z-Wave controlled and one always-on AC outlet
Provides manual/ remote ON/OFF & Dim control of lamps connected
Interoperable with other Z-Wave enabled devices
Acts as a Z-Wave repeater to extend the range of Z-Wave network
Compatible with any incandescent, dimmable CFL and LED bulb
and small appliance
DESCRIPTION
This ZWN-323 Dimming Module is a Z-Wave enabled device and is fully
interoperable with other Z-Wave certified device. In a Z-Wave network, the
ZWN-323 enable you to remotely ON/OFF&Dim control a Z-Wave
controlled outlet for the lamp and a always-on AC outlet for other device.
ZWN-323 also acts as a repeater, retransmitting the RF signal from one
device to another until the intended device is reached. With a horizontal
design, the ZWN-323 plug-in dimming module will not block other nearby
AC outlets.
WARNINGS AND CAUTIONS
To reduce the risk of electric shock, this product has a grounding
type plug that has a third (grounding) pin. This plug will only fit
into a grounding type power outlet. If the plug does not fit into the
outlet, connect a qualified electrician to install the proper outlet.
Do not change the plug in any way.
-01-
ZWN-323
To be installed and/or used in accordance with appropriate electrical codes
and regulations. Exercise extreme caution when using Z-Wave devices to
control appliances. Operation of the Z-Wave device may be in a different
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operation could
possibly result in a hazardous condition.
If you are unsure or uncomfortable about performing the installation, please
consult a qualified electrician.

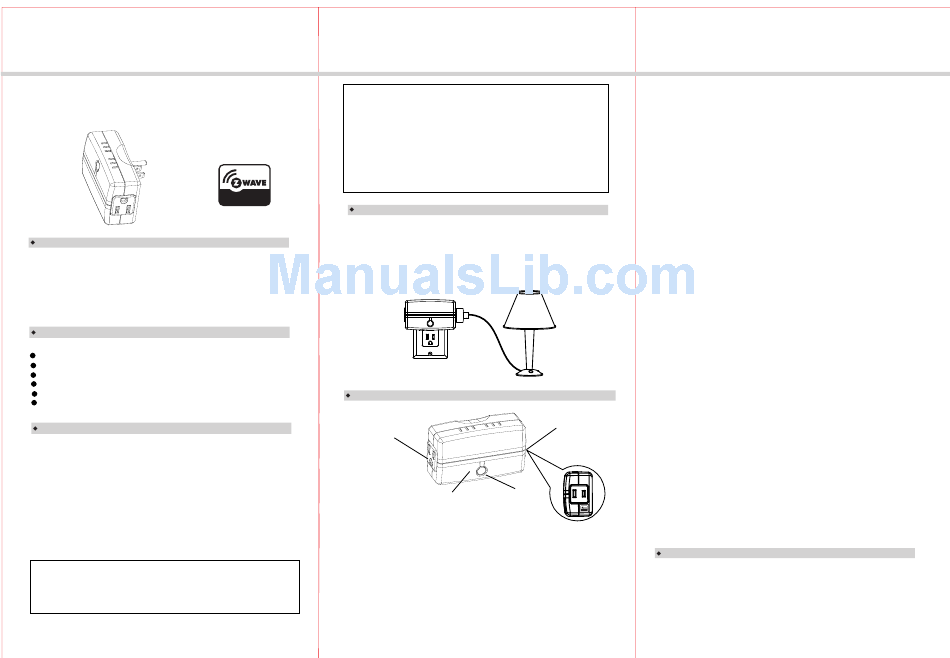

INSTALLATION
1. Plug the ZWN-323 Dimming Module into wall receptacle.
2. Attach the desired appliance into the Z-Wave controlled outlet on ZWN-323
Dimming Module.
3. Turn the knob/ program button on the lamp/ ZWN-323 module to ON position.
OPERATIONS
Standard AC Outlet
Basic Operation
The connected appliance can be turned ON/OFF & Dim in two ways:
1. With a Z-Wave remote.
2. Manually with the program button on the front of the ZWN-323.
Remote Control
Z-Wave remotes provide control of an Individual device, Groups of devices
and Scenes. Please refer to your remote control's instructions for detail on
its capabilities and instructions for adding and controlling devices.
Z-Wave Controlled Outlet
Program Button
Blue LED indicator
-02-
Manual Control
The Program Button on the ZWN-323 Dimming Module allows the user to:
1. Manually turn ON the ZWN-323 Dimming Module, press and release the
5
program button. The blue LED indicator will turn OFF, and the lamp plugged
5
into the ZWN-323 Dimming Module will turn ON.
2. Manually turn OFF the ZWN-323 Dimming Module, press and release the
5
program button. The blue LED indicator will turn ON, and the lamp plugged
5
into the ZWN-323 Dimming Module will turn OFF.
3. Manually adjust the level of the connected lighting, press and hold the
5
program button. Release the button when the desired level is reached.
5
4. When the gateway/remote is in inclusion mode and the blue LED blinks on
the ZWN-323, press the program button to add the ZWN-323 module into
Z-Wave network. The gateway/remote will verify the inclusion, assign a node
ID for the module and the LED will turn OFF on the module. While the gateway/
remote in exclusion mode, press the program button to remove from the current
Z-Wave network, and the LED will blink on the module.
Please Note:
After a power failure, the ZWN-323's Z-Wave controlled outlet
returns to OFF state. A lamp (25 watts minimum incandescent, 6 watts
minimum dimmable LED )
can be controlled through Z-Wave controlled outlet.
Advanced Operation
The following Advanced Operation parameters require that you have an
advanced controller. However, basic remotes do not have this capability.
All On/All Off
Depending upon your primary controller, the ZWN-323 Dimming Module can
be set to respond to ALL ON and ALL OFF commands in up to four different
ways. Some controllers may not be able to change the response from its
default setting. Please refer to your controller's instructions for information
on whether or not it supports the configuration function and if so, how to
change this setting.
The four possible responses are:
- It will respond to ALL-ON and the ALL-OFF command (default).
- It will not respond to ALL-ON or ALL-OFF commands.
- It will respond to the ALL-OFF command but will not respond to the ALL-ON
command.
- It will respond to the ALL-ON command but will not respond to the ALL-OFF
command
WIRELESS RANGE
This device complies with the Z-Wave standard of open-air, line of sight
transmission distances of 100 feet. Actual performance in a home depends
on the numbers of walls between the remote controller and the destination
device, the type of construction and the number of Z-Wave enabled devices
installed in the control network.
-03-
