Enerwave WFRSM1 Wi-Fi Installation Instructions

INSTALLATION INSTRUCTIONS
Wi-Fi
Model: WFRSM1 Wi-Fi
Single Relay Smart
Switch Module
FEATURES
• Control your lights or small appliances with your smart devices without
the need of any hub
• Easy to configure, easy to use free smart App by Enerwave
• Save energy by automating the ON/OFF times or using the timer
• Works with Amazon Alexa, Google Assistant through the Tuya App
• Reduce energy consumption and enjoy wireless home automation with
SPECIFICATIONS
Voltage ..................................................................120-277VAC, 50/60Hz
Resistive ...........................................................................................10A
Motor............................................................................................................1/2HP
Protocol.......................................................................................IEEE 802.1b/g/n
Wireless Type............................................................................................2.4GHz
System Requirements................................Android 4.1 or higher/ iOS 8 or higher
Operating Temperature..........................................................32°-104°F (0°-40°C)
REQUIREMENTS
• Secure 2.4GHz Wi-Fi network connection
• Smart Device such as a Smart Phone or Tablet with an operating system of
Android version 4.1 or higher or iOS 9 or higher
• Installation of the ENERWAVE Smart App on the Smart Device
1
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Switch.
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 8in (20cm) between the radiator & your body.
RF Exposure
A distance of 8in (20cm) shall be maintained between the antenna and users, and
the transmitter module may not co-locate with any other transmitter or antenna.
WIRING DIRECTIONS:
If Hot and Neutral are located in the ceiling box,
then wire the WFRSM1 this way
Ceiling box
Wall box
91150
Switch
2
If Hot and Neutral are located in the wall box,
then wire the WFRSM1 this way

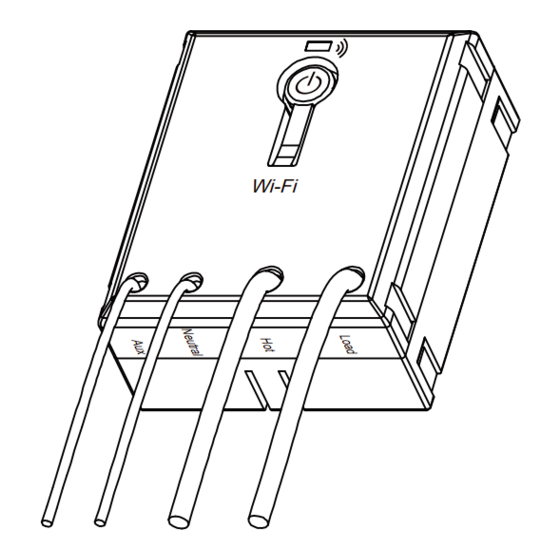

Power/ Program
Button
91150
Switch
Aux
Neutral
Hot
Hot
Neutral
Load
Wall box
Ground
3
