Enerwave ZWN-RSM2 Installation Instructions

INSTALLATION INSTRUCTIONS
ZWN-RSM2
Smart Dual Relay Switch Module
SPECIFICATIONS
Voltage.................................................................................120-277VAC, 50/60Hz
Maximum Load requirement..........................................................................4A+4A
Z-Wave Frequency....................................................................... 908.42MHz(US)
Operating Temperature.......................................................................32° F-104° F
Size.........................................................................................1.77'' ×1.65'' ×0.82''
Range..............................................................Up to 131 feet line of sight between
between the Wireless Controller and the closest Z-Wave receiver module.
FEATURES
Work with existing light switches, required neutral wire
Slim size module with build in Z-Wave technology
Acts as a Z-Wave repeater to extend the range
On/Off control via Z-Wave controller, manual wall switch
3 way wiring compatible
DESCRIPTION
Z-Wave unifies all your home electronics into an integrated wireless network and
helps them talk to each other. Any Z-Wave enabled item can be added to the
network, and making your home electronics fully compatible.
The ZWN-RSM2 Switch Module is a component of lighting control system, it can
not be used separately but should turn an existing switch into a Z-Wave switch.
This ZWN-RSM2 module is a Z-Wave enabled device and is fully compatible
with other Z-Wave certified device from other manufacturers. In a Z-Wave
network, each device is designed to act as a wireless repeater. Once the
ZWN-RSM2 module is installed and setup with in your wall, it will retransmit the
RF signal from one device to another until the intended device to intended device
is reached. This ensures that the signal is received by its intended destination
by routing the signal around obstacles and radio dead spots.
-01-
To be installed and/or used in accordance with appropriate electrical codes and
regulations. Exercise extreme caution when using Z-Wave devices to control
appliances. Operation of the Z-Wave device may be in a different room than the
controlled appliance, also an unintentional activation may occur if the wrong button
on the remote is pressed. Z-Wave devices may automatically be powered on due
to timed event programming. Depending upon the appliance, these unattended or
unintentional operation could possibly result in a hazardous condition. Z-Wave
enabled devices should never be used to supply power to, or control the On/Off
status of medical and/or life support equipment. If you are unsure or uncomfortable
about performing the installation, please consult a qualified electrician.
INSTALLATION

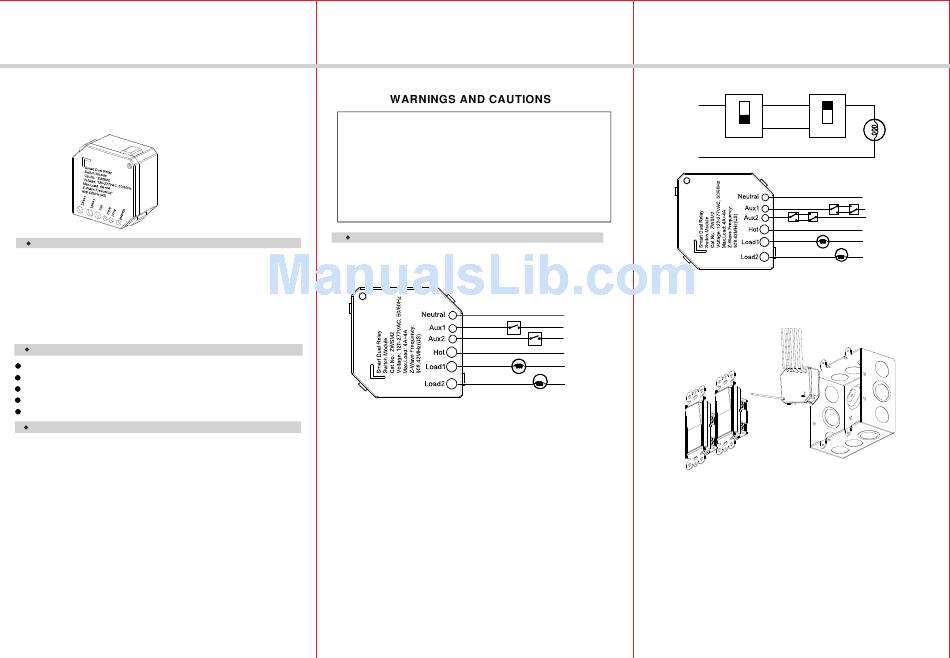

Wiring Diagram:
Neutral
Aux 1
Aux 2
Switch 2
Hot
Load 1
Load 2
IMPORTANT NOTE ABOUT 3-WAY CIRCUITS
The term "3-way circuit" refers to a circuit with two switches and one load (light)
like you find at the top and bottom of a stairway. There are many ways to physically
wire a 3-way circuit and it is important to understand how the circuit you wish to
upgrade to Z-Wave control is wired. Below is a description of a typical 3-way circuit.
One of the ways to wire a two-switch/one-load circuit is to route the incoming power
through the first switch, then to the second switch and then to the load. Although
very common and by no means a standard, it is the easiest to convert to Z-Wave
control.
Technically switch 2 and switch 4 are in the same location, so ZWN-RSM2 is set
behind them. Do not change the wiring of switch 1 and switch 3. Please note that
all the switches must be 3-way switch.
-02-
Typical 3-way circuit :
Black
Please consult an electrician if you have trouble identifying the type of wiring
circuit you wish to convert or if you do not feel confident in your ability to
convert the circuit to Z-Wave control.
Neutral
(White)
Switch 1
Line
Line
Line
(Black)
Neutral
Neutral
1. WARNING: To avoid fire, shock, or death. Turn off power at circuit breaker or
fuse and test that power is off before wiring.
2. Remove wall plate and switches mounting screws.
3. Carefully remove these existing switches from the switch box.
4. Disconnect the wiring from these existing switches.
5. Connect the ZWN-RSM2 module as shown in the wiring diagram.
6. Check connections to be sure they are tight and no bare conductors are exposed.
7. Insert the ZWN-RSM2 module into the box first, then wire these existing switches.
8. Attach the wall plate.
9. Restore power at the circuit breaker and test the system.
Black
Red
Yellow
Switch 1 Switch 2
White
Neutral
Neutral
(White)
Switch 2 Switch 1
Aux 1
Line
Aux 2
Line
Switch 3
Switch 4
Hot Line
(Black)
Load 1
Neutral
Load 2
Neutral
-03-
