Methods for Displaying MultiPort Statistics
Any of the following three methods can be used to view a
device's port statistics.
MultiPort Statistics via WIRED ANALYSIS
Wired Analysis is described beginning on
Tap the Wired Analysis icon
1
On the WIRED ANALYSIS screen, tap a device's button to
2
expand it.
Tap the TOOLS
3
If the OneTouch AT is configured for SNMP access to the device
and MultiPort Statistics are available, the MultiPort Stats but-
ton appears in the tools menu, as shown below.

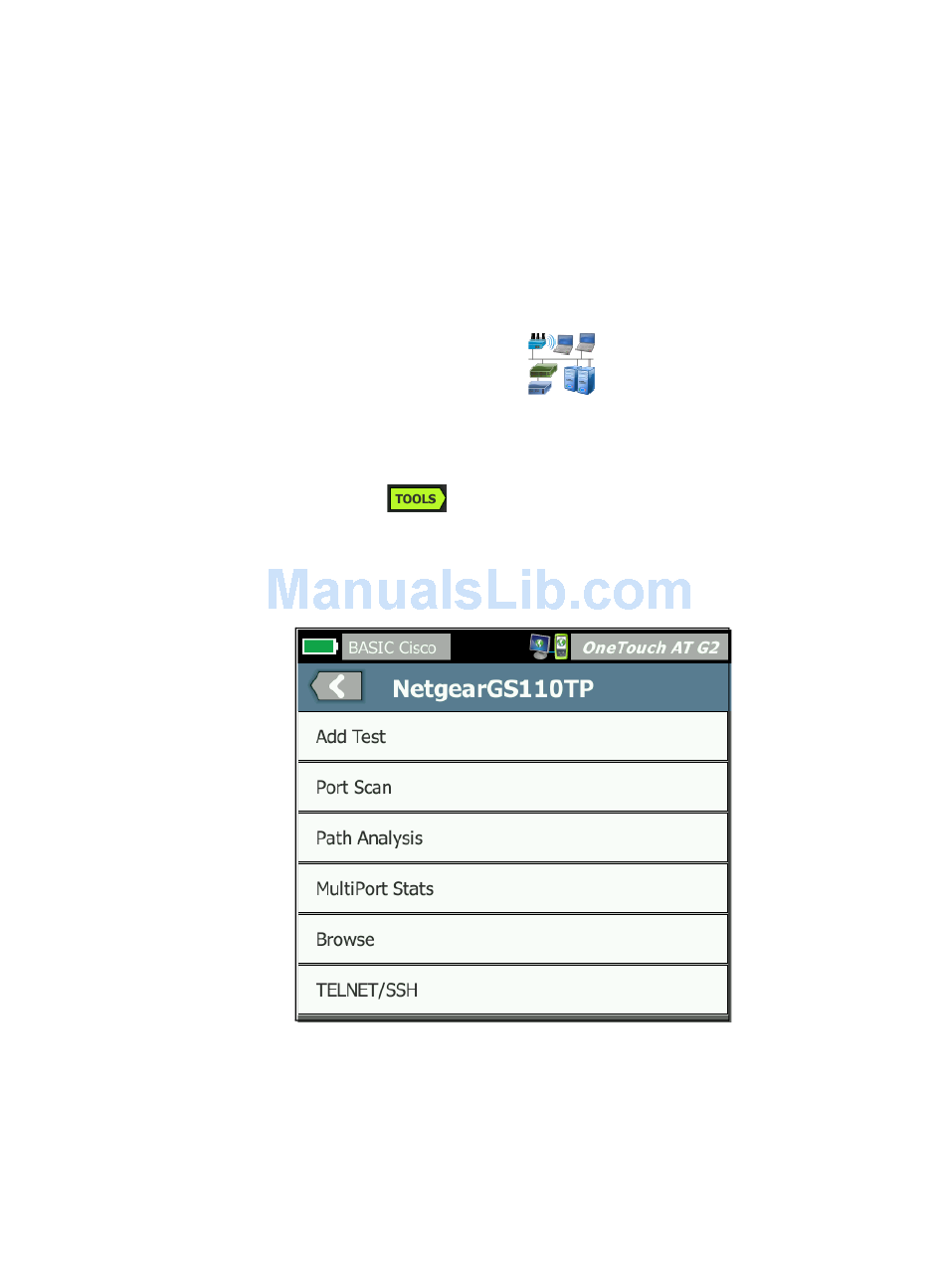

Figure 77. MultiPort Statistics Button on Wired Analysis Tools Menu
4 Tap the MultiPort Stats button to display the device's port
statistics.
on the HOME screen.
button.
Chapter 7: Wired Analysis
page 167.
185
