PowerIng uP
Always make sure levels are turned off before making con-
nections. This will help eliminate turn-on transients that can
harm more sensitive components such as tweeters. You
should also test at low volumes before turning up.
The PZ-DI does not require a battery or power supply to
make it work. It uses 48V phantom from the mixing console.
All you do is plug it in, turn the phantom power on at the
mixing desk and the power LED on the PZ-DI will illuminate
to let you know you are set to go.
LOAD:
Set the load switch to match the type of pickup or instru-
ment you are using.
PAD:
Set to the outward position to start. Depress to engage
the PAD if you detect clipping. High output sources like
digital keyboards and active basses are more likely to
cause clipping.
LO CUT: Start with the control turned fully counter-clockwise to
the OFF (bypass) position.
HI CUT:
Set to the outward position to bypass the high frequency
filter.
Radial Engineering Ltd.
SELECT
1M
10M
220K
LOAD: 1MEG CLASSIC·
4

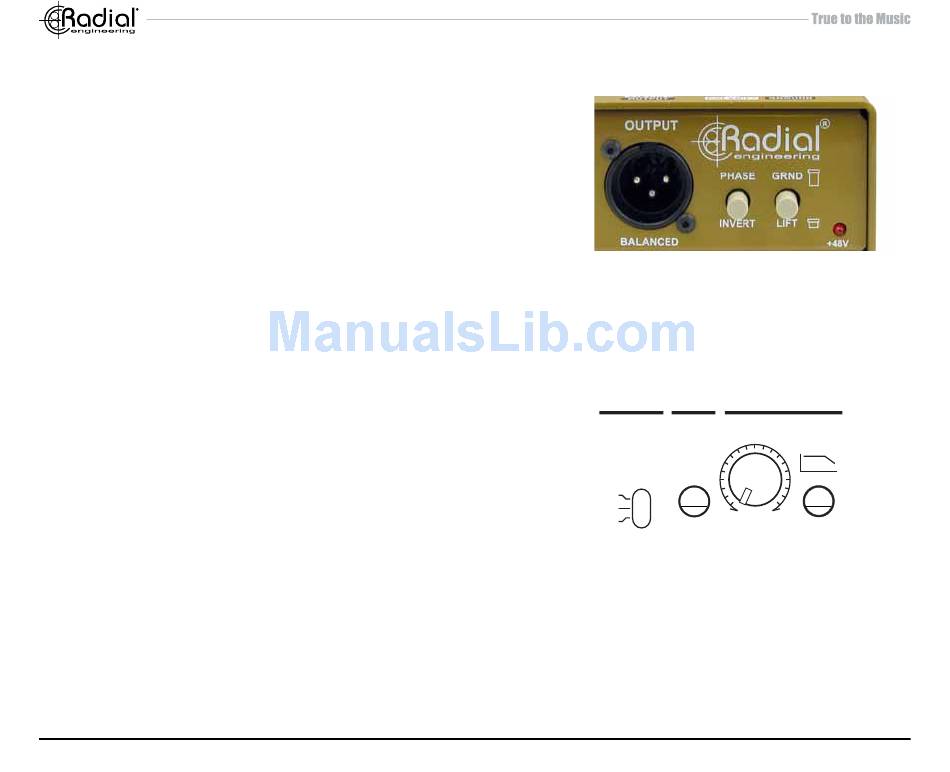

The +48V LED will illuminate when
phantom power is present.
LOAD PAD FILTER
-15dB
ouT
OFF MAX
LO CUT
10M PIEZO 220K MAGNETIC ·
PZ-DI™ User Guide
3kHz
ouT
HI CUT
