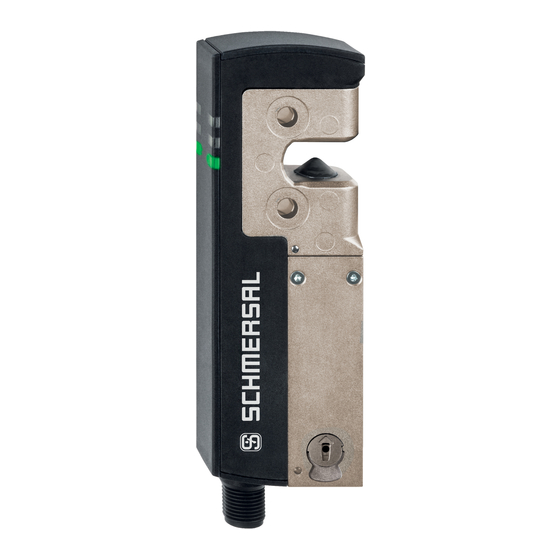

Solenoid interlock

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZM40Z-I2-ST-1P2P-PH-DU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for schmersal AZM40Z-I2-ST-1P2P-PH-DU

  • Page 1: Table Of Contents

    INSTRUKSJONER FOR BRUK OG INSTALLASJON Solenoid interlock AZM40Z-I2-ST-1P2P-PH-DU Table of Contents 1 About this document 1.1 Function 1.2 Target group of the operating instructions: authorised qualified personnel 1.3 Explanation of the symbols used 1.4 Appropriate use 1.5 General safety instructions 1.6 Warning about misuse...
  • Page 2: Target Group Of The Operating Instructions: Authorised Qualified Personnel

    The user must observe the safety instructions in this operating instructions manual, the country specific installation standards as well as all prevailing safety regulations and accident prevention rules. Further technical information can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com.
  • Page 3: Warning About Misuse

    There are no residual risks, provided that the safety instructions as well as the instructions regarding mounting, commissioning, operation and maintenance are observed. 1.6 Warning about misuse In case of inadequate or improper use or manipulations of the component, personal hazards or damage to machinery or plant components cannot be excluded.
  • Page 4: Special Versions

    2.2 Special versions For special versions, which are not listed in the ordering code, these specifications apply accordingly, provided that they correspond to the standard version. 2.3 Purpose The non-contact, electronic safety switchgear is designed for application in safety circuits and is used for monitoring the position and locking of movable safety guards.
  • Page 5 TÜV Data cULus UKCA ANATEL Gobale egenskaper Standard EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3 EN IEC 61508 Generell informasjon Individuelt kodet, multippel innlæring Kodenivå i henhold til ISO 14119 Høy Aktivt prinsipp RFID Frequency band RFID 125 kHz Transmitter output RFID, maximum -6 dB/m Kapslingsmateriale...
  • Page 6 Performance Level, up to Kontrollkategori PFH-verdi 1,10 x 10⁻⁹ /h PFD-verdi 8,90 x 10⁻⁵ Safety Integrity Level (SIL), suitable for applications in Mission time 20 år Klassifisering - forriglingsfunksjon Performance Level, up to Kontrollkategori PFH-verdi 3,00 x 10⁻⁹ /h PFD-verdi 2,40 x 10⁻⁴...
  • Page 7 Length of sensor chain, maximum 30 m Note (length of the sensor chain) Cable length and cross-section change the voltage drop dependiing on the output current Note (series-wiring) Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD Konnektor stikk Konnektor M12, 8-polet, A-kodet Mekaniske data - mål...
  • Page 8 Nødvendig nominell kortslutningsstrøm iht EN 60947-5-1 100 A External wire and device fuse rating 2 A gG Tid til beredskap, maksimum 4 000 ms Brytefrekvens, maksimum 0,25 Hz Utilisation category DC-12 24 VDC / 0,05 A Elektrisk sikringsytelse, maksimum Elektriske data - Solenoidkontroll INN Designation, Magnet control Koblingsterskeler for magnetinnganger -3 V …...
  • Page 9 Current, Utilisation category DC-12 0,25 A Voltage, Utilisation category DC-13 24 VDC Current, Utilisation category DC-13 0,25 A Test pulse interval, typical 1000 ms Test pulse duration, maximum 0,5 ms Classification ZVEI CB24I, Source Classification ZVEI CB24I, Sink Elektriske data - diagnoseutgang Designation, Diagnostic outputs Design of control elements short-circuit proof, p-type...
  • Page 10: Mounting

    This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective.
  • Page 11 For attachment of the solenoid interlock and the actuator, two mounting holes for M5 screws are provided. The M5 screws must be at least strength class 8.8 or, in stainless steel, strength class 80. The tightening torque of the M5 screws is 4 ...
  • Page 12 Actuation direction The actuator can be continuously inserted by 180°. 12-27...
  • Page 13 The actuator must be permanently fitted to the safety guards and protected against displacement by suitable measures (tamperproof screws, gluing, drilling of the screw heads). Authorised actuator and interlock offset Tilt angle Rotating angle     Actuating directions and switch distances The AZM40 can be operated within the following tolerance limits: X axis - 3 mm...
  • Page 14: Manual Release

    The hexagon socket screws must not be completely unscrewed. To avoid any interference inherent to this kind of system and any reduction of the switching distances, please observe the following guidelines: Metal parts and magnetic fields in the area of the solenoid interlock and the actuator can influence the switch distance or lead to malfunctions Keep away from metal chips Minimum distance between AZM40 solenoid interlocks (in mm)
  • Page 15: Dimensions

    For installation and maintenance, the solenoid interlock can be unlocked in a de-energised condition. The solenoid interlock is unlocked by turning the auxiliary release anti-clockwise. The normal locking function is only restored after the manual release has been returned to its original position. Do not turn the manual release beyond the end stop.
  • Page 16 Optional system components Retrofit kit emergency exit/emergency release The retrofit kit is used for subsequent functional expansion of the solenoid interlock.   Designation Ordering code Emergency exit ACC-AZM40-LEV-T 103054265 Emergency release ACC-AZM40-LEV-N 103054268 Emergency exit with pushbutton - for 40 mm profiles ACC-AZM40-PT-T-40MM 103054271 - for profiles up to 170 mm...
  • Page 17: Electrical Connection

    ACC-AZM40-LEV ACC-AZM40-PT       Designation Ordering code Lockout device SZ40 103053182 Universal mounting plate, for 20, 30, 45, 50 MP-AZM40 103045324 and 60 mm profile systems, 2 pcs. Tamper-proof screws M5 x 25, flat head, 2 ACC-NRS-M5X25-FHS-2PCS 103045415 pcs. Tamper-proof screws M5 x 25, countersunk ACC-NRS-M5X25-CSS-2PCS 103045416...
  • Page 18: Requirements For The Connected Safety-Monitoring Module

    1 ms. The safety-monitoring module does not need to have a cross-wire short monitoring function, if necessary, the cross- wire short monitoring function must be disabled. Information for the selection of suitable safety-monitoring modules can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com 4.3 Wiring configuration and connector accessories...
  • Page 19: Wiring Examples

    Pre-wired cables with socket (female) M12, 8-pole - 8 x 0.25 mm², IP67 / IP69 Cable length Ordering code 2.5 m 103011415 5.0 m 103007358 10.0 m 103007359 15.0 m 103011414 Connecting cables (PVC) with socket (female) M12, 8-pole - 8 x 0.21 mm², IP69 Cable length Ordering code 5.0 m...
  • Page 20: Actuator Teaching / Actuator Detection

    Wiring example: Series-wiring AZM40 The voltage is supplied at both safety inputs of the terminal safety component of the chain (considered from the safety-monitoring module). The safety outputs of the first safety component are wired to the safety-monitoring module. Y1 and Y2 = Safety outputs → Safety monitoring module 5 Actuator teaching / actuator detection Solenoid interlocks with standard coding are ready to use upon delivery.
  • Page 21: Active Principle And Diagnostic Functions

    that, an enabling inhibit will be active for ten minutes, thus providing for an increased protection against tampering. The green LED will flash until the expiration of the time of the enabling inhibit and the detection of the new actuator. In case of power failure during the lapse of time, the 10-minutes tampering protection time will restart. 6 Active principle and diagnostic functions 6.1 Magnet control The bistable interlock is released through operational setting of the IN signal (= 24 V).
  • Page 22: Diagnostic Outputs

    System condition No input signal at X1 and/or green yellow Safety guard open and a safety Flashes guard in the safety circuit (1 Hz) upstream is also open Safety guard closed and a Flashes Flashes safety guard in the safety (1 Hz) circuit upstream is open Safety guard locked and a...
  • Page 23 Sequence, locking signal is applied before the door is closed Disrupted process, door could not be locked or error Normal sequence, door was unlocked 23-27...
  • Page 24: Diagnostic Information

    Sequence, door opened immediately after unlocking Disrupted process, door could not be unlocked Lock Unlock Locking time     Door open Safety guard closed          Safety guard not locked or fault Safety guard locked        ...
  • Page 25 Table 1: Diagnostic information of the safety switchgear System Magnet Safety outputs Diagnostic condition control Y1, Y2 output (bistable)     green yellow AZM40Z AZM40B   Door open 24 V Door closed, 24 V Flashes 24 V 24 V not locked Door closed, Flashes Flashes...
  • Page 26: Set-Up And Maintenance

    Table 2: Error messages / flash codes red diagnostic LED Flash codes (red) Designation Autonomous Error cause switch-off after 1 flash pulse Error (warning) at output Y1 30 min Fault in output test or voltage at output Y1, although the output is disabled.
  • Page 27: Disassembly And Disposal

    27-27 Schmersal Nordiska AB, F O Petersons gata 28, S-421 31 Västra Frölunda Data og verdier er kontrollert omhyggelig. Bilder kan avvike fra originalen. Ytterligere tekniske data finner du i manualen. Tekniske modifiseringer og feil kan forkomme. Generert til 06.09.2024, 09:40...
