Dacor HGER30S User Manual

Dacor HGER30S User Manual

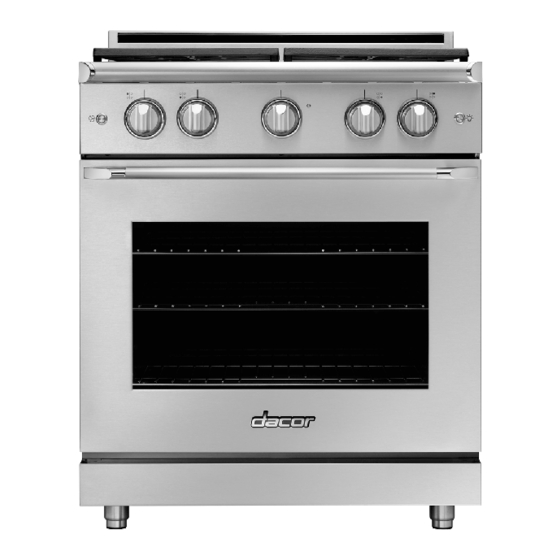

Heritage 30'' gas range

Advertisement

User Manual
Heritage
30" Gas Range
®
Model HGER30S
Tab le o f Con te nts
Important Safety Instructions ....................................................................1
Consignes de Sécurité Importantes ......................................................... 3
Getting to Know the Range ....................................................................... 5
Operating the Range ...................................................................................7
Care and Cleaning ......................................................................................12
Troubleshooting .........................................................................................15
Warranty and Service ................................................................................16
Warranty Card .............................................................................Back Cover
Part No. 113712 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the HGER30S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dacor HGER30S

  • Page 1: Table Of Contents

    User Manual Heritage 30” Gas Range ® Model HGER30S Tab le o f Con te nts Important Safety Instructions ..............1 Consignes de Sécurité Importantes ............3 Getting to Know the Range ............... 5 Operating the Range ...................7 Care and Cleaning ..................12 Troubleshooting ..................15...
  • Page 2 Website: www.dacor.com/customer-care/contact-us Thanks for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor range will deliver a top-level performance and enjoyment for decades to come.
  • Page 3: Important Safety Instructions

    The Important Safety Instructions and warnings in this manual cannot cover all operation/maintenance issues. Use common sense and caution when using the range, and always contact Dacor Cus- tomer Assurance regarding issues you cannot resolve. Safety Symbols and Labels DANGER Immediate hazards that WILL cause severe injury or death.
  • Page 4 Important Safety Instructions General Safety Precautions To reduce risk of fire, electric shock, serious injury, and death in using the range, follow basic safety precautions, including: WARNING WARNING • If you receive a damaged product, immediately contact your dealer or builder. •...
  • Page 5: Consignes De Sécurité Importantes

    Pour les informations de service / garantie, voir la page. 17. Si vous avez des questions sur l’utilisation/la maintenance/la garan- ATTENTION tie, appelez le service clientèle de Dacor. (Voir la couverture intéri- eure pour plus de détails.) Dangers ou pratiques dangereuses qui pourraient entraîner des Lorsque vous appelez, ayez à...
  • Page 6 Consignes de sécurité importantes Précautions générales de sécurité Pour réduire les risques d’incendie, d’électrocution, de blessure grave ou de mort lors de l’utilisation de votre cuisinière, suivez les précautions de sécurité de base, notamment: ATTENTION ATTENTION • Si vous recevez un produit endommagé, contactez immédiatement votre revendeur ou •...
  • Page 7: Getting To Know The Range

    Getting to Know the Range Parts of the Cooktop Burner Locations and Cooktop Features A. 1700 to 15000 BTU standard burner BACKGUARD: The range comes with a 3-in. tall backguard, which B. 800 to 18000 BTU dual burner protects the wall from heat and grease spatter. (A 9-in. backguard C.
  • Page 8 Getting to Know the Range Parts of the Oven Callout Feature Name Description Oven-Door Switch Monitors the self-cleaning cycle to lock/unlock the self-cleaning latch (M). This high-efficiency, infra-red broil burner is the oven’s source of top heat; burner glows orange on and off IR Broil Burner during a broil cycle.
  • Page 9: Operating The Range

    Operating the Range Assembling the Cooktop The burner rings spread the flame evenly around the burner cap. Assemble all burners as instructedfor proper function. 1. Remove all burner components, including grates, from their packaging. 2. Install the burners as shown. Gently twist each part back and forth to ensure proper seating. (A small gap below the burner ring is normal when installed properly.) 3.
  • Page 10 1. Orient the rack with the safety notches toward the oven. risk of scorching the food. • Dacor’s SimmerSear feature lets you precisely control the flame on the SimmerSear burner, from low to high heat. Lighting a Burner Each knob has a small diagram next to it that shows which burner it controls.
  • Page 11 Operating the Range 6. To remove the rack: a. grasp it with both hands, and pull gently until it stops. Rack support b. tip the front up so the front safety clips clear the front of the supports, and pull the rack away from the oven. (Jiggle Slide rack the rack side-to-side as you pull to ease removal.) onto...
  • Page 12 Operating the Range Baking Tips Using Broil Mode WARNING Tips: All Bake Modes In a broil mode, the oven operates as high as 555˚F. • Avoid opening the oven door if possible. Instead, check food • To avoid burn injuries, turn the oven knob to BROIL, immediately through the door window.
  • Page 13 • Follow the standard recipe baking time for pie and yeast bread. Tips: Roasting • Warped, dented, stainless-steel, and tin-coated pans heat • Dacor’s optional roasting pan works very well, and two fit side unevenly, giving inconsistent results. by side in the oven.
  • Page 14: Care And Cleaning

    Use these cleaners very carefully and only occasionally; otherwise, they will damage the finish. Dacor is • Turn the oven off, or self-cleaning will restart when you close the oven door.
  • Page 15 If the flame is uneven, verify proper burner assembly, and check for dirt/grime. If clicking is erratic, ensure the igniter is fully dry. If issues persist, call a Dacor-authorized service agent. Cleaning Porcelain Surfaces The oven chamber, oven-door interior, and spill tray have a porcelain-enamel finish.
  • Page 16 3. With the mounting clips (open-end down) facing the rear wall, • Replace the spent bulb with Dacor Part No. 108774 only; call Dacor push the filter down, hooking the clips onto the horizontal bar.
  • Page 17: Troubleshooting

    Troubleshooting Problem May Be Caused By What to Do Disconnected cord Verify that range is plugged in. Turn on power at circuit-breaker panel or fuse box; check for tripped Nothing works Power is off breaker or blown fuse. Power outage Contact power company.
  • Page 18: Warranty And Service

    Dacor. Should you experience a service issue beyond the standard war- If your Dacor product fails to function within 1 year of the original pur- ranty period, contact us anyway. Dacor reviews each issue and chase date, due to material or manufacturing defect, Dacor will remedy customer concern to provide the best possible solution under the it without charge to you.
  • Page 19 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
  • Page 20 Dacor product, please return all forms in one envelope, or activate the warranty online for each product. Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not...
