Leviton O3C15-IDW Installation Instructions And Owner's Manual

WARNINGS AND CAUTIONS:
For Vacancy Sensors installed to control Emergency Lighting Equipment:
If this equipment is being used for Emergency Lighting and Power Equipment, please adhere to the following information. This equipment
is rated for only 25C if used on Emergency Lighting Equipment. Apply the "Emergency Circuits" label (provided) to the front cover.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b) DO NOT use outdoors.
c) DO NOT mount near gas or electric heaters.
d) Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
e) The use of accessory equipment not recommended by manufacturer may cause an unsafe condition.
f) DO NOT use this equipment for other than the intended use.
SAVE THESE INSTRUCTIONS
All servicing shall be performed by qualified service personnel. If any Emergency Circuits are fed or controlled from this panel, it must be
located electrically where fed from a UPS, generator, or other guaranteed source of power during emergencies and power outage situations.
TOOLS NEEDED TO INSTALL YOUR SENSOR
Slotted/Phillips Screwdriver Small Slotted Screwdriver Cutters
PARTS INCLUDED LIST
Sensor (1) 4" x 4" Mounting Plate (1) #6-32 x 1-1/2" Screw (2)
Mid-Range Lens (1) Emergency Label (1) Half Mask (1)
360˚ Perforated Mask (1) Low Voltage Connector (1) Tubing Barrier (1)
DESCRIPTION
The Line Voltage Vacancy Sensor monitors the space for vacancy. The lights can be turned ON
manually by pressing the low-voltage/momentary toggle switch. The sensor turns the lights OFF
when vacancy is detected and the delayed-off time has expired. The sensor continually analyzes
and adjusts to changing conditions. The sensor uses the latest microprocessor-based technology
which permits it to continually adjust and optimize its performance. The combination of ultrasonic
(doppler shift) motion detection which gives maximum sensitivity and infrared motion detection
which gives higher false triggering immunity yields a sensor with excellent performance.
INSTALLING YOUR VACANCY SENSOR
OFF ON
OFF ON
OFF ON
NOTE: Use check boxes
when Steps are completed. OFF ON
OFF ON
OFF ON
WARNING:
TO AVOID FIRE, SHOCK, OR
Step 1
DEATH; TURN OFF POWER at circuit breaker
or fuse and TEST that power is off before wiring!
Identifying your wiring:
Step 2
1
2
LINE
3
LOAD OUT
L1
L1
1. Line (Hot) - L1
NEUT. N
NC
2. Load - L1
NC 3. Neutral - N
4. Manual Switch +
5. Manual Switch –
6. Emergency Interface +
12VDC CLASS 1 OR 2 (SELV)
7. Emergency Interface –
MAN EMER.
SW INPUT
NC MS + MS – EM + EM –
NC
4 5 6 7
Preparing and connecting wires:
Step 3
3/4"
(1.9 cm)
Cut
(if necessary)
• Make sure that the ends of the wires from the electrical box are straight (cut if necessary).
• Remove insulation from each wire in electrical box as shown.
• Wire per Specifications:
Line, Neutral, Load Wires (Copper)
Wire range: #12-18 AWG, 3.3 - 0.75 mm square - Torque rating: 20 lb-in, 23 kgf-cm.
Control Wires (Manual Switch and Emergency Interface)
Wire range: #16-26 AWG, 4.0 - 0.12 mm square - Torque rating: 2.5 lb-in, 2.88 kgf-cm.
Compatible with electronic and magnetic ballasts, electronic and magnetic low-voltage transformers, incandescent lamps, and fans
Installing your Sensor:
Step 4
}
Wire stripper Load Neutral
Line
LINE
LOAD OUT
L1
L1
NEUT. N
NC
NC
12VDC CLASS 1 OR 2 (SELV)
MAN EMER.
SW INPUT
+ – + –
NC MS MS EM EM
NC
Emergency
Interface
Wiring Sensor
OFF ON
OFF ON
Connect wires per WIRING DIAGRAM as follows:
OFF ON
OFF ON
1. Insert wires into proper terminals. Use a screwdriver to turn terminal screws
OFF ON
OFF ON clockwise and secure wires.
a) Line wire to Line terminal.
b) Neutral wire to Neutral terminal.
c) Load wire to Load terminal.
d) Manual Switch and Emergency Interface to their respective marked terminals.
NOTE: When wiring Manual Switch and Emergency Interface Class 2, use
the provided tubing for insulation inside the junction box.
Mount Sensor in Electrical Box
To mount inside 4" octagon 2.125" deep ceiling electrical box, refer to Figure 1.
• Dress line voltage wires to provide enough clearance in electrical box when
device is installed.
• Partially thread two #8-32 screws (not included) into the mounting holes of the
electrical box.
• Pull out the two coasters that align with the two screws.
• Align sensor so that it fits between the mounting holes of the electrical box and
insert over mounting screws.
• Push in the two coasters that align with the two screws.
• Tighten mounting screws firmly.
Figure 1
Strip Gage
(measure bare
wire here)
Flat light pipe

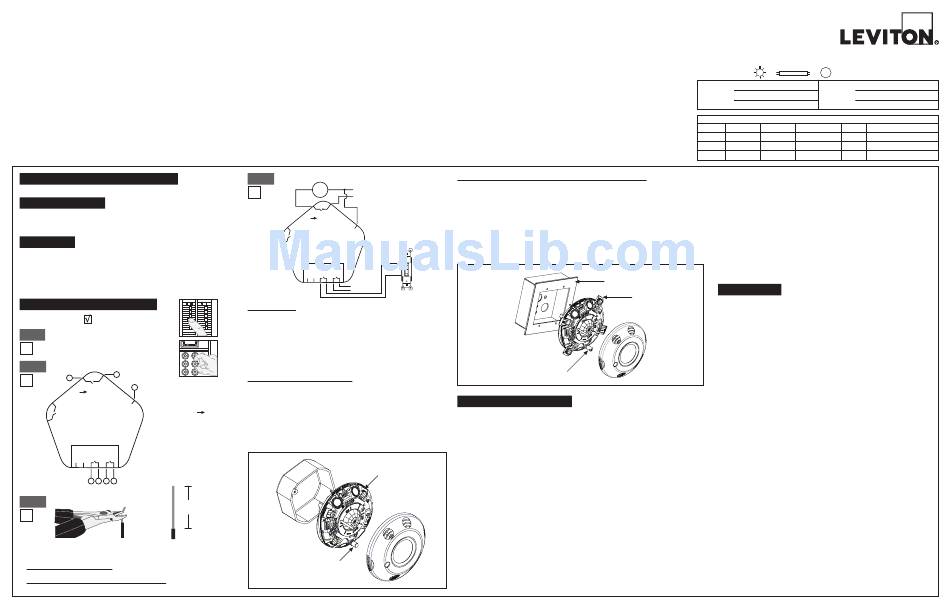

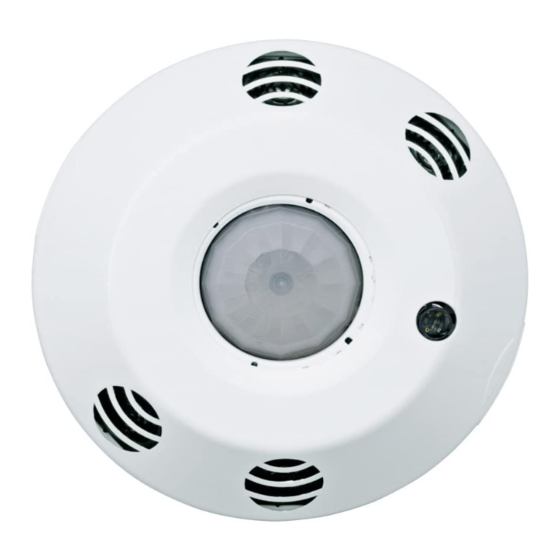

Ceiling Mounted Line Voltage Vacancy Sensor
California Title 20 Compliant
Cat. No. O3C1Ø-MDW, O3C15-IDW, O3C2Ø-MDW
No Minimum Load Required
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND
TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Sensors must be mounted on a vibration free surface.
• Do not terminate using data type wire, such as Cat 5/5E.
• Do not mount sensors closer than 10 feet to each other.
• All sensors must be mounted at least 6 feet away from air vents, air handlers, and reflective surfaces
(windows/mirrors).
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
MOUNT SENSOR IN ELECTRICAL BOX WITH MUD RING
To mount inside 4" square 1.5" deep ceiling electrical box with mud ring, refer to Figure 2 below.
120-277VAC
• Ensure that conduit/cable entry clamp is located in corner of electrical box.
50/60Hz
• Dress line voltage wires to provide enough clearance in electrical box when device is installed.
• Install a two-gang mud ring (not included) on electrical box.
• Partially thread the two #6-32 screws provided into the mounting holes of the electrical box.
• Pull out the two coasters that align with the two screws.
• Align sensor so that it fits between the mounting holes of the electrical box and insert over
mounting screws.
• Push in the two coasters that align with the two screws.
• Tighten mounting screws firmly.
Figure 2
Manual Switch
Light pipe
VACANCY SENSOR OPERATION
Manual switch press will turn the lights ON. The sensor turns the lights OFF when vacancy is
detected and the delayed-off time has expired.
• Delayed-Off time: The sensor is designed to turn the lights OFF if no motion is detected after a
specified time. This length of time is called the delayed-off time and is set using the timer (Black)
knob on the sensor.
• Walk-through Mode: The walk-through feature is useful when a room is momentarily occupied.
The walk-through feature works as follows: When a person enters the room and turns the lights
ON with the manual switch. If the person leaves the room before the default walk-through timeout
of 2.5 minutes, the sensor will turn the lights OFF 2.5 minutes later. If the person stays in the
Coaster room for longer than 2.5 minutes, the sensor will proceed with the standard operation.
• Reset Device State: To reset Auto adapting settings to factory default.
• Manual ON/OFF Switch: Use to turn the lights ON or OFF by pressing the low voltage
momentary/toggle switch. Pressing manual switch will reset the time delayed OFF timer and lights
will turn OFF after the delayed-off timer expires.
• Emergency Interface: This input is intended for use with BMS (Building Management System)
or any contact closure to force the lights ON in case of emergency. Lights will stay ON until
emergency signal is cleared.
• Manual ON: Occupants must press the low voltage switch to turn the load ON. When the
occupancy sensor is the only input keeping the load ON, the load turns OFF when the sensor
time delay expires. If the sensor input re-triggers within 30 seconds after the load turns OFF, the
load turns ON again. After the 30 seconds expires with no sensor input, press the momentary
switch to turn the load ON.
Operating Temperature: 32˚ to 104˚F (0˚ to 40˚C)
Rating: 6A-6AX 250V
8A, Electronic Ballast
120V
800W/VA, Tungsten, Ballast
60Hz
1/4 hp
Cat. No. Description Voltage Range
O3C10-MDW 2-Way Multi-Tech 120-277,50/60Hz
O3C15-IDW Extended Range 120-277,50/60Hz
O3C20-MDW 2-Way Multi-Tech 120-277,50/60Hz
Test Mode: To set the delayed-off time to 4 seconds for performing a walk test. While
the sensor is in test mode, the LED's will flash YELLOW once every second.
1. ENSURE POWER IS ON.
2. Remove front cover.
3. Locate dip switch 3 in Bank B (B3) (refer to Table 2). B3 will be in the OFF position
from the factory.
4. To enter Test mode, move switch to ON. The Test mode has now been entered with
a 4 second time-out. NOTE: If B3 is already in the ON position, then Test mode can
be entered by just moving it to the OFF and then ON position.
NOTES:
1. The timer will remain in the 4 second Test mode for 15 minutes, then automatically
exit Test mode and reset to the delayed-off time setting as defined by the Black timer
knob.
2. To manually take the timer out of the 4 second Test mode, simply move switch B3
back to OFF.
3. Entering Test mode will reset all adapted settings.
4"x 4" Cosmetic adapter
AUTO ADAPTING
Coaster
The Sensor continually analyzes the parameters of the motion detection signal and
adjusts its internal operation to maximize detection of motion while minimizing the
effects of noise (electrical noise, air currents, temperature changes, etc...).
Operation
When the sensor is first installed, the delayed-off time is based on the Time adjustment
settings. While the sensor is in use, the delayed-off time will change, based on how the
sensor adapts to the room conditions. The adapted settings can be reset by moving B3
from OFF to ON to OFF position.
Occupancy Pattern Learning For Delayed-Off Time
The sensor will automatically change the Delayed-Off Time in response to detected
occupancy patterns. The Delayed-Off Time will be decreased if large periods of
vacancy are detected, which will result in energy savings. The Delayed-Off Time will be
increased if false-off conditions are detected.
Occupancy Pattern Learning for the Sensor
The sensor learns the occupancy patterns of a space during the course of a day, for a
seven day period. The sensor will adjust the sensitivity to make it less likely to turn ON
during a historically vacant time period.
PK-93266-10-00-2A-X2
M 720-1440 W/VA 120-240 50Hz
5A, Electronic Ballast
277V
1200VA, Ballast
60Hz
1/3 hp
CATALOG ITEMS
Current Consumption Coverage Suggested Mounting Location
60-30ma 1000 sq. ft. Mount in center of room, 8-12 ft height
60-30ma 1500 sq. ft. Mount in center of room, 8-12 ft height
60-30ma 2000 sq. ft. Mount in center of room, 8-12 ft height
