Leviton ODD24-ID Manual

WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

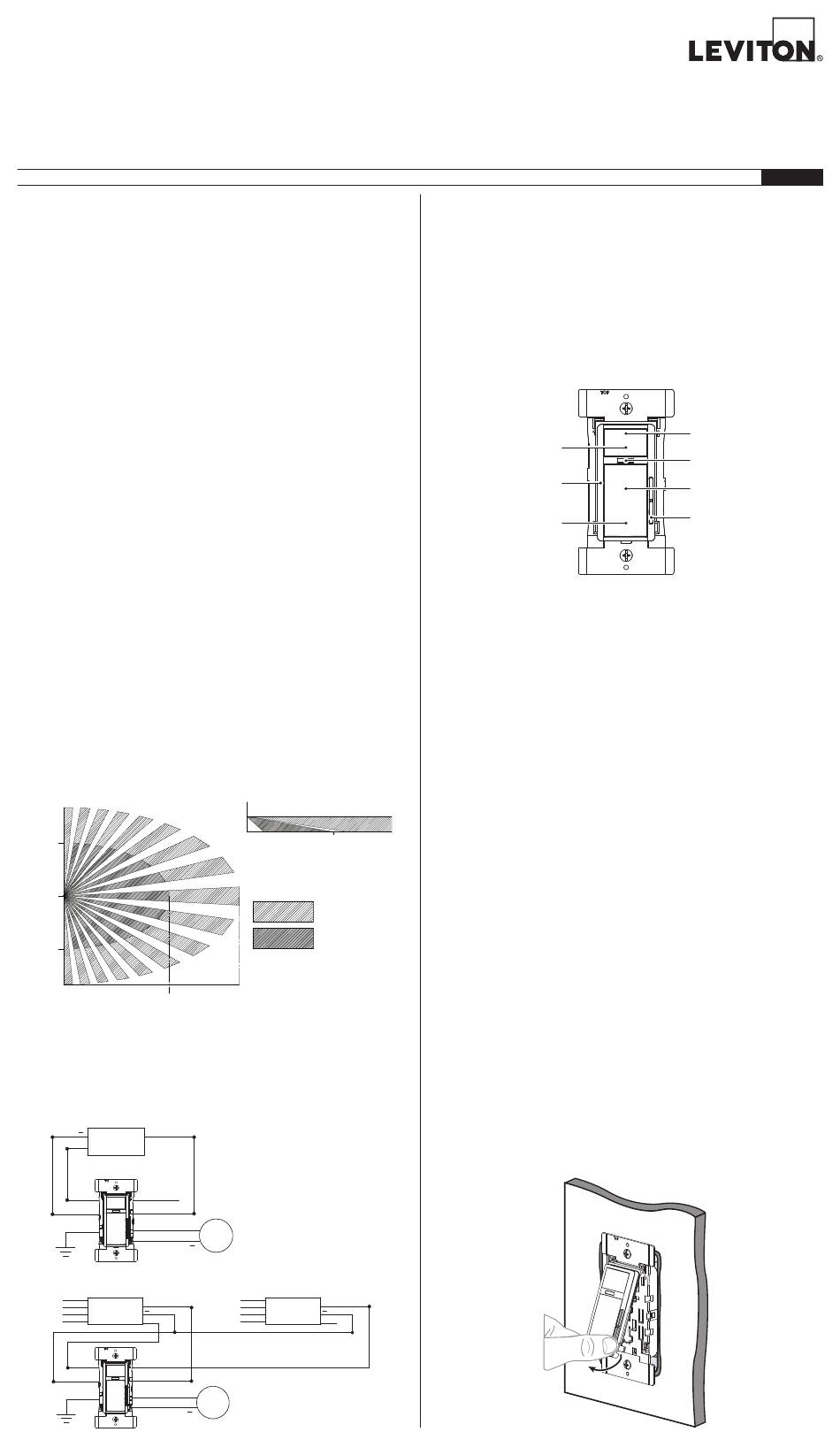

Product Description

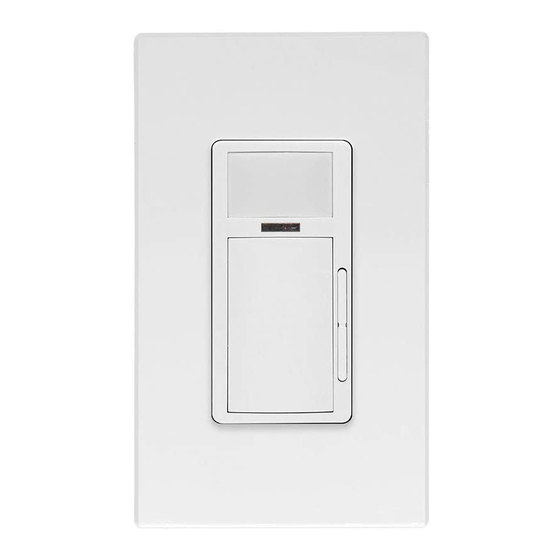

Leviton Cat. No. ODD24-ID, wall switch and dimming Occupancy Sensor is designed
for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
and uses Passive Infrared (PIR) detection technology to monitor a room for occupancy
through a segmented lens. This specialized lens divides the field of view into sensor
zones. When a person passes into or out of a sensor zone, the sensor detects motion
and switches the lights ON. Lighting levels can be manually adjusted using the dimming
bar next to the switch. The lights will remain ON as long as there is an occupant moving
through the sensor zones. ODD24-ID can also be programmed to vacancy mode
(Manual ON/Auto OFF) for installations where Manual ON switching is required for Title
24 applications. The ODD24-ID provides a 180° field of view with a maximum coverage
area of approximately 1100 square feet. The maximum sensing distance in front of the
sensor is 30-40 feet, and 15-20 feet on either side. A "minor motion" zone detects small
body movements and allows the lights to stay ON even though a person may not be
moving or walking around the room. The remainder of the field of view, the "major motion"
zone, exhibits a lesser degree of sensitivity and requires larger movements. Simple
configuration can also be applied using push-button setup for several popular pre-
configured options. ODD24-ID is also equipped with a photocell for daylighting which is
programmable using the Leviton Smart Sensor App.
Before Installation
• Installs into standard single gang wall boxes.
• Supports multi-gang installations.
• Ivory, light almond, black, red, and gray faceplates are available with a color change kit
(sold separately).
• Decora ® wallplate not included.
• Refer to wiring diagram of low voltage source (OPP20 / OSA20).
FOR OPTIMAL PERFORMANCE:
The ODD24-ID sensor lens establishes dozens of zones of detection. The sensor is
sensitive to the heat emitted by the human body. In order to trigger the sensor, the source
of heat must move from one zone of detection to another. The device is most effective in
sensing motion across its field of view, and less effective sensing motion towards or away
from its field of view. Keep this in mind when selecting the installation location. Note that
occupancy sensors respond to rapid changes in temperature, so care should be taken NOT
to mount the device near a climate control source (i.e., radiators, air exchanges, and air
conditioners). Hot or cold drafts will look like body motion to the device and will trigger it if
the unit is mounted too close. It is recommended to mount the occupancy sensor at least
6 ft away from a climate control source. In addition, it is also recommended NOT to mount
the occupancy sensor directly under a large light source. Large wattage bulbs (greater than
100W incandescent) give off a lot of heat and switching the bulb causes a temperature
change that can be detected by the device. Mount the occupancy sensor at least 6 ft away
from large bulbs. If it necessary to mount the device closer, lower the wattage of the bulb
directly overhead.
0-10V CONTROL WIRING INSTRUCTIONS
For 0-10V control wiring: connect the Violet wire to the + 0-10V line and the Gray wire
to the 0-10V common using Class 1 or Class 2 wiring methods as indicated in these
instructions, ballast/fixture/driver instructions or ballast/fixture/driver label markings.
Observe all requirements of any authority having jurisdiction with respect to wire type,
sleeving, isolation methods, and the like. Separation must be provided if Class 2 circuit is
installed together with Class 1, refer to NEC code for allowable methods and specifications.
Horizontal Beam Diagram
15-20 ft
4.6-6.1 m
10 ft
3 m
0
10 ft
3 m
15-20 ft
4.6-6.1 m
20 ft
6.1 m
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit
breaker or fuse and test that power is off before wiring!
1.
Strip wires 3/4 in and connect as per wiring diagram. Ensure wires are firmly
attached and there is no exposed copper.

WIRING DIAGRAMS

FOR LIGHTING LOADS:
Occupancy
24V + Power Pack
Red
Blue
(not connected)
Black Orange
Violet
0-10V
Gray
Green
Ground
FOR LIGHTING AND PLUG LOAD CONTROL:
To Lighting Load
Black (Line)
Occupancy
White(Neutral)
Power Pack
Blue (Line)
+ 24V
Blue (Load)
Red
Blue
Black Orange
Violet
0-10V
Gray
Green
Ground
Smart Wallbox Sensors:

INSTALLATION INSTRUCTIONS

Vertical Beam Diagram
40-48 ft
12.2-14.6 m
20 ft
6.1 m
Major motion coverage
1100 ft^2 (102m^2)
Minor motion coverage
400 ft^2 (37.2m^2)
30-40 ft
9.1-12.2m
+
Dimming
Lighting
Load
To Plug Load
Black (Line)
Occupancy
White(Neutral)
Power Pack
Blue (Line)
+ 24V
Blue (Load)
+
Dimming
Lighting
Load
24V with 0-10V Dimming Control
Cat. No. ODD24-ID
CAUTION
• For indoor applications only.
SAVE THESE INSTRUCTIONS.
2.
Gently place the wires and your device into the wall box and attach with
screws provided.
3.
If desired, change switch color.
4.
Restore power and test ON/OFF operation. Locator light should be ON when switch is
in the OFF state.
5.
Install Decora wallplate (not included).
6.
ODD24-ID is designed to work and be fully functional right out of the box, settings can
be adjusted using the Leviton Smart Sensor App or simple push
button programming.
7.
Using the Leviton Smart Sensor App or push button programming, you can now
configure the sensor to your preferred settings. (Leviton Smart Sensor App,
downloadable from Google Play™ or the Apple App Store®, using any Bluetooth™
enabled Android™ or iOS Device). Operating mode, sensor sensitivity, and sensor
timeout can be quickly adjusted. For more advanced settings such as daylighting and
nightlight configuration, the Leviton Smart Sensor App will need to be used for setup
and adjustments.
PIR Lens and
Nightlight
Dimming Level
Indicator
Programming:
can be performed
by pressing button
(per install instructions)

Operation

PUSH-BUTTON: ODD24-ID has a push-button switch that will toggle the lights ON or
OFF. When mode is set to Auto ON / Auto OFF, the lights will automatically turn ON
when occupancy is detected and will turn OFF automatically after occupancy is no longer
detected and the timeout has expired. If mode is set to Manual ON / Auto OFF, the lights will
only turn ON when the push button switch is pressed; the lights will turn OFF automatically
after occupancy is no longer detected and the timeout has expired. If the lights are ON, the
lights can be turned OFF when the button is pressed. The lights will stay OFF (regardless of
motion detected) until the timeout expires. After the timeout expires, the lights will turn ON
when the next motion is detected. This is useful for slide or film presentations. When using
a separate power pack for plug load control, the lights can be turned OFF and the plug load
receptacles will remain "live" until occupancy is no longer detected.
DIMMING BAR: The lights can manually be dimmed up or down by pressing the dimming
bar. To dim the lights down, press DOWN on the dimming bar and press UP to increase
the brightness.
NOTES:
• The Motion Indicator light will blink RED for 1 second each time motion is detected.
• In Manual On mode, the button must be pressed to turn the lights ON. In the absence of
motion, the unit will time out and turn the lights OFF.

Configuration and Programming

30-40 ft
9.1-12.2m
1.
The ODD24-ID Sensor is designed to work out of the box in default settings. Changes
to these settings and additional product configuration can be performed using the
Leviton Smart Sensor App, downloadable from Google Play™ or the Apple App Store
using any Bluetooth™ enabled Android™ or iOS Device.
a. To pair to device using the Leviton Smart Sensor App:
i. Press and hold the ON/OFF button for 2-5 seconds; when the light behind the
PIR lens blinks BLUE, release the button.
ii. Open the Leviton Smart Sensor App and connect to the device.
iii. The device can also be found by scanning for nearby devices; devices can be
identified in the app to confirm you are connected to the right sensor.
b. Use the Leviton Smart Sensor App to:
i. Set operating mode to Auto ON / Auto OFF (default) or Manual ON / Auto OFF.
ii. Adjust the sensitivity of the sensor to increase or decrease Field of view
coverage area pending the room size (100% for larger spaces approaching
1100 sq ft).
iii. Adjust timeouts (amount of time lights/load will turn OFF after occupancy is no
longer detected).
iv. Activate the night light and its operating mode; selection of custom night
light color.
v. Dimming configuration including partial ON and partial OFF levels and timeouts.
vi. Add daylighting and select target levels for daylighting.
vii. Set a security code to lock configuration.
viii. See Leviton Smart Sensor App for additional settings and other
programming options.
2.
If the installer does not have access to a Bluetooth enabled Android or iOS Device,
popular preset product configuration can also be made using simple push
button commands:
a. If wall plate is attached, remove first. With the wallplate removed, pinch sides of
sensor near bottom tabs to release front cover of sensor.
DI-000-ODD24-02A-X8
(Sold separately.)
Motion Indicator
Light
Photocell and
Locator Light
ON/OFF
Button
Dimming Bar
